Aruba 1820 24G Switch (J9980A)
Basic Gigabit smart managed with intuitive web-based GUI

Aruba 1820 Series

Looking for a better price? Call our Sales team today - 844-356-5141 or click here to request a quote.

Sorry, this unit has been discontinued and is no longer available for purchase, the recommended replacement product is - Aruba Instant On 1830 24G 2SFP Switch #JL812A.

End of Sale (EOS) : 7-Mar-2022 - EOS dates are dependent upon the continued availability of stock, we strongly encourage customers to transition new orders to the replacement product that is identified.

End of Support (EOST): N/A - After this date, all support services for the product are unavailable, and the product reaches End of Life.

Please Contact Us for stock availability, placing orders and/or better pricing.

Click here to jump to more pricing!

Overview

Features and Benefits

Specifications

Documentation

Overview:

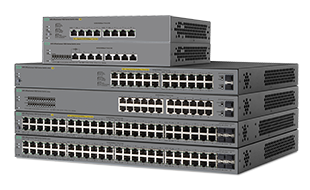

HPE OfficeConnect 1820 Switch Series devices are basic, smart-managed, fixed-configuration Gigabit Ethernet Layer 2 switches designed for small businesses looking for key features in an easy-to-administer solution.

The series is part of the OfficeConnect portfolio of Hewlett Packard Enterprise small business networking products.

The series consists of six switches including 8-, 24- and 48-port Gigabit Ethernet switches and 8-, 24-, and 48-port Gigabit PoE+ models each providing non-blocking Gigabit per port performance. Some models include SFP ports for fiber connectivity and the 8-, 24-, and 48-port non PoE+ models are fanless, making them ideal for office deployments. All HPE OfficeConnect 1820 Switches support flexible installation options, including mounting on wall, under table, or on desktop. The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.

These Gigabit switches are plug-and-play out of the box, yet network operation can be fine-tuned through features available from a simple Web browser-based GUI, if necessary. Customizable features include VLANs, Rapid Spanning Tree, IGMP Snooping, link aggregation trunking, and DSCP QoS policies. All models include the latest energy-saving capabilities, including Energy Efficient Ethernet (EEE) and idle-port power down.

Key Features

Customized operation using intuitive Web interface
Flexible deployment options including wall, under table, and desktop mounting
24- and 48-port models include SFP ports
8-, 24- and 48-port non-PoE+ models are fanless for quiet operation
Limited Lifetime Warranty

Features and Benefits:

Easy-to-Use, Simple to Deploy and Manage

The HPE 1820 Switch Series features an intuitive Web management interface with an enhanced navigation pane for easy management of devices by non-technical users. The HPE 1820 Switch Series is ideal for organizations that require simplicity.

The series gives you flexibility and choice with a complete portfolio. You get six rack-mountable models including three non-Power over Ethernet (PoE) models. Some models include SFP ports for fiber connectivity.

Customizable features include VLANs, Spanning Tree, Link aggregation trunking, and IGMP Snooping. All models include Rapid Spanning Tree Protocol (RSTP) and DSCP QoS policies.

These switches support flexible installation options, including mounting on walls, under tables or on desk tops.

Some models are of a fan-less design, making them quiet for office deployments.

Energy Efficiency and Lower TCO

The HPE 1820 Switch Series include the latest energy-savings capabilities, including Energy Efficient Ethernet (IEEE), idle-port power down and PoE Port Scheduler.

The 8-port Gigabit Ethernet model can be powered by an upstream PoE switch for environments where no line power is available.

All switches are covered by a Limited Lifetime Warranty.

Quality of Service (QoS)

The HPE 1820 Switch Series traffic prioritization provides time sensitive packets (like VoIP and video) with priority over other traffic based on DSCP or IEEE 802.1p classification. Packets are mapped to eight hardware queues for more effective throughput.

Broadcast control allows limiting of broadcast traffic rate, to reduce unwanted network broadcast traffic.

IEEE 802.11p/Q delivers data to devices based on the priority and type of traffic.

Specifications:

Product Dimensions (metric)	44.25 x 24.61 x 4.39 cm
Power Consumption	22 W (maximum)
Switching Capacity	52 Gbps
Product Differentiator (long)	Basic smart managed 26-port Gigabit switch, with 24 GE and 2 SFP ports. This model has 24x 10/100/1000 ports and 2x non-combo 1000/100 SFP ports for fiber connectivity.
Routing/switching Capacity	104 Gbps maximum, depending on configuration
Weight	2.72 kg
Mangement Features	Web browser
Throughput	up to 38.6 Mpps
Input Voltage	100 - 127 / 200 - 240 VAC, rated

Documentation:

Aruba 1820 Series Datasheet (.PDF)
