Aruba 7205 Mobility Controller
High performance for the small campus

Overview:

The Aruba 7200 series Mobility Controller is the next-generation networking platform, optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi.

With a new central processor that employs up to eight cores with four threads each, it’s like having a total of 32 virtual CPUs. As a result, the 7200 series supports up to 32,000 mobile devices and performs stateful firewall policy enforcement at 40 Gbps – plenty of capacity and speed for BYOD and 802.11ac devices.

New levels of visibility are provided by Aruba’s unique AppRF technology, which runs on 7200 series Mobility Controllers. With AppRF, IT can see applications by user, including top web-based applications like Facebook and Box.

The 7200 series also manages authentication, encryption, VPN connections, IPv4 and IPv6 Layer 3 services, the Aruba Policy Enforcement Firewall, Aruba Adaptive Radio Management, and Aruba RFProtect spectrum analysis and wireless intrusion protection. Clustering and centralized management enable the deployment of large networks with hundreds of Mobility Controllers with minimal staff. A master Mobility Controller can manage local Mobility Controllers, while Aruba AirWave network management provides enterprise-wide clarity and control through real-time monitoring, historical reporting and troubleshooting.

Architected for High Availability

The 7200 series includes a number of features that make it ideal for deployment in customer locations that require maximum availability:

• Hot-swappable redundant power supplies: The 7210/7220/7240/7240XM supports dual, field-replaceable redundant power supplies to maintain uninterrupted network operations.
• Hot-swappable fan tray with multiple fans: The 7210/7220/7240/7240XM includes a field-replaceable fan tray with multiple fans, providing sufficient cooling and rapid time to repair.
• The 7210/7220/7240/7240XM support two dual-media ports: 1000BASE-X or 10/100/1000BASE-T connections for high availability.

Specifications:

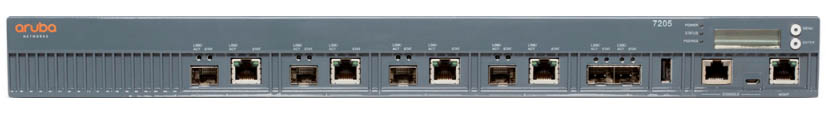

Front View

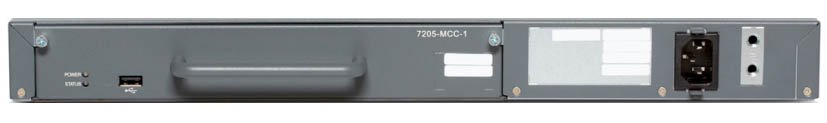

Back View

Features	7205	7210	7220	7240/7240XM
Performance and Capacity
Maximum APs (licenses)	256	512	1,024	2,048
Maximum RAPs	256	512	1,024	2,048
Maximum concurrent devices	8,192	16,384	24,576	32,768
VLANs	2,048	4,094	4,094	4,094
Concurrent GRE Tunnels (System BSSIDs)	8,192	8,192	16,384	32,768
Concurrent Tunneled Ports	4,096	8,192	12,288	16,384
Concurrent IPSec Sessions	4,096	16,384	24,576	32,768
Concurrent SSL Fallback Sessions	4,096	8,192	8,192	8,192
Active Firewall Sessions (Concurrent sessions)	1,000,000	2,015,291	2,015,291	2,015,291
Wired Throughput (large packets)	12 Gbps	20 Gbps	40 Gbps	40 Gbps
Interfaces and Indicators
Interfaces and Indicators	Two 10GBASE-X and four dual-media (1000BASE-X or 10/100/1000BASE-T) ports One USB 2.0 Console (RS-232) RJ-45 or mini-USB LINK/ACT and status LEDs Management/status LEDs LCD panel and navigation buttons Expansion slot (reserved for future use)	Four 10GBASE-X (SFP+) ports One USB 2.0 Console (RS-232) RJ-45 or mini-USB LINK/ACT and status LEDs Management/status LEDs LCD panel and navigation buttons Expansion slot (reserved for future use)
Physical Characteristics
Dimensions	(H) 4.4 cm x (W) 33.4 cm x (D) 44.2 cm (1.75” x 13.13” x 17.38”)	(H) 4.4 cm x (W) 44.5 cm x (D) 44.5 cm (1.75” x 17.5” x 17.5”)	(H) 4.4 cm x (W) 44.5 cm x (D) 44.5 cm (1.75” x 17.5” x 17.5”)	(H) 4.4 cm x (W) 44.5 cm x (D) 44.5 cm (1.75” x 17.5” x 17.5”)
Weight	4.95 kg (10.19 lbs)	4.95 kg (10.19 lbs)	4.95 kg (10.19 lbs)	4.95 kg (10.19 lbs)
Environmental
Operating temperature range	0° C to 40° C
Operating humidity	5% to 95% non-condensing
Storage temperature range	-40° C to 70° C
Storage humidity	5% to 95%, non-condensing
Operating altitude	10,000 feet
Acoustic noise1 (with AC power supply)	49.0 dBA	46.9 dBA	46.9 dBA	54.7 dBA
Power Supply Specifications
350-watt AC power supply	AC input voltage: 100 VAC to 240 VAC AC input current: 5-2.5A AC input frequency: 50-60 Hz Weight: 2.8 lbs (1.3 kg)
Maximum power consumption	75.2 watts	110 watts	125 watts	165 watts
Regulatory & Safety Compliance
Regulatory and Safety Compliance	FCC Part 15 Class A CE Industry Canada Class A VCCI Class A (Japan) EN 55022 Class A (CISPR 22 Class A), EN 61000-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4- 6, EN 61000-4-8, EN 61000-4-11, EN 55024, AS/NZS 3548 UL 60950, EN60950 CAN/CSA 22.2 #60950 CE mark, cTUVus, CB, C-tick, Anatel, NOM, MIC
Regulatory SKU Information	7210: ARCN0100 7220: ARCN0101 7240/7240XM: ARCN0102 7205: ARCN7205
Minimum ArubaOS Release	7210: 6.2.0.0 7220: 6.2.0.0 7240: 6.2.0.0 7240XM: 6.4.4.0 7205: 6.4.3.0
Warranty	Hardware: 1 year parts/labor* Software: 90 days*

* Extended with support contract
¹ Sound power per ETSI 300 753 in accordance with ISO 7779
