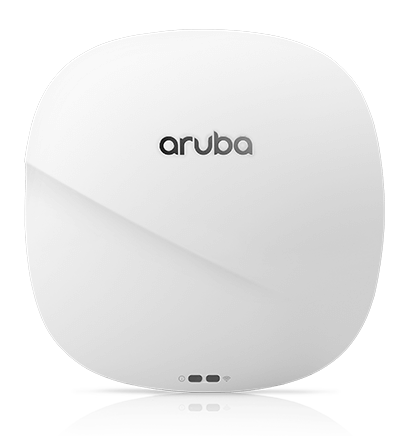

Aruba AP-344 Access Point
Extreme performance 802.11ac Wave 2 APs with dual-5 GHz and multi-gig Ethernet support

Aruba AP-344 Access Point

Sorry, this unit has been discontinued and is no longer available for purchase, the recommended replacement product is - Aruba AP-534 (US) Unified AP #JZ332A.

End of Sale (EOS) : 31-Oct-2022 - EOS dates are dependent upon the continued availability of stock, we strongly encourage customers to transition new orders to the replacement product that is identified.

End of Support (EOST): 31-Oct-2027 - After this date, all support services for the product are unavailable, and the product reaches End of Life.

Please Contact Us for stock availability, placing orders and/or better pricing.

Click here to jump to more pricing!

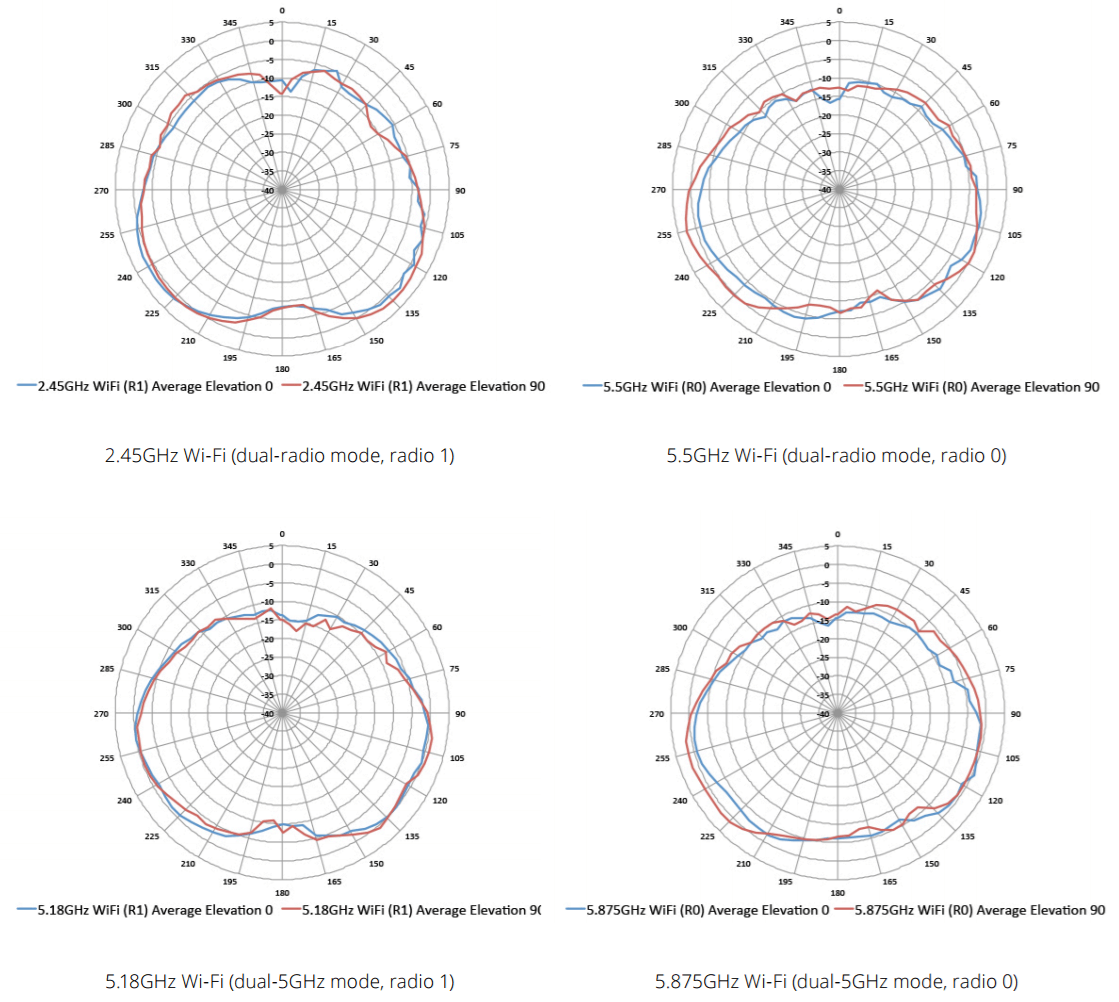

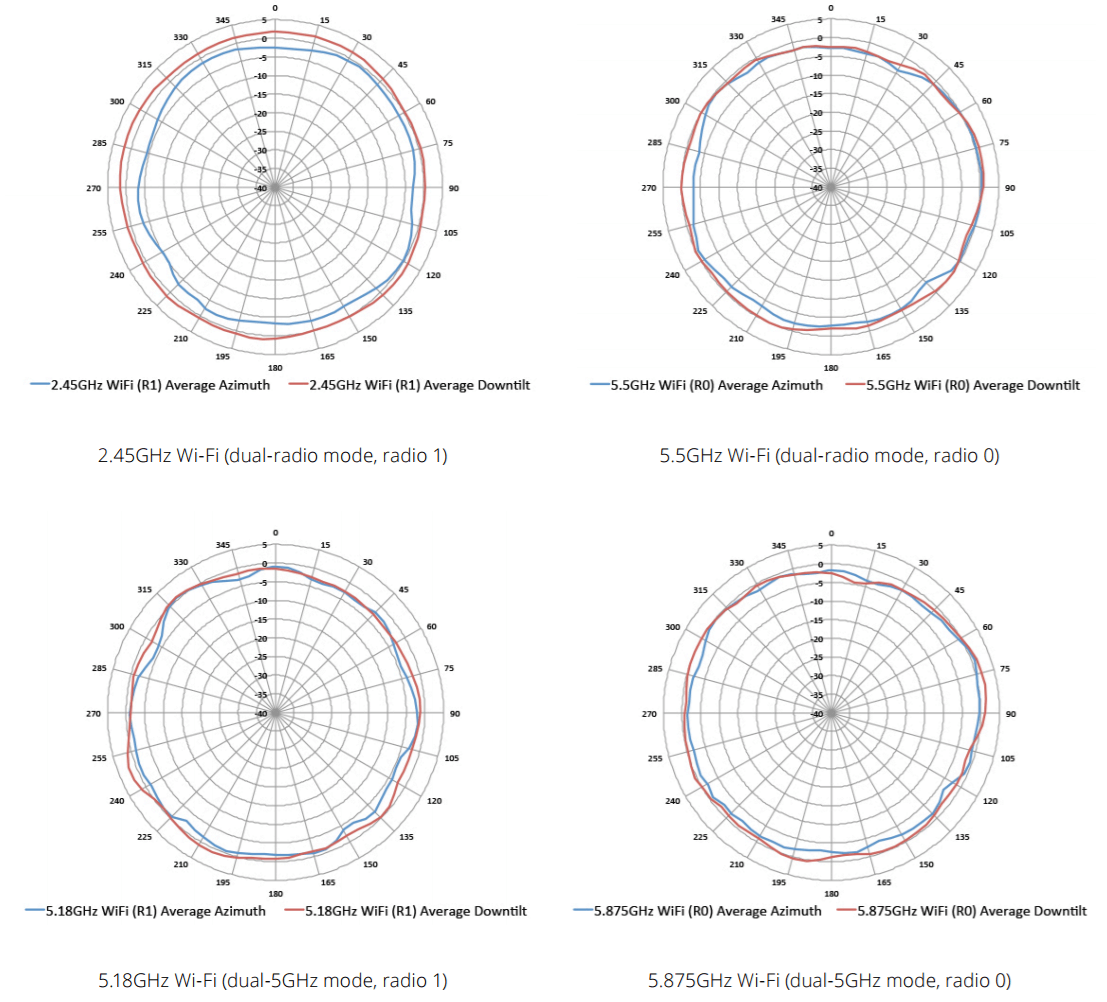

Antenna Pattern Plots

Documentation

Overview:

The Aruba 340 series access points provide the fastest 802.11ac gigabit data speeds and superb user experience for mobile devices and applications in a digital workplace. Designed with an integrated, 802.3bz Compliant, HPE SmartRate multi-gig Ethernet port to eliminate wired bottlenecks, these APs offer unmatched wireless performance and capacity. The unique and flexible dual-5 GHz architecture of the 340 series offers a way to double 5 GHz capacity where needed, without compromise or restrictions.

Thanks to Aruba’s advanced ClientMatch technology, the 340 series can automatically detect and classify 802.11ac Wave 2 capable mobile devices. This allows ClientMatch to automatically group Wave 2 capable devices onto a single Wave 2 radio so that performance benefits of multi-user MIMO can be realized — without the adverse effects of slower 802.11ac and traditional 802.11n capable mobile devices. This means increased network capacity and a boost in network efficiency.

With maximum data rates of 2,166 Mbps in the 5 GHz band1 and 800 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 3.0 Gbps in dual-band mode and 4.3 Gbps in dual-5 GHz mode), the 340 series APs deliver a best-in-class, next-generation 802.11ac Wi-Fi infrastructure that is ideal for lecture halls, auditoriums, public venues, and high-density office environments.

These high performance and high density 340 Series 802.11ac access points support up to 160 MHz channel bandwidth (VHT160), and 4 spatial streams (4SS) for both SU- and MU-MIMO communications.

The 340 series APs have an integrated Bluetooth Low- Energy (BLE) radio, which can be used as an Aruba beacon for advanced location, indoor wayfinding, and to enable proximity-based push notification services. The integrated beacon radio also enables the remote management of battery-powered and other standalone beacons in a large- scale network of Aruba beacons. It enables businesses to leverage mobility context to develop applications that can deliver an enhanced user experience and increase the value of the wireless network for organizations.

CHOOSE YOUR DEPLOYMENT AND OPERATING MODES

The Aruba 340 Series APs offer a choice of deployment and operating modes to meet your unique management and deployment requirements:

The 340 Series AP is a unified AP that supports both controller-based and controller-less deployment modes, providing maximum flexibility.
Controller-based mode – When deployed in conjunction with an Aruba Mobility Controller, Aruba 340 Series APs offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding.
Controller-less (Instant) mode – The controller function is virtualized in a cluster of APs in Instant mode. As the network grows and/or requirements change, Instant deployments can easily migrate to controller-based mode.
Remote AP (RAP) mode for branch deployments
Air monitor (AM) for wireless IDS, rogue detection and containment
Spectrum analyzer (SA), dedicated or hybrid, for identifying sources of RF interference
Secure enterprise mesh portal or point

For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, the Instant APs are factory-shipped to any site and configure themselves when powered up.

Benefits:

Unified AP – deploy with or without controller

The 340 Series APs can be deployed in either controller- based (ArubaOS) or controllerless (InstantOS) deployment mode

Dual Radio 4x4 802.11ac access point with Multi-User MIMO (wave 2)

Supports up to 2,166 Mbps per radio in the 5 GHz band (with 4SS/VHT80 or 2SS/VHT160 clients) and up to 800 Mbps in the 2.4 GHz band (with 4SS/VHT40 clients)
Antenna polarization diversity (fixed) for optimized RF performance

Optional dual-5 GHz mode supported, where the 2.4 GHz radio is converted to a second 5 GHz radio

Both 5 GHz radios providing full coverage, doubling the performance and capacity
Unlike competitive solutions, the 340 Series is designed to isolate the two 5 GHz transmitters for higher performance
Conversion can be manual/fixed, or automatic and dynamic (software controlled, under-the hood), based on system-wide capacity and load in both bands

HPE SmartRate uplink Ethernet port (E0)

Supports up to 2.5 Gbps with NBase-T and IEEE 802.3bz Ethernet compatibility
Backwards compatible with 100/1000Base-T

Hitless PoE failover between both Ethernet ports

Built-in Bluetooth Low-Energy (BLE) radio

Enables location-based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time
Enables asset tracking when used with Aruba Asset Tags

Advanced Cellular Coexistence (ACC)

Minimizes interference from 3G/4G cellular networks, distributed antenna systems and commercial small cell/femtocell equipment

Quality of service for unified communications applications

Supports priority handling and policy enforcement for unified communication apps, including Skype for Business with encrypted videoconferencing, voice, chat and desktop sharing

Aruba AppRF technology leverages deep packet inspection to classify and block, prioritize or limit bandwidth for over 1,500 enterprise apps or groups of apps

Best-in-class RF Management

Integrated AirMatch technology manages the 2.4-GHz and 5-GHz radio bands and actively optimizes the RF environment including channel width, channel selection and transmit power
Adaptive Radio Management (ARM) technology provides airtime fairness and ensures that APs stay clear of all sources of RF interference to deliver reliable, high- performance WLANs

Spectrum analysis

Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4 GHz and 5 GHz radio bands to identify sources of RF interference from HT20 through VHT160 operation

Aruba Secure Core

Device assurance: Use of Trusted Platform Module (TPM) for secure storage of credentials and keys as well as secure boot
Integrated wireless intrusion protection2 offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances
IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats
SecureJack-capable for secure tunneling of wired Ethernet traffic

Intelligent Power Monitoring (IPM)

Enables the AP to continuously monitor and report its actual power consumption and optionally make autonomous decisions to disable certain capabilities based on the amount of power available to the unit
Software configurable to disable capabilities in certain orders. For the 340 Series Access Points, by default, the USB interface will be the first feature to turn off if the AP power consumption exceeds the available power budget

Specifications:

AP-344 and AP-345 Specifications
Hardware Variants AP-344: External antenna models AP-345: Internal antenna models Wi-Fi Radio Specifications AP type: Indoor, dual radio, 5 GHz 802.11ac 4x4 MIMO and 2.4 GHz 802.11n 4x4 MIMO The 2.4 GHz radio supports all 802.11ac rates as well (proprietary extension) Software-configurable dual radio supports: Dual-radio mode: 5 GHz (Radio 0) and 2.4 GHz (Radio 1) Dual-5 GHz mode: upper 5 GHz (Radio 0) and lower 5 GHz (Radio 1) 5 GHz: Four spatial stream Single User (SU) MIMO for up to 1,733 Mbps wireless data rate to individual 4SS VHT80 or 2SS VHT160 client devices Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to four 1SS or two 2SS MU-MIMO capable client devices simultaneously Peak datarate increases to 2,166 Mbps when using 1024-QAM modulation (proprietary extension) 2.4 GHz: Four spatial stream Single User (SU) MIMO for up to 600 Mbps wireless data rate to individual 4SS HT40 client devices, and up to 800 Mbps to individual 4SS VHT40 devices (proprietary extension) Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio Supported frequency bands (country-specific restrictions apply): 2.400 to 2.4835 GHz 5.150 to 5.250 GHz3 5.250 to 5.350 GHz3 5.470 to 5.725 GHz4 5.725 to 5.850 GHz4 Available channels: Dependent on configured regulatory domain Dynamic frequency selection (DFS) optimizes the use of available RF spectrum Supported radio technologies: 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) Supported modulation types: 802.11b: BPSK, QPSK, CCK 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension) Transmit power: Configurable in increments of 0.5 dBm Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements): 2.4 GHz band: +24 dBm (18dBm per chain) 5 GHz band: +24 dBm (18 dBm per chain) Note: Conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain. Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks Maximum ratio combining (MRC) for improved receiver performance Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance Short guard interval for 20 MHz, 40 MHz, 80 MHz and 160 MHz channels Space-time block coding (STBC) for increased range and improved reception Low-density parity check (LDPC) for high-efficiency error correction and increased throughput Transmit beam-forming (TxBF) for increased signal reliability and range Supported data rates (Mbps): 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 600 (MCS0 to MCS31) 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160) 802.11ac: 1,950 and 2,166 (MCS10 and MCS11, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160) 802.11n high-throughput (HT) support: HT20/40 802.11ac very high throughput (VHT) support: VHT20/40/80/160 802.11n/ac packet aggregation: A-MPDU, A-MSDU Wi-Fi Antennas AP-344: External antenna models. Two sets of four RP-SMA antenna connectors: Primary: A0 – A3, connected to chains 0 through 3 respectively on each associated radio With AP in dual-radio mode: dual-band interfaces, diplexing signals to/from radio 0 (full 5 GHz) and radio 1 (2.4 GHz) With AP in dual-5 GHz mode: 5 GHz interfaces from radio 0 (upper 5 GHz) Secondary: B0 – B3, connected to chains 0 through 3 respectively With AP in dual-radio mode: not used With AP in dual-5 GHz mode: 5 GHz interfaces from radio 1 (lower 5 GHz) Total internal losses between radio and external connectors: With AP in dual-radio mode: 2.0 dB for 5 GHz, 2.0 dB for 2.4 GHz With AP in dual-5 GHz mode: 2.0 dB for upper 5 GHz, 1.7 dB for lower 5 GHz AP-345: Internal antenna models. A total of eight internal omni-directional downtilt antennas Radio 1: four cross-polarized dual-band downtilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 5.8 dBi (2.4 GHz) and 5.6 dBi (5 GHz) per antenna. With AP in dual-radio mode: used for 2.4 GHz only With AP in dual-5 GHz mode: used for lower 5 GHz only Radio 0: four cross-polarized 5 GHz downtilt omni- directional antennas for 4x4 MIMO with peak antenna gain of 5.5 dBi per antenna With AP in dual-radio mode: used for full 5 GHz only With AP in dual-5 GHz mode: used for upper 5 GHz only All internal antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees. Combining the patterns of all antennas per radio, the peak gain of the average (effective) pattern is: Radio 1: 3.1 dBi in 2.4 GHz and 2.7 dBi in 5 GHz Radio 0: 2.2 dBi in 5 GHz	Other Interfaces One HPE SmartRate port (RJ-45, maximum negotiated speed 2.5 Gbps) Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX 2.5 Gbps speed complies with NBase-T and 802.3bz specifications PoE-PD: 48Vdc (nominal) 802.3at PoE One 10/100/1000BASE-T Ethernet network interface (RJ-45) Auto-sensing link speed and MDI/MDX PoE-PD: 48Vdc (nominal) 802.3at PoE Link aggregation (LACP) support between both network ports for redundancy and increased capacity DC power interface, accepts 1.35/3.5-mm center-positive circular plug with 9.5-mm length USB 2.0 host interface (Type A connector) • Bluetooth Low Energy (BLE) radio Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity Integrated vertically polarized omnidirectional antenna with roughly 30 degrees downtilt and peak gain of 4.9 dBi (AP-345) or 3.1 dBi (AP-344) Visual indicators (tri-color LEDs): for System and Radio status Reset button: factory reset, LED mode control (normal/off) Serial console interface (proprietary, µUSB physical jack) Kensington security slot Power Sources and Consumption The AP supports direct DC power and Power over Ethernet (PoE) When both power sources are available, DC power takes priority over PoE Power sources are sold separately Direct DC source: 48Vdc nominal, +/- 5% Power over Ethernet (PoE): 48Vdc (nominal) 802.3af/802.3at compliant source When powered by a direct DC power source, the AP will operate without restrictions When powered by PoE and with the IPM feature enabled, the AP will start up in unrestricted mode, but it may apply restrictions depending on the PoE budget and actual power. What IPM restrictions to apply, and in what order, is programmable. When powered by PoE with the IPM feature disabled, the AP will apply some fixed restrictions: The USB interface is disabled when using an 802.3at PoE power source The USB interface and second Ethernet port (E1 if E0 is used, otherwise E0) are disabled, and both radios are restricted to 2x2 operation (AP in dual-radio mode) or 1x1 operation (AP in dual-5 GHz mode) when using an 802.3af PoE power source Maximum (worst-case) power consumption: DC powered: 20.0W (AP in dual-radio mode), 22.8W (AP in dual-5 GHz mode) PoE powered (802.3at): 21.9W (AP in dual-radio mode), 25.1W (AP in dual-5 GHz mode) PoE powered (802.3af): 13.5W All numbers above are without an external USB device connected. When sourcing the full 5W power budget to such a device, the incremental (worst-case) power consumption for the AP is up to 6W (DC) or 6.6W (PoE) Maximum (worst-case) power consumption in idle mode: 11W (DC or PoE) Mounting The AP ships with two (black) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling Several optional mount kits are available to attach the AP to a variety of surfaces; see the Ordering Information section below for details Mechanical Dimensions and weight (unit, excluding mount accessories): 22.5 cm (W) x 22.4 cm (D) x 5.2 cm (H) 8.9” (W) x 8.9” (D) x 2.0” (H) 1.05 kg or 2.31 lbs Dimensions and weight (shipping): 33.9 cm (W) x 29 cm (D) x 8.8 cm (H) 13.3” (W) x 11.4” (D) x 3.5” (H) 1.65 kg or 3.63 lbs Environmental Operating: Temperature: 0° C to +50° C (+32° F to +122° F) Humidity: 5% to 93% non-condensing Storage and transportation: Temperature: -40° C to +70° C (-40° F to +158° F) Reliability MTBF: 640khrs (73yrs) at +25C operating temperature: Regulatory FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 60950 EN 60601-1-1, EN60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative. Regulatory Model Numbers AP-344: APIN0344 AP-345: APIN0345 Certifications CB Scheme Safety, cTUVus CBUL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n, ac Wi-Fi CERTIFIED™ ac (with wave 2 features) Warranty Aruba limited lifetime warranty Minimum Software Versions ArubaOS & Aruba InstantOS 8.3.0.0

AP-344 and AP-345 Specifications

Hardware Variants

AP-344: External antenna models
AP-345: Internal antenna models

Wi-Fi Radio Specifications

AP type: Indoor, dual radio, 5 GHz 802.11ac 4x4 MIMO and 2.4 GHz 802.11n 4x4 MIMO
- The 2.4 GHz radio supports all 802.11ac rates as well (proprietary extension)
Software-configurable dual radio supports:
- Dual-radio mode: 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
- Dual-5 GHz mode: upper 5 GHz (Radio 0) and lower 5 GHz (Radio 1)
5 GHz:
- Four spatial stream Single User (SU) MIMO for up to 1,733 Mbps wireless data rate to individual 4SS VHT80 or 2SS VHT160 client devices
- Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to four 1SS or two 2SS MU-MIMO capable client devices simultaneously
- Peak datarate increases to 2,166 Mbps when using 1024-QAM modulation (proprietary extension)
2.4 GHz:
- Four spatial stream Single User (SU) MIMO for up to 600 Mbps wireless data rate to individual 4SS HT40 client devices, and up to 800 Mbps to individual 4SS VHT40 devices (proprietary extension)
Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply):
- 2.400 to 2.4835 GHz
- 5.150 to 5.250 GHz3
- 5.250 to 5.350 GHz3
- 5.470 to 5.725 GHz4
- 5.725 to 5.850 GHz4
Available channels: Dependent on configured regulatory domain
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
Transmit power: Configurable in increments of 0.5 dBm
Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
- 2.4 GHz band: +24 dBm (18dBm per chain)
- 5 GHz band: +24 dBm (18 dBm per chain)
- Note: Conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.
Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Short guard interval for 20 MHz, 40 MHz, 80 MHz and 160 MHz channels
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range
Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: 6.5 to 600 (MCS0 to MCS31)
- 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160)
- 802.11ac: 1,950 and 2,166 (MCS10 and MCS11, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160)
- 802.11n high-throughput (HT) support: HT20/40
- 802.11ac very high throughput (VHT) support: VHT20/40/80/160
- 802.11n/ac packet aggregation: A-MPDU, A-MSDU

Wi-Fi Antennas

AP-344: External antenna models. Two sets of four RP-SMA antenna connectors:
- Primary: A0 – A3, connected to chains 0 through 3 respectively on each associated radio
  - With AP in dual-radio mode: dual-band interfaces, diplexing signals to/from radio 0 (full 5 GHz) and radio 1 (2.4 GHz)
  - With AP in dual-5 GHz mode: 5 GHz interfaces from radio 0 (upper 5 GHz)
- Secondary: B0 – B3, connected to chains 0 through 3 respectively
  - With AP in dual-radio mode: not used
  - With AP in dual-5 GHz mode: 5 GHz interfaces from radio 1 (lower 5 GHz)
- Total internal losses between radio and external connectors:
  - With AP in dual-radio mode: 2.0 dB for 5 GHz, 2.0 dB for 2.4 GHz
  - With AP in dual-5 GHz mode: 2.0 dB for upper 5 GHz, 1.7 dB for lower 5 GHz
AP-345: Internal antenna models. A total of eight internal omni-directional downtilt antennas
- Radio 1: four cross-polarized dual-band downtilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 5.8 dBi (2.4 GHz) and 5.6 dBi (5 GHz) per antenna.
  - With AP in dual-radio mode: used for 2.4 GHz only
  - With AP in dual-5 GHz mode: used for lower 5 GHz only
- Radio 0: four cross-polarized 5 GHz downtilt omni- directional antennas for 4x4 MIMO with peak antenna gain of 5.5 dBi per antenna
  - With AP in dual-radio mode: used for full 5 GHz only
  - With AP in dual-5 GHz mode: used for upper 5 GHz only
- All internal antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.
- Combining the patterns of all antennas per radio, the peak gain of the average (effective) pattern is:
  - Radio 1: 3.1 dBi in 2.4 GHz and 2.7 dBi in 5 GHz
  - Radio 0: 2.2 dBi in 5 GHz

Other Interfaces

One HPE SmartRate port (RJ-45, maximum negotiated speed 2.5 Gbps)
- Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
- 2.5 Gbps speed complies with NBase-T and 802.3bz specifications
- PoE-PD: 48Vdc (nominal) 802.3at PoE
One 10/100/1000BASE-T Ethernet network interface (RJ-45)
- Auto-sensing link speed and MDI/MDX
- PoE-PD: 48Vdc (nominal) 802.3at PoE
Link aggregation (LACP) support between both network ports for redundancy and increased capacity
DC power interface, accepts 1.35/3.5-mm center-positive circular plug with 9.5-mm length
USB 2.0 host interface (Type A connector) • Bluetooth Low Energy (BLE) radio
- Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity
- Integrated vertically polarized omnidirectional antenna with roughly 30 degrees downtilt and peak gain of 4.9 dBi (AP-345) or 3.1 dBi (AP-344)
Visual indicators (tri-color LEDs): for System and Radio status
Reset button: factory reset, LED mode control (normal/off)
Serial console interface (proprietary, µUSB physical jack)
Kensington security slot

Power Sources and Consumption

The AP supports direct DC power and Power over Ethernet (PoE)
When both power sources are available, DC power takes priority over PoE
Power sources are sold separately
Direct DC source: 48Vdc nominal, +/- 5%
Power over Ethernet (PoE): 48Vdc (nominal) 802.3af/802.3at compliant source
When powered by a direct DC power source, the AP will operate without restrictions
When powered by PoE and with the IPM feature enabled, the AP will start up in unrestricted mode, but it may apply restrictions depending on the PoE budget and actual power. What IPM restrictions to apply, and in what order, is programmable.
When powered by PoE with the IPM feature disabled, the AP will apply some fixed restrictions:
- The USB interface is disabled when using an 802.3at PoE power source
- The USB interface and second Ethernet port (E1 if E0 is used, otherwise E0) are disabled, and both radios are restricted to 2x2 operation (AP in dual-radio mode) or 1x1 operation (AP in dual-5 GHz mode) when using an 802.3af PoE power source
Maximum (worst-case) power consumption:
- DC powered: 20.0W (AP in dual-radio mode), 22.8W (AP in dual-5 GHz mode)
- PoE powered (802.3at): 21.9W (AP in dual-radio mode), 25.1W (AP in dual-5 GHz mode)
- PoE powered (802.3af): 13.5W
- All numbers above are without an external USB device connected. When sourcing the full 5W power budget to such a device, the incremental (worst-case) power consumption for the AP is up to 6W (DC) or 6.6W (PoE)
Maximum (worst-case) power consumption in idle mode: 11W (DC or PoE)

Mounting

The AP ships with two (black) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling
Several optional mount kits are available to attach the AP to a variety of surfaces; see the Ordering Information section below for details

Mechanical

Dimensions and weight (unit, excluding mount accessories):
- 22.5 cm (W) x 22.4 cm (D) x 5.2 cm (H)
- 1.05 kg or 2.31 lbs
Dimensions and weight (shipping):
- 33.9 cm (W) x 29 cm (D) x 8.8 cm (H)
- 1.65 kg or 3.63 lbs

Environmental

Operating:
- Temperature: 0° C to +50° C (+32° F to +122° F)
- Humidity: 5% to 93% non-condensing
Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158° F)

Reliability

MTBF: 640khrs (73yrs) at +25C operating temperature:

Regulatory

FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 60950
EN 60601-1-1, EN60601-1-2

For more country-specific regulatory information and approvals, please see your Aruba representative.

Regulatory Model Numbers

AP-344: APIN0344
AP-345: APIN0345

Certifications

CB Scheme Safety, cTUVus
CBUL2043 plenum rating
Wi-Fi Alliance certified 802.11a/b/g/n, ac
Wi-Fi CERTIFIED™ ac (with wave 2 features)

Warranty

Aruba limited lifetime warranty

Minimum Software Versions

ArubaOS & Aruba InstantOS 8.3.0.0

Wireless Radio Specifications:

RF Performance Table
	Maximum transmit power (dBm) per transmit chain	Receiver sensitivity (dBm) per receive chain
2.4 GHz - 802.11b
1 Mbps	18.0	-97.0
11 Mbps	18.0	-88.0
2.4 GHz - 802.11g
6 Mbps	18.0	-94.0
54 Mbps	16.0	-76.0
2.4 GHz - 802.11n HT20
MCS0/8/16/24	18.0	-94.0
MCS7/15/23/31	14.0	-74.0
2.4 GHz - 802.11n HT40
MCS0/8/16/24	18.0	-91.0
MCS7/15/23/31	14.0	-71.0
5 GHz - 802.11a
6 Mbps	18.0	-92.0
54 Mbps	16.0	-74.0
5 GHz - 802.11n HT20
MCS0/8/16/24	18.0	-92.0
MCS7/15/23/31	14.0	-71.0
5 GHz - 802.11n HT40
MCS0/8/16/24	18.0	-89.0
MCS7/15/23/31	14.0	-68.0
5 GHz - 802.11ac VHT20
MCS0	18.0	-92.0
MCS9	12.0	-66.0
MCS11	10.0	-60.0
5 GHz - 802.11ac VHT40
MCS0	18.0	-89.0
MCS9	12.0	-63.0
MCS11	10.0	-57.0
5 GHz - 802.11ac VHT80
MCS0	18.0	-86.0
MCS9	12.0	-60.0
MCS11	10.0	-54.0
5 GHz - 802.11ac VHT160
MCS0	18.0	-81.0
MCS9	12.0	-55.0
MCS11	10.0	-49.0

Note: Table shows the maximum hardware capability of the AP (excluding antenna and MIMO/MRC gain). Actual maximum transmit power may be limited below these numbers to ensure compliance with local regulatory requirements.

Antenna Pattern Plots:

Horizontal planes (top view, AP facing forward)

Showing both azimuth (0 degrees) and 30 degrees downtilt patterns

Horizontal or Azimuth plane (top view, AP front facing left)

Elevation planes (side view, AP facing down)

Showing side view with AP rotated both 0 and 90 degrees

Elevation plane (side view, AP front facing left)

Documentation:

Aruba AP-340 Series Access Points Datasheet (.PDF)

Pricing Notes:

Pricing and product availability subject to change without notice.

Aruba Networks Products

2. ADD POWERING ACCESSORIES (OPTIONAL)

Aruba AP-CBL-SERU Micro-USB TTL3.3V to USB2.0 AP Console Adapter Cable

#JY728A
List Price: ~~$32.00~~
Our Price: $23.13

Aruba AP-POE-ATSR 1-Port Smart Rate 802.3at 30W Indoor midspan injector

#R6P67A
List Price: ~~$180.00~~
Our Price: $130.80

Aruba AC Power Cord

#JW124A
List Price: ~~$7.00~~
Our Price: $5.06

3. ADD SPARE PARTS (OPTIONAL)

Instant On AP Flat Surface Wall/Ceiling Basic Mount (White)

#JW047A
List Price: ~~$28.00~~
Our Price: $20.34

AP-220-MNT-W3 White Low Profile Box Style Secure Large AP Flat Surface Mount Kit

#JY706A
List Price: ~~$84.00~~
Our Price: $60.71

HPE Aruba Foundation Care Next business day Exchange

Aruba 1 Year Foundation Care Next business day Exchange AP-344
*Backorder

#H6PQ1E
Get a Quote!

Aruba 3 Year Foundation Care Next business day Exchange AP-344
*Backorder

#H9QZ9E
Get a Quote!

Aruba 4 Year Foundation Care Next business day Exchange AP-344

#H9RA3E
List Price: ~~$250.00~~
Our Price: $236.05

Aruba 5 Year Foundation Care Next business day Exchange AP-344

#H9RA7E
List Price: ~~$304.00~~
Our Price: $287.04

HPE Aruba Foundation Care 4-Hour Exchange

Aruba 1 Year Foundation Care 4-Hour Exchange AP-344

#H9QZ8E
List Price: ~~$118.00~~
Our Price: $111.41

Aruba 3 Year Foundation Care 4-Hour Exchange AP-344

#H9RA0E
List Price: ~~$319.00~~
Our Price: $301.21

Aruba 4 Year Foundation Care 4-Hour Exchange AP-344

#H9RA4E
List Price: ~~$402.00~~
Our Price: $379.57

Aruba 5 Year Foundation Care 4-Hour Exchange AP-344

#H6PR2E
Our Price: $198.00

HPE Aruba Services Renewal

Aruba 1 Year Renewal Foundation Care Next business day Exchange AP-344

#H9RB1PE
List Price: ~~$67.00~~
Our Price: $63.26

Aruba 1 Year Renewal Foundation Care 4-Hour Exchange AP-344

#H9RB4PE
List Price: ~~$107.00~~
Our Price: $101.03

Aruba AP-344 Access Point Extreme performance 802.11ac Wave 2 APs with dual-5 GHz and multi-gig Ethernet support
