Aruba AP-515 Access Point
High performance 802.11ax enterprise access points for campus deployments

Aruba Networks Products

Aruba Wireless Access Point

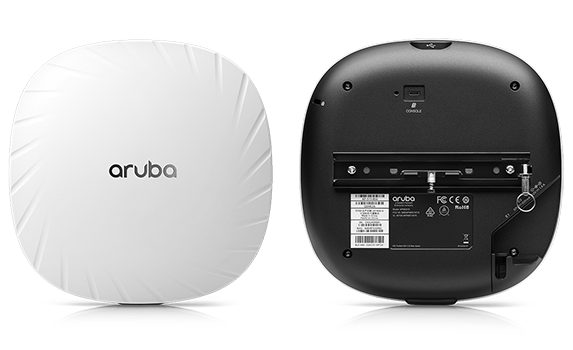

Aruba AP-515 Wireless Access Point

#Q9H63A
List Price: ~~$1,486.00~~
Our Price: $939.91

Aruba AP-515 Wireless Access Point

#Q9H73A
List Price: ~~$1,757.00~~
Our Price: $1,276.78

Click here to jump to more pricing!

Antenna Pattern Plots

Documentation

Overview:

The Aruba 510 series campus access points with 802.11ax technology are designed to deliver high performance access for mobile and (IOT) devices in environments where density is an issue. The 510 series uses 802.11ax features to efficiently and simultaneously serve multiple clients and traffic types in dense environments, increasing data rates for both individual device and overall system.

The 510 series support all mandatory and several optional 802.11ax features, which includes up- and downlink OFDMA* with up to 16 resource units, multi-user MIMO (MU-MIMO)*, 4x4 MIMO with up to four spatial streams in 5GHz and 2x2 with up to two special streams in 2.4GHz, channel bandwidths up to 160MHz (5GHz; 40MHz in 2.4GHz), and 1024-QAM modulation.

The 510 series supports maximum data rates of 4.8Gbps in the 5GHz band and 575Mbps in the 2.4GHz band (for an aggregate peak data rate of 5.4Gbps). Each AP supports up to 256 associated client devices per radio (typical recommended limit for active clients is 150), making the mid-range 802.11ax 510 series APs ideal for high density environments, such as schools, retail branches, hotels and enterprise offices.

In addition to 802.11ax standard capabilities, the 510 Series supports unique features like Aruba ClientMatch radio management and additional radios for location services and IoT applications. This delivers an unsurpassed user experience in today’s all-wireless digital work environment and offers up to 4x higher capacity in a cost-effective manner.

High performance Dual Radio 802.11ax AP with OFDMA and Multi-User MIMO (MU-MIMO)
Supports all mandatory and several optional 802.11ax features
Maximum data rates of 4.8Gbps in the 5GHz band and 575Mbps in the 2.4GHz band (for an aggregate peak data rate of 5.4Gbps)
Mid-range 802.11ax 510 series APs ideal for high density environments, such as schools, retail branches, hotels and enterprise offices
Includes Bluetooth 5 and Zigbee radios for location and IoT use-case

Benefits:

HIGH EFFICIENCY

The Aruba 510 Series will efficiently and simultaneously serve multiple clients, increasing data rates for both individual devices and as an overall system. Two key features of 802.11ax are multi-user connectivity and enhanced efficiency using Orthogonal Frequency Division Multiple Access (OFDMA)* and multi-user – multiple input multiple output (MU-MIMO).

UNSURPASSED PERFORMANCE

In addition to the standard 802.11ax capabilities, Aruba’s ClientMatch technology will automatically detect and classify mobile devices with common characteristics, group these devices, and match them with the best AP’s and radios to the optimize performance of the network. For example, ClientMatch will automatically attempt to group 802.11ax capable devices onto available AP radios with equivalent capabilities, so that the performance benefits of Orthogonal Frequency Division Multiple Access (OFDMA) are maximized. This means increased network performance and a boost in network capacity. The AP-510 series run on ArubaOS 8, which delivers always-on networking via features like LiveUpgrade, Controller Clustering and seamless fail-over. ArubaOS 8 also includes AirMatch, which provides machine learning technology to automatically optimize the performance of a wireless network by tuning the radio frequencies (RF) of the access points.

IOT READY

The 802.11ax technology also provides unique benefits for IoT devices ranging from dedicated channels in OFDMA which is simultaneous transmission of IoT connections with low latency, to power saving options with Target Wake Time (TWT)* to save battery life.
In addition, the 510 series support an integrated Bluetooth 5 and Zigbee radio, as well as a USB port for maximum flexibility, providing secure and reliable connectivity for IoT devices and for implementing location services.

Specifications:

AP-514 and AP-345 Specifications
Hardware Variants AP-514: External antenna models AP-515: Internal antenna models Wi-Fi Radio Specifications AP type: Indoor, dual radio, 5GHz 802.11ax 4x4 MIMO and 2.4GHz 802.11ax 2x2 MIMO 5GHz radio: Four spatial stream Single User (SU) MIMO for up to 4.8Gbps wireless data rate to individual 4SS HE160 802.11ax client devices (max) Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical) Four spatial stream Multi User (MU) MIMO for up to 4.8Gbps wireless data rate to up to four 1SS or two 2SS HE160 802.11ax DL-MU-MIMO capable client devices simultaneously (max) Four spatial stream Multi User (MU) MIMO for up to 2.4Gbps wireless data rate to up to four 1SS or two 2SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (typical) 2.4GHz radio: Two spatial stream Single User (SU) MIMO for up to 575Mbps wireless data rate to individual 2SS HE40 802.11ax client devices or to two 1SS HE40 802.11ax DL-MU-MIMO capable client devices simultaneously (max) Two spatial stream Single User (SU) MIMO for up to 287Mbps wireless data rate to individual 2SS HE20 802.11ax client devices or to two 1SS HE20 802.11ax DL-MU-MIMO capable client devices simultaneously (typical) Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio Supported frequency bands (country-specific restrictions apply): 2.400 to 2.4835GHz 5.150 to 5.250GHz 5.250 to 5.350GHz 5.470 to 5.725GHz 5.725 to 5.850GHz Available channels: Dependent on configured regulatory domain Dynamic frequency selection (DFS) optimizes the use of available RF spectrum Supported radio technologies: 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (for an 80MHz channel) Supported modulation types: 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension) 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension) 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM 802.11n high-throughput (HT) support: HT20/40 802.11ac very high throughput (VHT) support: VHT20/40/80/160 802.11ax high efficiency (HE) support: HE20/40/80/160 Supported data rates (Mbps) ¹: 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) 802.11n (5GHz): 6.5 to 600 (MCS0 to MVC31, HT20 to HT40) 802.11ac: 6.5 to 3,467 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160) 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) 802.11ax (5GHz): 3.6 to 4,803 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160) 802.11n/ac packet aggregation: A-MPDU, A-MSDU Transmit power: Configurable in increments of 0.5 dBm Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements): 2.4 GHz band: +21 dBm (18dBm per chain) 5 GHz band: +24 dBm (18 dBm per chain) Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain. Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks Maximum ratio combining (MRC) for improved receiver performance Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance Space-time block coding (STBC) for increased range and improved reception Low-density parity check (LDPC) for high-efficiency error correction and increased throughput Transmit beam-forming (TxBF) for increased signal reliability and range 802.11ax Target Wait Time (TWT) to support low-power client devices Wi-Fi Antennas AP-514: Four RP-SMA connectors for external dual band antennas (A0 through A3, corresponding with radio chains 0 through 3). Worst-case internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 1.3dB in 2.4GHz and 1.7dB in 5GHz. AP-515: Four integrated dual-band downtilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 4.2dBi in 2.4GHz and 7.5dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees. Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the effective per-antenna pattern is 3.8dBi in 2.4GHz and 4.6dBi in 5GHz.	Other Interfaces E0: HPE SmartRate port (RJ-45, maximum negotiated speed 2.5Gbps) Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX 2.5Gbps speed complies with NBase-T and 802.3bz specifications POE-PD: 48Vdc (nominal) 802.3af/802.3at POE E1: 10/100/1000BASE-T Ethernet network interface (RJ-45) Auto-sensing link speed and MDI/MDX Link aggregation (LACP) support between both network ports for redundancy and increased capacity DC power interface: 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length USB 2.0 host interface (Type A connector) Capable of sourcing up to 1A / 5W to an attached device Bluetooth 5 and Zigbee (802.15.4) radio Bluetooth: up to 8dBm transmit power (class 1) and -95dBm receive sensitivity Zigbee: up to 8dBm transmit power and -97dBm receive sensitivity Integrated vertically polarized omnidirectional antenna with roughly 30 degrees downtilt and peak gain of 3.5dBi (AP-515) or 4.9dBi (AP-514) Visual indictors (two multi-color LEDs): for System and Radio status Reset button: factory reset, LED mode control (normal/off) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot Power Sources and Consumption The AP supports direct DC power and Power over Ethernet (POE; on port E0) When both power sources are available, DC power takes priority over POE Power sources are sold separately; see the ordering Information section below for details When powered by DC or 802.3at POE, the AP will operate without restrictions When powered by 802.3af POE and with the IPM feature enabled, the AP will start up in unrestricted mode, but it may apply restrictions depending on the POE budget and actual power. What IPM restrictions to apply, and in what order, is programmable. When powered by 802.3af POE with the IPM feature disabled, the AP operates in power-save mode, and will apply some fixed restrictions: The USB interface and E1 Ethernet port are disabled The 5GHz radio is restricted to 2x2 operation Maximum (worst-case) power consumption: DC powered: 17W POE powered (802.3at): 19W POE powered (802.3af): 13.5W All numbers above are without an external USB device connected. When sourcing the full 5W power budget to such a device, the incremental (worst-case) power consumption for the AP is up to 6.5W. Maximum (worst-case) power consumption in idle mode: 11W (DC or POE) Maximum (worst-case) power consumption in deep-sleep mode: 1W (DC or POE) Mounting A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the (sold separately) mount kits; see the ordering Information section below for details. Mechanical Dimensions/weight (AP-515; unit, excluding mount bracket): (H) 46mm x (W) 200mm x (D) 200mm (1.8" x 7.9" x 7.9") Weight: 810g (28.5oz) Dimensions/weight (AP-515; shipping): (H) 72mm x (W) 230mm x (D) 220mm (2.8" x 9.1" x 9.1") Weight: 1,010g (35.5oz) Environmental Operating conditions Temperature: 0°C to +50°C / +32°F to +122°F Humidity: 5% to 93% non-condensing AP is plenum rated for use in air-handling spaces ETS 300 019 class 3.2 environments Storage and transportation conditions Temperature: -40°C to +70°C / -40F to +158°F Humidity: 5% to 93% non-condensing ETS 300 019 classes 1.2 and 2.3 environments Reliability Mean Time Between Failure (MTBF): 560,000 hrs (64yrs) at +25°C operating temperature. Regulatory FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 60950 EN 60601-1-1, EN60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative. Regulatory Model Numbers AP-514: APIN0514 AP-515: APIN0515 Certifications UL2043 plenum rating Wi-Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED ax² WPA, WPA2 and WPA3 – Enterprise, Personal WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband Wi-Fi Location³ Passpoint (release 2) Bluetooth SIG Ethernet Alliance (POE, PD device, class 4) Warranty Aruba limited lifetime warranty Minimum Software Versions ArubaOS & Aruba InstantOS 8.4.0.0

AP-514 and AP-345 Specifications

Hardware Variants

AP-514: External antenna models
AP-515: Internal antenna models

Wi-Fi Radio Specifications

AP type: Indoor, dual radio, 5GHz 802.11ax 4x4 MIMO and 2.4GHz 802.11ax 2x2 MIMO
5GHz radio:
- Four spatial stream Single User (SU) MIMO for up to 4.8Gbps wireless data rate to individual 4SS HE160 802.11ax client devices (max)
- Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical)
- Four spatial stream Multi User (MU) MIMO for up to 4.8Gbps wireless data rate to up to four 1SS or two 2SS HE160 802.11ax DL-MU-MIMO capable client devices simultaneously (max)
- Four spatial stream Multi User (MU) MIMO for up to 2.4Gbps wireless data rate to up to four 1SS or two 2SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)
2.4GHz radio:
- Two spatial stream Single User (SU) MIMO for up to 575Mbps wireless data rate to individual 2SS HE40 802.11ax client devices or to two 1SS HE40 802.11ax DL-MU-MIMO capable client devices simultaneously (max)
- Two spatial stream Single User (SU) MIMO for up to 287Mbps wireless data rate to individual 2SS HE20 802.11ax client devices or to two 1SS HE20 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)
Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply):
- 2.400 to 2.4835GHz
- 5.150 to 5.250GHz
- 5.250 to 5.350GHz
- 5.470 to 5.725GHz
- 5.725 to 5.850GHz
Available channels: Dependent on configured regulatory domain
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
- 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (for an 80MHz channel)
Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
- 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11n high-throughput (HT) support: HT20/40
802.11ac very high throughput (VHT) support: VHT20/40/80/160
802.11ax high efficiency (HE) support: HE20/40/80/160
Supported data rates (Mbps) ¹:
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)
- 802.11n (5GHz): 6.5 to 600 (MCS0 to MVC31, HT20 to HT40)
- 802.11ac: 6.5 to 3,467 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160)
- 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
- 802.11ax (5GHz): 3.6 to 4,803 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)
802.11n/ac packet aggregation: A-MPDU, A-MSDU
Transmit power: Configurable in increments of 0.5 dBm
Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
- 2.4 GHz band: +21 dBm (18dBm per chain)
- 5 GHz band: +24 dBm (18 dBm per chain)
- Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.
Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range
802.11ax Target Wait Time (TWT) to support low-power client devices

Wi-Fi Antennas

AP-514:
- Four RP-SMA connectors for external dual band antennas (A0 through A3, corresponding with radio chains 0 through 3). Worst-case internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 1.3dB in 2.4GHz and 1.7dB in 5GHz.
AP-515:
- Four integrated dual-band downtilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 4.2dBi in 2.4GHz and 7.5dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.
  - Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the effective per-antenna pattern is 3.8dBi in 2.4GHz and 4.6dBi in 5GHz.

Other Interfaces

E0: HPE SmartRate port (RJ-45, maximum negotiated speed 2.5Gbps)
- Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
- 2.5Gbps speed complies with NBase-T and 802.3bz specifications
- POE-PD: 48Vdc (nominal) 802.3af/802.3at POE
E1: 10/100/1000BASE-T Ethernet network interface (RJ-45)
- Auto-sensing link speed and MDI/MDX
Link aggregation (LACP) support between both network ports for redundancy and increased capacity
DC power interface: 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length
USB 2.0 host interface (Type A connector)
- Capable of sourcing up to 1A / 5W to an attached device
Bluetooth 5 and Zigbee (802.15.4) radio
- Bluetooth: up to 8dBm transmit power (class 1) and -95dBm receive sensitivity
- Zigbee: up to 8dBm transmit power and -97dBm receive sensitivity
- Integrated vertically polarized omnidirectional antenna with roughly 30 degrees downtilt and peak gain of 3.5dBi (AP-515) or 4.9dBi (AP-514)
Visual indictors (two multi-color LEDs): for System and Radio status
Reset button: factory reset, LED mode control (normal/off)
Serial console interface (proprietary, micro-B USB physical jack)
Kensington security slot

Power Sources and Consumption

The AP supports direct DC power and Power over Ethernet (POE; on port E0)
When both power sources are available, DC power takes priority over POE
Power sources are sold separately; see the ordering Information section below for details
When powered by DC or 802.3at POE, the AP will operate without restrictions
When powered by 802.3af POE and with the IPM feature enabled, the AP will start up in unrestricted mode, but it may apply restrictions depending on the POE budget and actual power. What IPM restrictions to apply, and in what order, is programmable.
When powered by 802.3af POE with the IPM feature disabled, the AP operates in power-save mode, and will apply some fixed restrictions:
- The USB interface and E1 Ethernet port are disabled
- The 5GHz radio is restricted to 2x2 operation
Maximum (worst-case) power consumption:
- DC powered: 17W
- POE powered (802.3at): 19W
- POE powered (802.3af): 13.5W
- All numbers above are without an external USB device connected. When sourcing the full 5W power budget to such a device, the incremental (worst-case) power consumption for the AP is up to 6.5W.
Maximum (worst-case) power consumption in idle mode: 11W (DC or POE)
Maximum (worst-case) power consumption in deep-sleep mode: 1W (DC or POE)

Mounting

A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the (sold separately) mount kits; see the ordering Information section below for details.

Mechanical

Dimensions/weight (AP-515; unit, excluding mount bracket):
- (H) 46mm x (W) 200mm x (D) 200mm (1.8" x 7.9" x 7.9")
- Weight: 810g (28.5oz)
Dimensions/weight (AP-515; shipping):
- (H) 72mm x (W) 230mm x (D) 220mm (2.8" x 9.1" x 9.1")
- Weight: 1,010g (35.5oz)

Environmental

Operating conditions
- Temperature: 0°C to +50°C / +32°F to +122°F
- Humidity: 5% to 93% non-condensing
- AP is plenum rated for use in air-handling spaces
- ETS 300 019 class 3.2 environments
Storage and transportation conditions
- Temperature: -40°C to +70°C / -40F to +158°F
- Humidity: 5% to 93% non-condensing
- ETS 300 019 classes 1.2 and 2.3 environments

Reliability

Mean Time Between Failure (MTBF): 560,000 hrs (64yrs) at +25°C operating temperature.

Regulatory

FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 60950
EN 60601-1-1, EN60601-1-2

For more country-specific regulatory information and approvals, please see your Aruba representative.

Regulatory Model Numbers

AP-514: APIN0514
AP-515: APIN0515

Certifications

UL2043 plenum rating
Wi-Fi Alliance:
- Wi-Fi CERTIFIED a, b, g, n, ac
- Wi-Fi CERTIFIED ax²
- WPA, WPA2 and WPA3 – Enterprise, Personal
- WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband
- Wi-Fi Location³
- Passpoint (release 2)
Bluetooth SIG
Ethernet Alliance (POE, PD device, class 4)

Warranty

Aruba limited lifetime warranty

Minimum Software Versions

ArubaOS & Aruba InstantOS 8.4.0.0

Wireless Radio Specifications:

RF Performance Table
	Maximum transmit power (dBm) per transmit chain	Receiver sensitivity (dBm) per receive chain
2.4 GHz - 802.11b
1 Mbps	18.0	-96.0
11 Mbps	18.0	-88.0
2.4 GHz - 802.11g
6 Mbps	18.0	-93.0
54 Mbps	17.0	-75.0
2.4 GHz - 802.11n HT20
MCS0/8/16/24	18.0	-93.0
MCS7/15/23/31	16.0	-75.0
2.4 GHz - 802.11n HT40
MCS0/8/16/24	18.0	-92.0
MCS7/15/23/31	14.0	-62.0
5 GHz - 802.11a
6 Mbps	18.0	-93.0
54 Mbps	17.0	-75.0
5 GHz - 802.11n HT20
MCS0/8/16/24	18.0	-93.0
MCS7/15/23/31	16.0	-73.0
5 GHz - 802.11n HT40
MCS0/8/16/24	18.0	-90.0
MCS7/15/23/31	16.0	-70.0
5 GHz - 802.11ac VHT20
MCS0	18.0	-90.0
MCS9	16.0	-65.0
5 GHz - 802.11ac VHT40
MCS0	18.0	-90.0
MCS9	16.0	-65.0
5 GHz - 802.11ac VHT80
MCS0	18.0	-87.0
MCS9	16.0	-62.0
5 GHz - 802.11ac VHT160
MCS0	18.0	-84.0
MCS9	16.0	-59.0
5 GHz - 802.11ac HE20
MCS0	18.0	-90.0
MCS11	14.0	-60.0
5 GHz - 802.11ac HE40
MCS0	18.0	-87.0
MCS11	14.0	-57.0
5 GHz - 802.11ac HE80
MCS0	18.0	-84.0
MCS11	14.0	-54.0
5 GHz - 802.11ac HE160
MCS0	18.0	-81.0
MCS11	13.0	-51.0

Note: Table shows the maximum hardware capability of the AP (excluding antenna and MIMO/MRC gain). Actual maximum transmit power may be limited below these numbers to ensure compliance with local regulatory requirements.

Antenna Pattern Plots:

Horizontal planes (top view, AP facing forward)

Showing both azimuth (0 degrees) and 30 degrees downtilt patterns

Horizontal or Azimuth plane (top view, AP front facing left)

Elevation planes (side view, AP facing down)

Showing side view with AP rotated both 0 and 90 degrees

Elevation plane (side view, AP front facing left)

Documentation:

Aruba AP-510 Series Access Points Datasheet (.PDF)

Pricing Notes:

Pricing and product availability subject to change without notice.

Aruba Networks Products

Aruba Wireless Access Point

Aruba AP-515 Wireless Access Point

#Q9H63A
List Price: ~~$1,486.00~~
Our Price: $939.91

Aruba AP-515 Wireless Access Point

#Q9H73A
List Price: ~~$1,757.00~~
Our Price: $1,276.78

Mounting Kit

Aruba AP-MNT-MP10-A Campus AP mount bracket kit (10-pack) type A: suspended ceiling rail, flat 9/16

#JZ370A
List Price: ~~$241.00~~
Our Price: $174.17

Aruba AP-MNT-MP10-B Campus AP mount bracket kit (10-pack) type B: suspended ceiling rail, flat 15/16

#Q9G69A
List Price: ~~$241.00~~
Our Price: $174.17

Aruba AP-MNT-MP10-C Campus AP mount bracket kit (10-pack) type C: suspended ceiling rail, profile 9/16

#Q9G70A
List Price: ~~$241.00~~
Our Price: $175.13

Aruba AP-MNT-MP10-E Campus AP mount bracket kit (10-pack) type E: wall-box

#R1C72A
List Price: ~~$364.00~~
Our Price: $263.06

Aruba Wireless Access Point

AP-ANT-MNT-4 Antenna Mount

#JW021A
List Price: ~~$130.00~~
Our Price: $94.47

AP-ANT-MNT-5 Antenna Mount

#JW022A
List Price: ~~$130.00~~
Our Price: $94.47

Aruba Wireless Power Accesories

PD-9001GR-AC 30W 802.3at PoE+ 10/100/1000 Ethernet Indoor Rated Midspan Injector
Includes US Power Cord

#JW629A#ABA
List Price: ~~$155.00~~
Our Price: $104.01

Aruba AC Power Cord

#JW124A
List Price: ~~$7.00~~
Our Price: $5.06

Aruba AP-CBL-SERU Micro-USB TTL3.3V to USB2.0 AP Console Adapter Cable

#JY728A
List Price: ~~$32.00~~
Our Price: $23.13

Aruba AP-515 Snap-On Covers

#Q9H74A
List Price: ~~$241.00~~
Our Price: $175.13

Aruba AP-515 Access Point High performance 802.11ax enterprise access points for campus deployments

Overview:

Benefits:

HIGH EFFICIENCY

UNSURPASSED PERFORMANCE

IOT READY

Specifications:

Wireless Radio Specifications:

Antenna Pattern Plots:

Horizontal planes (top view, AP facing forward)

Elevation planes (side view, AP facing down)

Documentation:

Aruba AP-515 Access Point
High performance 802.11ax enterprise access points for campus deployments
