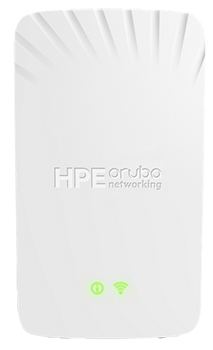

Aruba AP-500H Access Point

Overview:

The Aruba 500H series access points, with Wi-Fi 6 (802.11ax) technology and Aruba’s intelligent software innovations, deliver high performance connectivity for mobile and IoT devices in any environment.

The 500H series is designed to simultaneously serve multiple clients and traffic types in dense environments, and boosts overall network performance by up to 400% compared to 802.11ac APs.

The 500H series includes AI-powered RF optimization, Live upgrades, WPA3 and Enhanced Open certified security, and unified wired and wireless policy with Dynamic Segmentation.

Why Choose Aruba 500h?

User and app firewall

The Aruba Policy Enforcement Firewall controls user and IoT access at the point of connectivity and is the underlying technology for Aruba Dynamic Segmentation.

Unsurpassed client experiences

Aruba ClientMatch, part of Aruba’s AI-powered mobility solution, intelligently groups Wi-Fi 6 and MU-MIMO capable clients on the best-performing APs to optimize performance and roaming.

IoT platform capabilities

Aruba Wi-Fi 6 and Wi-Fi 5 APs include support for Zigbee, Bluetooth, and 3rd party overlays to simplify the deployment and management of IoT services.

Related Products

Aruba Central

Cloud-native network operations that provides unified management, AI and security for WLAN, LAN and SD-WAN.

Learn More

Aruba ClearPass

Dynamic role-based access control and policy management for wired and wireless networks

Learn More

Specifications:

HARDWARE VARIANTS
AP-505H 5GHz: radio: Two spatial stream (SU/MU) MIMO for up to 1.2Gbps wireless data rate (HE80) 2.4GHz radio: Two spatial stream (SU/MU) MIMO for up to 287Mbps wireless data rate (HE20) Note: HE40 operation is supported in 2.4GHz, but uncommon and not recommended for enterprise deployments

WI-FI RADIO SPECIFICATIONS
AP type: High-end dual radio Wi-Fi 6 Hospitality AP with 1+4 Ethernet ports Maximum number of associated client devices: Up to 256 associated client devices per radio Maximum number of BSSIDs: 16 BSSIDs per radio Supported frequency bands (country-specific restrictions apply): 2.400 to 2.500GHz (ISM) channels 1-13 5.150 to 5.250GHz (U-NII-1) channels 36, 40, 44, 48 5.250 to 5.350GHz (U-NII-2A) channels 52, 56, 60, 64 5.470 to 5.725GHz (U-NII-2C) channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144 5.725 to 5.850GHz (U-NII-3) channels 149, 153, 157, 161, 165 Dynamic frequency selection (DFS) optimizes the use of available RF spectrum Supported radio technologies: 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units Supported modulation types: 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension) 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension) 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM 802.11n high-throughput (HT) support: HT20/40 802.11ac very high throughput (VHT) support: VHT20/40/80 Supported data rates (Mbps): 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80) 802.11n/ac packet aggregation: A-MPDU, A-MSDU Transmit power: Configurable in increments of 0.5 dBm Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements): 2.4 GHz band: +20 dBm (17 dBm per chain) 5 GHz band: +21 dBm (18 dBm per chain) Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain Minimum configurable transmit power level: 0 dBm (conducted, per chain) Advanced Cellular Coexistence (ACC): Minimizes the impact of interference from cellular networks Advanced IOT Coexistence (AIC): Allows concurrent operation of multiple radios in the 2.4GHz band Maximum ratio combining (MRC): For improved receiver performance Cyclic delay/shift diversity (CDD/CSD): For improved downlink RF performance Space-time block coding (STBC): For increased range and improved reception Low-density parity check (LDPC): For high-efficiency error correction and increased throughput Transmit beam-forming (TxBF): For increased signal reliability and range 802.11ax Target Wait Time (TWT): To support low-power client devices VPN IPsec throughput performance: 500Mbps or better

WI-FI RADIO SPECIFICATIONS

AP type:
- High-end dual radio Wi-Fi 6 Hospitality AP with 1+4 Ethernet ports
Maximum number of associated client devices:
- Up to 256 associated client devices per radio
Maximum number of BSSIDs:
- 16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply):
- 2.400 to 2.500GHz (ISM) channels 1-13
- 5.150 to 5.250GHz (U-NII-1) channels 36, 40, 44, 48
- 5.250 to 5.350GHz (U-NII-2A) channels 52, 56, 60, 64
- 5.470 to 5.725GHz (U-NII-2C) channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144
- 5.725 to 5.850GHz (U-NII-3) channels 149, 153, 157, 161, 165
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
- 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units
Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
- 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11n high-throughput (HT) support:
- HT20/40
802.11ac very high throughput (VHT) support:
- VHT20/40/80
Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM
- 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM
- 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
- 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)
802.11n/ac packet aggregation:
- A-MPDU, A-MSDU
Transmit power:
- Configurable in increments of 0.5 dBm
Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
- 2.4 GHz band: +20 dBm (17 dBm per chain)
- 5 GHz band: +21 dBm (18 dBm per chain)
- Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain
Minimum configurable transmit power level:
- 0 dBm (conducted, per chain)
Advanced Cellular Coexistence (ACC):
- Minimizes the impact of interference from cellular networks
Advanced IOT Coexistence (AIC):
- Allows concurrent operation of multiple radios in the 2.4GHz band
Maximum ratio combining (MRC):
- For improved receiver performance
Cyclic delay/shift diversity (CDD/CSD):
- For improved downlink RF performance
Space-time block coding (STBC):
- For increased range and improved reception
Low-density parity check (LDPC):
- For high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF):
- For increased signal reliability and range
802.11ax Target Wait Time (TWT):
- To support low-power client devices
VPN IPsec throughput performance:
- 500Mbps or better

WI-FI ANTENNAS
Two integrated semi-directional antennas for 2x2 MIMO with peak antenna gain of 5.0dBi in 2.4GHz and 5.4dBi in 5GHz. Built-in antennas are optimized for vertical wall or desk mounted orientation of the AP. Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 3.3dBi in 2.4GHz and 2.4dBi in 5GHz.

OTHER INTERFACES
Uplink (E0): Smart Rate Ethernet wired network port (RJ45) Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX 2.5Gbps speed complies with NBase-T and 802.3bz specifications 802.3az Energy Efficient Ethernet (EEE) PoE-PD: 802.3af/at/bt POE (class 3, 4 or 6) Local (E1-E4): Four Ethernet wired network ports (RJ45) Auto-sensing link speed (10/100/1000BASE-T) and MDI/MDX 802.3az Energy Efficient Ethernet (EEE) E1 & E2: PoE-PSE: 802.3af/at PoE output; dual 802.3af (both ports) or single 802.3at (E1 only) DC power interface 48Vdc (nominal, +/- 5%), accepts 1.35mm/3.5mm center-positive circular plug with 9.5mm length USB 2.0 host interface (Type A connector) Cellular modems IOT or other plug-in accessories Device battery charging port Capable of sourcing up to 1A / 5W to an attached device Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio BLE: up to 7dBm transmit power (class 1) and -100dBm receive sensitivity (125kbps) Zigbee: up to 7dBm transmit power and -97dBm receive sensitivity (250kbps) Integrated semi-directional antenna with peak gain of 1.2dBi Visual indicators (multi-color LEDs): Power/System status Radio status Local network port status (4x) PoE-PSE status (2x) Reset button: Factory reset, LED mode control (normal/off) Serial console interface: Proprietary, micro-B USB physical jack

OTHER INTERFACES

Uplink (E0): Smart Rate Ethernet wired network port (RJ45)
- Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
- 2.5Gbps speed complies with NBase-T and 802.3bz specifications
- 802.3az Energy Efficient Ethernet (EEE)
- PoE-PD: 802.3af/at/bt POE (class 3, 4 or 6)
Local (E1-E4): Four Ethernet wired network ports (RJ45)
- Auto-sensing link speed (10/100/1000BASE-T) and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
- E1 & E2: PoE-PSE: 802.3af/at PoE output; dual 802.3af (both ports) or single 802.3at (E1 only)
DC power interface
- 48Vdc (nominal, +/- 5%), accepts 1.35mm/3.5mm center-positive circular plug with 9.5mm length
USB 2.0 host interface (Type A connector)
- Cellular modems
- IOT or other plug-in accessories
- Device battery charging port
- Capable of sourcing up to 1A / 5W to an attached device
Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio
- BLE: up to 7dBm transmit power (class 1) and -100dBm receive sensitivity (125kbps)
- Zigbee: up to 7dBm transmit power and -97dBm receive sensitivity (250kbps)
- Integrated semi-directional antenna with peak gain of 1.2dBi
Visual indicators (multi-color LEDs):
- Power/System status
- Radio status
- Local network port status (4x)
- PoE-PSE status (2x)
Reset button:
- Factory reset, LED mode control (normal/off)
Serial console interface:
- Proprietary, micro-B USB physical jack

POWER SOURCES AND POWER CONSUMPTION
Power Sources: The AP supports direct DC power and Power over Ethernet When both DC and PoE power sources are available, DC power takes priority over PoE Power sources are sold separately; see the 500H Series Ordering Guide for details When powered by DC or 802.3bt (class 6) PoE, the AP will operate without restrictions. When powered by 802.3at (class 4) PoE with the IPM feature disabled, the AP will disable the USB port (only) if PoE-PSE is enabled, and support (802.3af) PoE-PSE power on E1 only (no PSE on E2). When powered by 802.3af (class 3) PoE with the IPM feature disabled, the AP will disable the USB port and PoE-PSE capability as well as ports E3 and E4. With IPM enabled, the AP will start up without restrictions, but may dynamically apply restrictions depending on the PoE budget and actual power consumption. The specific restrictions and order in which they are applied can be configured. Maximum (worst-case) power consumption (without USB or PSE / max): DC powered: 14W / 50W PoE powered (802.3bt): 14W / 51W PoE powered (802.3at): 14W / 25.5W PoE powered (802.3af): 13.5W / 13.5W Maximum (worst-case) power consumption in idle mode (without USB or PSE): 6.2W Maximum (worst-case) power consumption in deep-sleep mode (without USB or PSE): 3.5W

POWER SOURCES AND POWER CONSUMPTION

Power Sources:
- The AP supports direct DC power and Power over Ethernet
- When both DC and PoE power sources are available, DC power takes priority over PoE
- Power sources are sold separately; see the 500H Series Ordering Guide for details
- When powered by DC or 802.3bt (class 6) PoE, the AP will operate without restrictions.
- When powered by 802.3at (class 4) PoE with the IPM feature disabled, the AP will disable the USB port (only) if PoE-PSE is enabled, and support (802.3af) PoE-PSE power on E1 only (no PSE on E2).
- When powered by 802.3af (class 3) PoE with the IPM feature disabled, the AP will disable the USB port and PoE-PSE capability as well as ports E3 and E4.
- With IPM enabled, the AP will start up without restrictions, but may dynamically apply restrictions depending on the PoE budget and actual power consumption. The specific restrictions and order in which they are applied can be configured.
Maximum (worst-case) power consumption (without USB or PSE / max):
- DC powered: 14W / 50W
- PoE powered (802.3bt): 14W / 51W
- PoE powered (802.3at): 14W / 25.5W
- PoE powered (802.3af): 13.5W / 13.5W
Maximum (worst-case) power consumption in idle mode (without USB or PSE):
- 6.2W
Maximum (worst-case) power consumption in deep-sleep mode (without USB or PSE):
- 3.5W

MECHANICAL
Dimensions/weight (AP- 505; unit, excluding mount bracket): 86mm (W) x 47mm (D) x 150mm (H) Weight: 360g Dimensions/weight (AP-505; shipping): 111mm (W) x 54mm (D) x 167mm (H) Weight: 450g

ENVIRONMENTAL
Operating: Temperature: 0°C to +40°C / 32°F to +104°F Humidity: 5% to 93% non-condensing ETS 300 019 class 3.2 environments Storage and transportation: Temperature: -40°C to +70°C / -40°F to +158°F Humidity: 5% to 93% non-condensing ETS 300 019 classes 1.2 and 2.3 environments

RELIABILITY
Mean Time Between Failure (MTBF): 780khrs (88yrs) at +25C operating temperature.

REGULATORY COMPLIANCE
Regulatory model numbers: APINH505 Regulatory compliance: FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU IEC/EN 60950 EN 60601-1-1, EN60601-1-2 IEC/EN 62368-1 For more and country-specific regulatory information and approvals, please see your Aruba representative.

CERTIFICATIONS
Certifications: Wi-Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Vantage, Wi-Fi Agile Multiband Passpoint (release 2) Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6)

MINIMUM OPERATING SYSTEM SOFTWARE VERSIONS
ArubaOS and Aruba InstantOS 8.7.0.0
