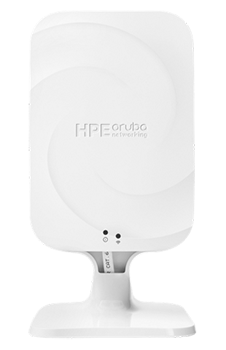

HPE Aruba Networking 600H Series Hospitality AP
High performance Wi-Fi 6E access points with wired connectivity

Overview:

The HPE Aruba Networking 600H Series Hospitality Access Points deliver high-performance wireless connectivity to mission critical hospitality, small branch, and remote work environments. The 600H Series delivers more wireless capacity and wider channels by taking advantage of Wi-Fi 6E and the 6 GHz band to more than double capacity to meet increasing demands of bandwidth-hungry video, growing numbers of client and IoT devices, and growth of cloud services.

Configurable dual radios support any two of three Wi-Fi 6E bands (2.4, 5, and 6 GHz) and provide full Wi-Fi 6E coverage in a multi-AP environment. The flexible compact form factor includes multi-gigabit and gigabit ports, PoE support, and integrated BLE and Zigbee, providing a range of connectivity options ideal for venues such as hotels, residence halls, and remote offices. The 600H Series include a limited lifetime warranty.

What's new

• High performance Wi-Fi 6E access point ideal for hospitality, branch, and teleworker deployments.
• Flexible coverage across any two bands (2.4 GHz, 5 GHz, and 6 GHz) for up to 3.6 Gbps combined peak data rate.
• Up to seven 160MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and AR/VR applications.
• Combines wireless and wired access in compact desktop or wall mount model that can be PoE powered.
• IoT-ready with support for¹ Bluetooth 5 and Zigbee.

Features:

High Performance Wi-Fi 6E

HPE Aruba Networking 600H Series Hospitality Access Points are fully Wi-Fi CERTIFIED™ to meet all the requirements for for greater efficiency including OFDMA, MUMIMO, and target wake time (TWT) to extend the battery life of devices.

Faster performance with 6 GHz band that delivers up to 1200 MHz additional capacity and 3.6 Gbps maximum combined data rate to better support highbandwidth, low-latency applications such as high-definition video.

Configurable dual radios support any two of three Wi-Fi 6E bands (2.4, 5, and 6 GHz) and provide full Wi-Fi 6E coverage in a multi-AP environment.

Enhanced wireless experience with ClientMatch technology that removes sticky client issues by steering a client to the AP where it receives the best radio signal and Air Slice that provides service level agreement-grade performance for latency-sensitive, high-bandwidth, and IoT services.

Convenient wired connectivity and support for PoE with fast 2.5 GbE uplink port, two 1 GbE ports, and two 1 GbE PSE ports capable of supplying up to total of 30W PoE.

---

Simplified Access with Enhanced Security

The HPE Aruba Networking 600H Series Hospitality Access Points offer enhanced security with Dynamic Segmentation to reduce the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic secure and separated.

It improves network protection with WPA3 and Enhanced Open for stronger encryption, authentication, and secure credentials for guest access.

To simplify policy enforcement, the 600H Series uses the policy enforcement firewall to encapsulate all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.

For enhanced device assurance, the 600H Series includes an installed TPM for secure storage of credentials, keys, and boot code.

---

Ready for IoT

HPE Aruba Networking 600H Series Hospitality Access Points include an integrated Bluetooth 5 and 802.15.4 radio for Zigbee support to simplify deploying and managing IoT-based location services, asset tracking services, security solutions, and IoT sensors.

The target wake time (TWT) establishes a schedule for when clients need to communicate with an access points to help improve client power savings and reduces airtime contention with other clients.

Advanced IoT Coexistence (AIC) feature uses built-in filtering to allow Wi-Fi and BLE/Zigbee radios to operate at maximum capacity without the impact of interference.

Intelligent Power Monitoring (IPM) provides insights into energy consumption. Our access points continuously monitor and report hardware energy usage. Unlike other the vendors access points, our APs can also be configured to enable or disable capabilities based on available PoE power.

Specifications:

Documentation:

HPE Aruba Networking AP-600H Series Hospitality Access Points Datasheet (.PDF)

HPE Aruba Networking AP-605H Hospitality Access Points Datasheet (.PDF)
