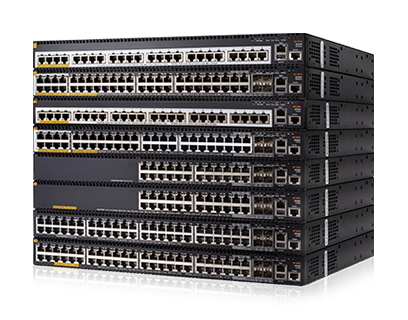

Aruba 2930M Series Switches
Performance and ease of use for the enterprise campus, SMB and branch office

I/O Ports and Slots

• 24G 1-slot Switch (JL319A):
  • 20 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T)
  • 4 Combo 10/100/1000BASE-T or 100/1000 Mbps SFP Ports
• 24G PoE+ 1-slot Switch (JL320A):
  • 20 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T, IEEE 802.3at PoE+)
  • 4 Combo 10/100/1000BASE-T or 100/1000 Mbps SFP Ports
• 48G 1-slot Switch (JL321A):
  • 44 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T)
  • 4 Combo 10/100/1000BASE-T or 100/1000 Mbps SFP Ports
• 48G PoE+ 1-slot Switch (JL322A):
  • 44 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T, IEEE 802.3at PoE+)
  • 4 Combo 10/100/1000BASE-T or 100/1000 Mbps SFP Ports
• 40G 8 HPE Smart Rate PoE+ 1-slot Switch (JL323A):
  • 36 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T PoE+)
  • 8 802.3bz 1/2.5/5 and 10GBASE-T copper PoE+ ports
  • 4 Combo 10/100/1000BASE-T or 100/1000 Mbps SFP Ports
• 40G 8 Smart Rate POE Class 6 1-slot Switch (R0M67A):
  • 36 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T PoE Class 6); Duplex: 10BASE-T/100BASETX: half or full;1000BASE-T:full only
  • 8 802.3bz 1/2.5/5 and 10GBaseT PoE Class 6 ports
  • 4 Combo 10/100/1000BASE-T or 100/1000 Mbps SFP Ports
• 24 HPE Smart Rate PoE+ 1-slot Switch (JL324A):
  • 24 Autosensing 1/2.5/5GBaseT ports PoE+
• 24 Smart Rate POE Class 6 1-slot Switch (R0M68A):
  • 24 Autosensing 1/2.5/5GBaseT ports PoE Class 6
• Switches (JL319A, JL320A, JL321A, JL322A, JL323A, R0M67A):
  • Duplex: 10BASE-T/100BASE-TX: half or full
  • 1000BASE-T: full only

Additional Ports and Slots

• 1 Dual Personality (RJ-45 or USB Micro-B) serial console port
• 1 USB B port for uploading/ downloading files
• 1 100BASE-T Out of Band Management Port
• 1 Uplink Slot
• 1 Stacking Module Slot
• 2 Power Supply Slots (power supplies not included)
• See datasheet for the list of modules and accessories

Memory and Processor

• Dual Core ARM Cortex A9 @ 1016 MHz
• 1 GB DDR3 SDRAM
• Packet Buffer Size: 12.38 MB 4.5 MB Ingress / 7.875 MB Egress
• 4GB eMMC

Physical Characteristics

• Dimensions:
  • (H) 4.39 cm x (W) 44.25 cm x (D) 32.43 cm
    (1.73" x 17.42" x 12.77")
• Weight:
  • 24G Switch (JL319A): 4.50 kg (9.81 lbs)
  • 24G PoE+ Switch (JL320A): 4.45 kg (9.92 lbs)
  • 48G Switch (JL321A): 4.60 kg (10.14 lbs)
  • 48G PoE+ Switch (JL322A): 4.65 kg (10.25 lbs)
  • 40G 8 HPE Smart Rate PoE+ 1-slot Switch (JL323A): 4.45 kg (9.81 lbs)
  • 40G 8 Smart Rate POE Class 6 1-slot Switch (R0M67A): 4.49 kg (9.90 lbs)
  • 24 HPE Smart Rate PoE+ 1-slot Switch (JL324A): 4.50 kg (9.92 lbs)
  • 24 Smart Rate POE Class 6 1-slot Switch (R0M68A): 4.52 kg (9.96 lbs)

Performance

• 10 Mbps Latency: <98.5µs (FIFO 64 byte packets)
• 100 Mbps Latency: <11.8µs (FIFO 64-byte Packets)
• 1000 Mbps Latency: <3.1 µs (FIFO 64-byte packets)
• 10 Gbps Latency: <3.4µs (FIFO 64-byte packets)
• 1000 Mb Latency: <3.8 µs (64-byte packets)
• Routing table size: 2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
• MAC address table size: 32768 entries
• 24G/24G PoE+ Switch (JL319A, JL320A):
  • Throughput: 95.2 Mpps
  • Switching capacity: 128 Gbps
  • Switching Capacity (including stacking): 228 Gbps
• 48G/48G PoE+ Switch (JL321A,JL322A):
  • Throughput: up to 112 Mpps
  • Switching capacity: 176 Gbps
  • Switching Capacity (including stacking): 276 Gbps
• Smart Rate Switches (JL323A, JL324A, R0M67A, R0M68A):
  • Throughput: up to 112 Mpps
  • Switching capacity: 320 Gbps
  • Switching Capacity (including stacking): 420 Gbps

Environmental

• Operating temperature:
  • 32˚F to 131˚F (0˚C to 55˚C) up to 5000ft, 32˚F to 122˚F (0˚C to 50˚C)
  • Derate -1˚C for every 1000 ft from 5000 ft to 10000 ft
• Operating Relative Humidity: 15% to 95%, (non-condensing) 10,000 ft
• Non-Operating/ Storage Temperature: -40˚C to +70˚C up to 15000 ft
• Non-Operating/ Storage Relative Humidity: 90% at 65˚C (non-condensing); 15,000 ft
• Acoustic: See data sheet
• Primary Airflow Direction: Port to power

Electrical Characteristics

• Frequency: 50/60 Hz
• Voltage: See data sheet
• Maximum heat dissipation: See data sheet
• Current: See data sheet
• Maximum power rating: See data sheet
• Idle power: See data sheet
• Hibernate Power: 7W
• PoE Power (max possible):
  • 720 W (JL320A)
  • 860 W (JL324A)
  • 1440 W (JL322A, JL323A, R0M67A, R0M68A)
• Notes:
  • Idle power is the actual power consumption of the device with no ports connected.
  • Maximum power rating and maximum heat dissipation are the worst case theoretical maximum numbers provide for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

• UL 60950-1, 2nd Edition
• EN 60950-1:2006 +A11:2009 : A1:2010 +A12:2011 +A2:2013
• IEC60950-1:2005 +A1:2009 +A2:2013
• CSA 22.2 No. 60950-1-07 2nd
• EN60825-1:2007 /IEC 60825-1:2007 Class 1

Emissions

• VCCI Class A
• CNS 13438
• ICES-003 Class A
• FCC CFR 47 Part 15, Class A
• EN 55022: 2010/CISPR-22, Class A

Immunity

• Generic: EN 55024:2010/CISPR 24
• ESD: IEC 61000-4-2
• Radiated: IEC 61000-4-3
• EFT/Burst: IEC 61000-4-4 Surge IEC 61000-4-5
• Conducted: IEC 61000-4-6
• Power frequency magnetic field: IEC 61000-4-8
• Voltage dips and interruptions: IEC 61000-4-11
• Harmonics: EN 61000-3-2, IEC 61000-3-2
• Flicker: EN 61000-3-3, IEC 61000-3-3

Management and Monitoring

• Aruba Central
• Aruba AirWave Network Management
• IMC—Intelligent Management Center
• Command-line interface
• Web browser
• Configuration menu
• SNMP manager
• Telnet
• RMON1
• FTP
• Out-of-band management
• Serial RS-232C
• Micro USB Serial
