Overview:
Ultimate Wi-Fi 6 performance with high power Bluetooth and Zigbee radios and 5 Gbps Ethernet for the most demanding outdoor locations.
Purpose-built to survive in the harshest outdoor environments, Aruba 580 Series Outdoor Access Points are designed for the highest levels of performance and greater deployment flexibility – all backed by a limited lifetime warranty. Aruba 580 Series APs deliver the speed and reliability needed for large enterprise and Industrial IoT deployments with high power Bluetooth and 802.15.4/Zigbee radios and flexible power options.
Designed For Outdoor Flexibility
Weatherproofed, and temperature hardened to survive in the harshest outdoor environments, Aruba 580 Series APs withstand exposure to extreme high and low temperatures, persistent moisture, and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial surge protection and are IP66/67 certified.
To support high-performance connectivity in dense mobile and IoT outdoor environments, Aruba 580 Series APs deliver maximum aggregate on air data rates of 2.97 Gbps and include 5 Gbps Smart Rate Ethernet ports. In addition, dual redundant power/port failover and support for AC ensure high availability with uninterrupted performance.

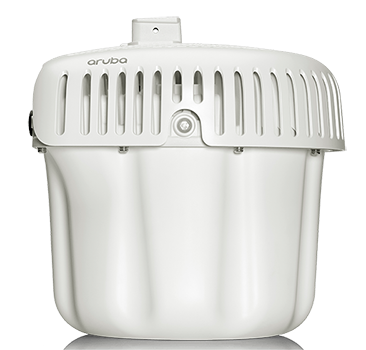

Available Models for 580 Series
The ultimate in Wi-Fi 6 performance for the harshest outdoor environments
Our only outdoor AP to feature high power Bluetooth and Zigbee, plus multi-gigabit connectivity for demanding environments including public venues.
IP66/67 Rated for Harsh Outdoor Environments
Purpose built to survive in the harshest outdoor environments and extreme temperatures (-40 to +65˚ C).
High power Bluetooth 5 and 802.15.4/Zigbee
Simplified deployment and management of IoT devices for Industrial IoT and manufacturing environments.
Wi-Fi 6 supported
Improve efficiency and security with Wi-Fi 6 capabilities including MU-MIMO, OFDMA, WPA3 and Enhanced Open (Wi-Fi Alliance certification in process).
Automatic role-based access enforcement
Centrally configure and automatically enforce role-based policies across wired and wireless networks using Dynamic Segmentation and Policy Enforcement Firewalls.
5 Gbps Smart Rate Ethernet
With 5 Gbps capacity, the Aruba 580 Series meets the needs of high-density environments and provides business continuity.
Powerful power options
Option to connect using direct AC power – no adapter required – along with PSE+ and PoE.
Features and Benefits:
WI-FI 6 BENEFITS
The 580 Series APs are based on the Wi-Fi 6/802.11ax standard, which means that Wi-Fi 6 features such as Uplink and Downlink Orthogonal Frequency Division Multiple Access (OFDMA), BSS coloring, Downlink Multi-User MIMO (MU-MIMO), and cellular co-location are fully supported making it more efficient and secure.
Advantages of OFDMA
This capability allows Aruba’s APs to handle multiple 802.11ax capable clients on each channel simultaneously, regardless of device or traffic type. Channel utilization is optimized by handling each transaction via smaller sub-carriers or resource units (RUs), which means that clients are sharing a channel and not competing for airtime and bandwidth.
Bi-directional Multi-User MIMO (MU-MIMO)
Similar to downlink MU-MIMO in Wi-Fi 5 (802.11ac Wave 2), Aruba 580 Series APs can simultaneously connect clients using downlink – and now – uplink spatial streams. The added benefit is the ability to multiply the number of clients that can now send traffic, thus optimizing client-to-AP spatial stream diversity.
WI-FI OPTIMIZATION
Client optimization
Aruba’s patented AI-powered ClientMatch technology eliminates sticky client issues by steering a client to the AP where it receives the best radio signal. ClientMatch also dynamically teers traffic to load balance APs to improve the user experience.
Automated Wi-Fi radio frequency management
To optimize the user experience and provide greater stability, Aruba AirMatch allows organizations to automate network optimization using machine learning. AirMatch provides dynamic bandwidth adjustments to support changing device density and enhanced roaming using an even distribution of Effective Isotropic Radiated Power (EIRP) to radios, and real-time channel assignments to mitigate co-channel interference.
Application assurance
With Air Slice, organizations can provide application assurance to their users that goes beyond the traditional capabilities of airtime fairness. After the SLAs are configured, Air Slice monitors network usage, automatically allocates radio resources, and dynamically adjusts radio resources as new users connect and applications sessions begin or end.
Intelligent Power Monitoring (IPM)
Aruba 580 Series APs continuously monitor and report
hardware energy consumption and temperature. APs can
be configured to enable or disable capabilities based on
the available PoE power – ideal when wired switches have
exhausted their power budget. Additionally, with IPM, if the
AP gets too close to the maximum temperature limit, it can
disable features to prevent overheating.
Aruba Advanced Cellular Coexistence (ACC)
Unique to Aruba, Advanced Cellular Coexistence uses built-in
filtering to automatically minimize the impact of interference
from cellular networks, distributed antenna systems (DAS),
and commercial small cell or femtocell equipment.
IOT CAPABILITIES
High power Bluetooth and Zigbee
The Aruba 580 Series is the first Aruba access point to
feature a high-powered Bluetooth and 802.15.4/Zigbee
radio, ensuring maximum range and performance for IoT
applications. Built in Bluetooth and Zigbee capabilities
simplify deploying and managing IoT-based location
services, asset tracking services, security solutions and IoT
sensors and allows organizations to leverage the Aruba 580
Series as an IoT platform. There is no need for an overlay
infrastructure or additional IT resources.
Advanced IoT coexistence (AIC)
Built-in filtering allows Wi-Fi and Bluetooth/Zigbee radios
to operate at maximum capacity without the impact
of interference.
Target Wake Time (TWT)
Ideal for IoT solutions that communicate infrequently, this Wi-Fi 6 capability allows IoT devices to use 802.11ax protocol. TWT coordinates with client IoT devices to allow them to sleep for extended periods and use shorter wake times to communicate before returning to sleep. This substantially extends the useful operating life of Wi-Fi 6 based, batterypowered sensors.
ARUBA SECURE INFRASTRUCTURE
The Aruba 580 Series is an integral part of Aruba’s SASE and zero trust security approach to help protect user authentication and wireless traffic. Select capabilities include:
WPA3 and Enhanced Open
With the introduction of WPA3 and Enhanced Open, a Wi-Fi 6 certified client will never send unencrypted traffic over the air. Even with an open authenticated network, Enhanced Open still provides strong encryption over the air. In all Wi‑Fi 6 user sessions, each user is uniquely encrypted and if they disconnect and reconnect, the encryption changes from session to session.
WPA2-MPSK
MPSK enables simpler passkey management for WPA2 devices – should the Wi-Fi password on one device change, no additional changes are needed for other devices. This feature is enabled when networks are deployed with ClearPass Policy Manager.
SIMPLE AND SECURE ACCESS
To improve security and ease of management, IT can centrally configure and automatically enforce role-based policies that define proper access privileges for employees, guests, contractors, and other user groups – no matter where users connect on wired and wireless networks. Dynamic Segmentation eliminates the time consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic secure and separated.
FLEXIBLE OPERATION AND MANAGEMENT
Our unified APs can operate as standalone access points or with a gateway for greater scalability, security, and manageability. APs can be deployed using zero touch provisioning – without on-site technical expertise – for ease of implementation. Aruba APs can be managed using cloud-based or on premises solutions for any campus, branch, or remote work environment. As the management and orchestration console for Aruba ESP (Edge Services Platform), Aruba Central provides a single pane of glass for overseeing every aspect of wired and wireless LANs, WANs, and VPNs. AI-powered analytics, end-to-end orchestration and automation, and advanced security features are built natively into the solution.
ADDITIONAL WI-FI FEATURES
Transmit Beamforming (TxBF)
Increased signal reliability and range
Passpoint Release 2
Seamless cellular-to-Wi-Fi carryover for guests
Dynamic Frequency Selection (DFS)
Optimized use of available RF spectrum
Maximal Ratio Combining (MRC)
Improved receiver performance for multi antenna access points.
Cyclic Delay/Shift Diversity (CDD/CSD)
Enable use of multiple transmit antennas
Space-Time Block Coding (STBC)
Increased connection robustness
Low-Density Parity Check (LDPC)
High performance error detection and correction coding for enhanced receiver performance
Key Features:
- Dual-radio (dual 4x4 MIMO) high-power 802.11ax AP with up-and downlink OFDMA and Multi-User MIMO (MUMIMO)
- Maximum combined data rates of 2.9Gbps (HE80/HE20) in the most real-world settings, with a maximum 5GHz
throughput of 2.4Gbps in 4SS HE80 (or 2SS HE160) and 574Mbps in the 2.4GHz band
- Support for 5Gbps NBase-T Ethernet, up to 10Gbps SFP+, and 1Gbps (w/PoE Out)
- Operate with 802.3bt Class 6 PoE or AC power, with reduced capabilities on 802.3at using IPM
- Ideal for large scale outdoor environments including universities, large enterprises, and industrial applications
- High power Bluetooth and Zigbee radio for IoT connectivity with support for maximum range and performance
- Aruba Intelligent Power Monitoring (IPM) which allows the AP to operate if there is not enough PoE power as well as manage heat to prevent overheating in the most extreme environments
- State of the art security with WPA3 and Enhanced open
Specifications:
| HARDWARE VARIANTS |
- AP-584
- Four dual-band Nf connectors for external antenna operation
- One 2.4Ghz IoT Nf connector for the Bluetooth/Zigbee radio
- 5dBi omni-directional antenna included
- AP-585
- Built in omni-directional antennas (H and V polarized)
- 5Ghz Antennas 4.5dBi uncorrelated avg (5.8dBi peak)
- 2.4GHz Antennas 3.0dBi uncorrelated avg (4.4dBi peak)
- Bluetooth Antenna 4.8dBi peak
- AP-587
- Built in directional antennas (H, V, and +/-45 polarized)
- 5Ghz Antennas 5.2dBi uncorrelated avg (6.6dBi peak)
- 2.4Ghz Antennas 5.7dBi uncorrelated avg (5.8dBi peak)
- Bluetooth Antenna 6.3dBi peak
|
| WI-FI RADIO SPECIFICATIONS |
- AP type: Outdoor Hardened, Wi-Fi 6 dual radio, 5GHz and 2.4GHz 802.11ax 4x4 MIMO
- 5GHz radio: Four spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with individual 4SS HE80 (or 2SS HE160) 802.11ax client devices, or with four 1SS or two 2SS HE80 802.11ax MU-MIMO capable client devices simultaneously
- 2.4GHz radio: Four spatial stream Single User (SU) MIMO for up to 1,150Mbps wireless data rate with individual 4SS HE40 802.11ax client devices or with two 2SS HE40 802.11ax MU-MIMO capable client devices simultaneously.
- Support for up to 1,024 associated client devices per radio (typical recommended limit for active outdoor clients is 100-200 depending on distance), and up to 16 BSSIDs
per radio
- Supported frequency bands (country-specific restrictions apply):
- 2.400 to 2.4835GHz
- 5.150 to 5.250GHz
- 5.250 to 5.350GHz
- 5.470 to 5.725GHz
- 5.725 to 5.850GHz
- Available channels: Dependent on configured regulatory domain
- Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
- Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
- 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 37 resource units (for an 80MHz channel)
- Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
- 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
- 802.11n high-throughput (HT) support: HT20/40
- 802.11ac very high throughput (VHT) support: VHT20/40/80/160
- 802.11ax high efficiency (HE) support: HE20/40/80/160
- Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: 6.5 to 600 (MCS0 to MCS31, HT20 to HT40), 800 with 256-QAM
- 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160), 2,166 with 1024-QAM
- 802.11ax (2.4GHz): 3.6 to 1,147 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE40)
- 802.11ax (5GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)
- 802.11n/ac packet aggregation: A-MPDU, A-MSDU
- Transmit power: Configurable in increments of 0.5 dBm
- Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
- 2.4 GHz band: +29 dBm (23dBm per chain)
- 5 GHz band: +28 dBm (22 dBm per chain)
- Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.
- Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks
- Maximum ratio combining (MRC) for improved receiver performance
- Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
- Space-time block coding (STBC) for increased range and improved reception
- Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
- Transmit beam-forming (TxBF) for increased signal reliability and range
- 802.11ax Target Wait Time (TWT) to support low-power client devices
- Advanced IoT Existence (AIC) allows for concurrent operation of the IoT and 2.4Ghz radios without issue
|
| WI-FI Antennas |
- AP-584: Four Nf connectors for external dual band antennas (WIFI0 through WIFI3, corresponding with radio chains 0 through 3), and one Nf connector for BT (includes 5dBi 2.4Ghz omni-directional antenna). Worst-case internal loss between radio interface and external antenna connectors: 0.8dB in 2.4GHz(WiFi), 0.8dB in 2.4GHz(BT) and 1.0dB in 5GHz.
- AP-585: Four integrated dual-band omni-directional
antennas for 4x4 MIMO with peak antenna gain of 4.4dBi
in 2.4GHz and 5.8dBi in 5GHz. Built-in antennas are
optimized for a horizontally mounted orientation of the
AP. The downtilt angle for maximum gain is roughly 10
degrees.
- A mix of horizontally and vertically polarized antenna elements are used
- Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 3.0dBi in 2.4GHz and 4.5dBi in 5GHz.
- AP-587: Four integrated dual-band directional antennas for 4x4 MIMO with peak antenna gain of 5.8dBi in 2.4GHz and 6.6dBi in 5Ghz. Built-in antennas are optimized for a
vertically oriented installation to a wall or pole.
- A mix of horizontal, vertical, and +/-45 degree antenna elements are used
- Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 5.7dBi in 2.4Ghz, and 5.2dBi in 5Ghz
|
| OTHER INTERFACES |
- Wired network interface (E0)
- 100/1000/2500/5000Base-T Ethernet
- 5Gbps Smart Rate: NBase-T, 802.3bz
- PoE PD support on E0
- IEEE/802.3az support
- Support for jumbo frames (MTU up to 9,216 bytes)
- Wired network interface (E1)
- 10GBASE-R SFP+ port
- IEEE/802.3az support (as applicable)
- Support for jumbo frames (up to 9,216 bytes)
- 1 x SFP+ cage
- When used in operation it is expected that this is the
primary uplink port
- Only recommended industrial temperature SFP/SFP+
modules should be used for optimal performance
- Wired network interface (E2)
- 10/100/1000BaseT Ethernet
- IEEE/802.3az support (as applicable)
- Support for jumbo frames (up to 9,216 bytes)
- Support for PoE PSE of 802.3af (may be able to reach 802.3at PSE with IPM policy if needed depending on temperature and load)
- AC power interface: 110-240V (requires AP-AC-MLX power connector kit)
- Bluetooth (BT5.0) and Zigbee (802.15.4) radio
- BT: up to 8dBm transmit power (class 2) and -98dBm
receive sensitivity (125kbps)
- Zigbee: up to 8dBm transmit power and -96dBm receive
sensitivity
- Visual indictors (multi-color LED): for System and Radio status
- Reset button: factory reset, LED mode control (normal/off)
- USB-C console interface
- Shielded Twisted Pair (STP) Ethernet cable should be used on all Ethernet interfaces for proper surge protection
|
| POWER SOURCES AND POWER CONSUMPTION |
- The AP supports direct AC power and Power over Ethernet (POE; on port E0 only)
- When both AC and POE power sources are available, AC power takes priority over POE
- Power sources are sold separately; see the ordering Information section below for details
- See below conditions for each power configuration:
- When powered by AC, the AP will operate without
restrictions, including 802.3af/at support (with upper
thermal limitations).* With IPM enabled, the AP will
adjust power requirements to meet requirements, and
will reduce according to established IPM policy
- When powered by 802.3bt Class 6, the AP will operate
without restriction, limited to 802.3af PSE support.* With
IPM enabled, the AP will adjust power requirements
to meet requirements, and will reduce according to
established IPM policy
- When powered by 802.3bt Class 5 with LLDP, full
function but no PSE support*
- When powered by 802.3at, AP will reduce 2.4Ghz to 1
chain, and will reduce the 5Ghz to 3 chains, no PsE out*
- When powered by 802.3af, the AP will boot up, but not
enable any radios, regardless of IPM settings.
- With IPM enabled, the AP will adjust power requirements to meet requirements, and will reduce power as necessary according to the established IPM policy
- Maximum (worst-case) power consumption:
- AC powered: 71W (802.3af/at*)
- POE powered (802.3bt Class 6): 49.5W (802.3af PSE only)
- POE powered (802.3bt Class 5 with LLDP): 35.5W
(no PSE)
- POE powered (802.3at, IPM disabled): 25.5W (1 chain @
2.4Ghz, 3 chains @ 5Ghz, no PSE)
- Maximum (worst-case) power consumption in idle mode: 9.2W (POE) or 10.8W (AC)
- Maximum (worst-case) power consumption in deep-sleep mode: 3.0W (POE) or 4.4W (AC)
|
| MOUNTING DETAILS |
- AP-OUT-MNT-V1A – Long arm wall or pole mounting bracket
- AP-270-MNT-H1 – Single-tilt mounting bracket for wall or ceiling
- AP-270-MNT-H2 – Flush ceiling or wall mounting bracket
- AP-270-MNT-H3 – Dual-tilt mounting bracket for wall or ceiling
|
| MECHANICAL SPECIFICATIONS |
- AP-584
- Dimensions/weight (AP-584 unit only):
- 324mm (W) x 312mm (D) x 244mm (H) / 12.6” (W) x 12.3” (D) x 9.6” (H)
- 5.52kg / 11.5lbs
- Dimensions/weight (AP-584 shipping pkg, no mount):
- 410mm (W) x 322mm (D) x 433mm (H) / 16.1” (W) x 12.7” (D) x 17” (H)
- 7.56kg / 16.8lbs
- AP-585
- Dimensions/weight (AP-585 unit only):
- 324mm (W) x 313mm (D) x 320mm (H) / 12.6” (W) x 12.3” (D) x 12.7” (H)
- 5.24kg / 11.5lbs
- Dimensions/weight (AP-585 shipping pkg, no mount):
- 431mm (W) x 415mm (D) x 442mm (H) / 17” (W) x 16.3” (D) x 17.4” (H)
- 7.81kg / 17.2lbs
- AP-587
- Dimensions/weight (AP-587 unit only):
- 302mm (W) x 300mm (D) x 174mm (H) / 11.9” (W) x 11.8” (D) x 6.9” (H)
- 4.51kg / 9.9lbs
- Dimensions/weight (AP-587 shipping pkg, no mount):
- 385mm (W) x 272mm (D) x 433mm (H) / 15.2” (W) x 10.7” (D) x 17” (H)
- 6.03kg / 13.3lbs
|
| ENVIRONMENTAL SPECIFICATIONS |
- Operating conditions:
- Temperature: -40°C to +65°C / -40°F to +149°F with full solar loading
- Humidity: 5% to 93% non-condensing internal
- Rated for operation in all weather conditions
- Storage and transportationn conditions:
- Temperature: -40°C to +70°C / -40°F to +158°F
- Operating Altitude: 3,000 m
- Water and Dust: IP66/67
- Salt Tolerance: Tested to ASTM B117-07A Salt Spray 200hrs
|
| RELIABILITY |
| Mean Time Between Failure (MTBF): 828,651hrs (~95yrs) at +25°C operating temperature. |
| REGULATORY COMPLIANCE |
- FCC/ISED
- CE Marked
- RED Directive 2014/53/EU
- EMC Directive 2014/30/EU
- Low Voltage Directive 2014/35/EU
- UL/IEC/EN 60950-1
- UL/IEC/EN 62368-1
- IEC 60950-22
- IEC/EN60601-1-2
- EN 50155
For more country-specific regulatory information and approvals, please see your Aruba representative. |
| REGULATORY MODEL NUMBERS |
- AP-584: APEX0584
- AP-585: APEX0585
- AP-587: APEX0587
|
| CERTIFICATIONS |
- Wi-Fi Alliance:
- Bluetooth SIG
- Ethernet Alliance (E0, PoE PD device, class 6; E2, PoE
PSE device, class 3)
|
| WARRANTY |
- Aruba’s hardware limited lifetime warranty.
|
| MINIMUM OPERATING SYSTEM SOFTWARE VERSIONS |
- ArubaOS and Aruba InstantOS 8.10.0.0
|
* In some power configurations and conditions, 802.3at may not support the full 30W.
