Aruba 575EX Outdoor Access Points
High performance Wi-Fi 6 (802.11ax) for hazardous locations and harsh outdoor environments

Aruba AP-570EX Outdoor Access Point

Aruba Networks Products
Aruba Unified Outdoor Access Point

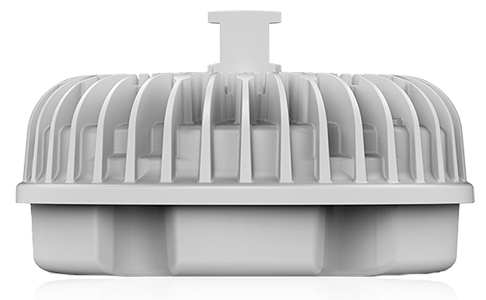

Aruba AP-575EX Outdoor 11ax Hazloc AP
#R4W34A
List Price: $3,300.00
Our Price: $2,417.42

Click here to jump to more pricing!

Overview:

High-performance Wi-Fi 6 (802.11ax) connectivity for hazardous outdoor environments such as oil fields, mining facilities, and potentially explosive environments.

In outdoor and environmentally challenging locations such as oil rigs, mining facilities, and industrial plants, networks need to be protected from extreme temperatures, flammable gases or vapors, and dust concentrations. With Class 1 Division 2 and ATEX Zone 2 certifications, the 570EX Series Access Points deliver reliable Wi-Fi 6 performance to the most extreme environments.

The 570EX delivers 4x4:4SS MU-MIMO capability, Aruba ClientMatch and integrated Bluetooth to enable Aruba location services. Purpose-built to survive in the harshest industrial outdoor environments, 570EX Series APs withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection.

Aruba Wi-Fi 6 access points provide high-performance connectivity in dense mobile and IoT environments. With maximum aggregate on air data rates of 3 Gbps (HE80/HE40), the 570EX Series APs deliver the speed and reliability needed for demanding environments.

Available Models for 570EX Series

Ultra-reliable, high performance

Delivers maximum performance to the most extreme outdoor hazardous environments requiring Class 1 Division 2 or ATEX Zone 2 requirements.

High efficiency

Built for Wi-Fi 6 standards and high-density outdoor connectivity, the 570EX Series APs maximize performance and efficiency. Supports OFDMA and MU-MIMO technologies enabling the most efficient communication between the client and access points.

IoT platform and location-ready

Supports 802.15.4/Zigbee and Bluetooth to simplify the deployment and management of IoT location-based services, asset-tracking services, security solutions, and IoT sensors. Target Wake Time (TWT) improves client power savings and reduces airtime contention with other clients.

Flexible, secure infrastructure

Delivers secure, unified connectivity for wired and wireless clients with Zero Trust Security and Dynamic Segmentation. Easy to deploy with either cloud-based or on-premise management.

High performance, centrally managed in critical situations

Ensures predictable, secure, and optimized connectivity with centralized policy management for large, outdoor, harsh weather events and environments.

Class 1 Division 2 and ATEX Zone 2-Certified

For the most extreme indoor and outdoor areas with ignitable concentrations of flammable gases, vapors, or liquids.

Wi-Fi 6 for hazardous location environments

Handles multiple clients and drives efficiency with OFDMA and TWT capabilities.

Supports 512-associated clients per radio

Connects double clients per radio and a maximum aggregate data rate of 2.69 Gbps maximum real-world speed (HE80/HE20).


IoT-ready Bluetooth 5 and 802.15.4/Zigbee support

Simplifies deploying and managing IoT location services, asset-tracking services, security solutions, and IoT sensors.

Flexible deployment options

Deployed as cloud-based (Aruba Central) or multi-vendor (Aruba Airwave) and is controller-less (virtual) or controller-based.

Features and Benefits:

INCREDIBLE EFFICIENCY

The 570EX Series APs are designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.

Advantages of OFDMA
This capability allows Aruba Wi-Fi 6 APs to handle multiple Wi-Fi 6 enabled clients simultaneously on a single radio. Channel utilization is optimized per transaction by matching allocated bandwidth in a channel to the offered user load. These sub divisions of the channel are referred to as Resource Units (RUs).

Aruba Air Slice for Extended OFDMA Assurance
Initially, APs in controller-less mode (Instant) can provide SLAgrade performance by allocating RUs to specific traffic types. By combining Aruba’s Policy Enforcement Firewall (PEF) and Layer 7 deep packet inspection (DPI) to identify user roles and applications, the APs will dynamically allocate the bandwidth needed. Non-Wi-Fi 6 clients can also benefit.

Multi-User MIMO (MU-MIMO)
The 570EX Series APs support downlink MU-MIMO similar to Wi-Fi 5 (802.11ac Wave 2) APs. With the introduction OFDMA in Wi-Fi 6, the overhead for this capability is reduced and MUMIMO effectiveness is substantially improved for large client counts.

Wi-Fi 6 and MU-MIMO aware client optimization
Aruba’s patented AI-powered ClientMatch technology ensures that all clients are attached to their best serving Access Point. Session metrics, network metrics, applications and client type are used to identify and maintain the best connection.

Advanced Cellular Coexistence (ACC)
The ACC feature uses built in filtering to automatically minimize the impact of interference of high power cellular base stations, in building distributed antenna systems as well as small cell and femtocell equipment.

Intelligent Power Monitoring (IPM)
Aruba APs continuously monitor and report hardware energy consumption. APs can be configured to enable or disable capabilities based on the available PoE power – ideal when wired switches have exhausted their power budget.


IOT PLATFORM CAPABILITIES

Aruba Wi-Fi 6 APs include an integrated Bluetooth 5 and
802.15.4 radio (for Zigbee support) to simplify deploying and managing IoT-based location services, asset tracking services, security solutions and IoT sensors. This allow organizations to leverage the 570EX Series as an IoT platform, which eliminates the need for an overlay infrastructure and additional IT resources.

Target Wake Time (TWT)
Ideal for IoT solutions that communicate infrequently, this Wi-Fi 6 capability allows IoT devices to use 802.11ax protocol. TWT coordinates with client devices to allow them to sleep for extended periods and use shorter wake times to communicate before returning to sleep. This substantially extends the useful operating life of Wi-Fi 6 based battery powered sensors.


ARUBA SECURE INFRASTRUCTURE

The Aruba 570EX Series is an integral part of Aruba’s zero trust security approach to help protect user authentication and wireless traffic. Select capabilities include:

WPA3 and Enhanced Open
With the introduction of WPA3 and Enhanced Open, a Wi-Fi 6 certified client will never send unencrypted traffic over the air. Even with an open authenticated network, Enhanced Open still provides strong encryption over the air.

In all Wi-Fi 6 user sessions, each user is uniquely encrypted and if they disconnect and reconnect, the encryption changes from session to session.

WPA2-MPSK
MPSK enables simpler passkey management for WPA2 devices – should the Wi-Fi password on one device change, no additional changes are needed for other devices. This feature is enabled when networks are deployed with ClearPass Policy Manager.

VPN Tunnels
In Remote AP (RAP) and IAP-VPN deployments, the Aruba 570EX Series can be used to establish a secure SSL/IPSec VPN tunnel to a Gateway or Mobility Controller that is configured as a VPN concentrator.

Trusted Platform Module (TPM)
For enhanced device assurance, all Aruba APs have an installed TPM for secure storage of credentials, keys and boot code.


SIMPLE AND SECURE ACCESS

To simplify policy enforcement, the Aruba 570EX Series uses Aruba’s Policy Enforcement Firewall (PEF) to encapsulate all traffic from the AP to the Mobility Controller (gateway) for end-to-end encryption and inspection. Policies are applied based on context including user role, device type, application, and location. This reduces the manual configuration of SSIDs, VLANs, and ACLs. PEF also serves as the underlying technology for Aruba Dynamic Segmentation.


HIGH DENSITY CONNECTIVITY

Each 570EX Series AP provide connectivity for a maximum of 512 associated clients per radio (1024 total).

Flexible Operation and Management
A unique feature of Aruba APs is the ability to operate in either controller-less or controller-based mode.

Controller-less (Instant) Mode
In controller-less mode, one AP serves as a virtual controller for the entire network.

Mobility Controller Mode
For optimized network performance, roaming and security, APs tunnel all traffic to a mobility controller for central management of traffic forwarding, segmentation, encryption, and policy enforcement.

Management Options
Available management choices include Aruba Central (cloud- based) or Aruba AirWave (multi-vendor, on prem) solutions.

For large installations across multiple sites, Aruba APs can be shipped and activated with Zero Touch Provisioning through Aruba Central or AirWave. This reduces deployment time, centralizes configuration, and provides inventory visibility.


ADDITIONAL WI-FI FEATURES

Transmit Beamforming (TxBF)
Increased signal reliability and range

Passpoint Release 2
Seamless cellular-to-Wi-Fi carryover for guests

Dynamic Frequency Selection (DFS)
Optimized use of available RF spectrum

Maximal Ratio Combining (MRC)
Improved receiver performance for multi antenna access points.

Cyclic Delay/Shift Diversity (CDD/CSD)
Enable use of multiple transmit antennas

Space-Time Block Coding (STBC)
Increased connection robustness

Low-Density Parity Check (LDPC)
High performance error detection and correction coding for enhanced receiver performance.

Specifications:

Hardware variants
  • AP-575EX
    • Built in Omni Directional Antennas
    • 5 GHz Antennas 5dBi
    • 2.4GHz Antennas 3.4dBi
    • BLE/Zigbee: Integrated omnidirectional antenna and the peak gain of 6dBi
  • AP-577EX
    • Built in 90°H x 90°V Directional Antennas
    • 5 GHz Antennas 5.6dBi
    • 2.4 GHz Antennas 6.8dBi
    • BLE/Zigbee: Integrated omnidirectional antennas with peak gain of 8.4dBi
Wi-Fi radio specifications
  • AP type: Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 4x4 MIMO and 2.4 GHz 2x2 MIMO
  • Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
Wi-Fi antennas
  •  AP-655: Integrated downtilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 4.8dBi in 2.4GHz, 5.3dBi in 5GHz and 5.4dBi in 6GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 to 40 degrees.
    • Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 3.3dBi in 2.4GHz, 2.9dBi in 5GHz and 4.0dBi in 6GHz.

5 GHz:

  • Four spatial stream Single User (SU) MIMO for up to 4.8 Gbps wireless data rate to individual 4SS HE160 Wi-Fi 6 client device (max)
  • Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate to individual 2SS HE80 Wi-Fi 6 client device (typical)
  • Four spatial stream Multi User (MU) MIMO for up to 4.8 Gbps wireless data rate to up to four 1SS or two 2SS HE160 Wi-Fi 6 DL-MU-MIMO capable client devices simultaneously (max)
  • Four spatial stream Multi User (MU) MIMO for up to 2.4 Gbps wireless data rate to up to four 1SS or two 2SS HE80 Wi-Fi 6 DL-MU-MIMO capable client devices simultaneously (typical)

2.4 GHz:

  • Two spatial stream Single User (SU) MIMO for up to 575 Mbps wireless data rate to individual 2SS HE40 Wi-Fi 6 client device (max)
  • Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 Wi-Fi 6 client device (typical)
  • Support for up to 512 associated client devices per radio, and up to 16 BSSIDs per radio
  • Supported frequency bands (country-specific restrictions apply):
    • 2.400 to 2.4835 GHz
    • 5.150 to 5.250 GHz
    • 5.250 to 5.350 GHz
    • 5.470 to 5.725 GHz
    • 5.725 to 5.850 GHz
    • 5.825 to 5.875 GHz
  •  Available channels: Dependent on configured regulatory domain.
  • Dynamic frequency selection (DFS) optimizes the use of available RF spectrum.
  • Supported radio technologies:
    • 802.11b: Direct-sequence spread-spectrum (DSSS)
    • 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
    • 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (RU)
  • Supported modulation types:
    • 802.11b: BPSK, QPSK, CCK
    • 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
    • 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM,
    • 1024 QAM (proprietary extension)
    • 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024 QAM
  • 802.11n high-throughput (HT) support: HT 20/40 802.11ac very high throughput (VHT) support: VHT 20/40/80/160
  • 802.11ax high efficiency (HE) support: HE20/40/80/160
  • Supported data rates (Mbps):
    • 802.11b: 1, 2, 5.5, 11
    • 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
    • 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)
    • 802.11n (5GHz): 6.5 to 600 (MCS0 to MCS31, HT20 to HT40)
    • 802.11ac: (5 GHz): 6.5 to 3,467 (MCS0 to MCS9, NSS = 1 to 4 for VHT20 to VHT160)
    • 802.11ax (2.4GHz): 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
    • 802.11ax (5GHz): 8.6 to 4803 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)
  • 802.11n/ac packet aggregation: A-MPDU, A-MSDU
  • Transmit power: Configurable in increments of 0.5 dBm
  • Maximum (conducted) transmit power (limited by local regulatory requirements):
    • 2.4 GHz band: +22 dBm per chain, +25dBm aggregate (2x2)
    • 5 GHz band: +22 dBm per chain, +28dBm aggregate (4x4)
    • Note: conducted transmit power levels exclude antenna gain.
  •  Maximum EIRP (limited by local regulatory requirements):
    • 2.4 GHz band:
      • 575EX: 29.0 dBm EIRP
      • 577EX: 34.4 dBm EIRP
    • 5 GHz band:
      • 575EX: 32.6 dBm EIRP
      • 577EX: 36 dBm EIRP
  • Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks.
  • Maximum ratio combining (MRC) for improved receiver performance.
  • Cyclic delay/shift diversity (CDD/CSD) to enable the use of multiple transmit antennas
  • Short guard interval for 20-MHz, 40-MHz, 80-MHz and 160-MHz channels.
  • Space-time block coding (STBC) for increased range and improved reception.
  • Low-density parity check (LDPC) for high-efficiency error correction and increased throughput.
  • Transmit beam-forming (TxBF) for increased signal reliability and range.
POWER
  • Maximum (worst-case) power consumption:
    • POE powered (dual ports): 32.0W
    • POE powered (single port, full function): 26.1W
  • Maximum (worst-case) power consumption in idle mode: 14.0W (single POE) or 16.0W (dual POE)
  • Maximum (worst-case) power consumption in deep-sleep mode: 2.9W (single POE) or 3.9W (dual POE)
  • The AP supports Power over Ethernet (POE; on port E0 and/or E1)
  • When POE power is supplied to both Ethernet ports, the AP can be configured to combine or prioritize power sources
  • Power sources are sold separately; see the ordering Information section below for details
  • When powered by 1x 802.3at (class 4) POE and with the IPM feature disabled, the AP will disable the other Ethernet port. In the same configuration but with IPM enabled, the AP will start up in unrestricted mode, but may dynamically apply restrictions depending on the POE budget and actual power. The feature restrictions and order can be programmed.
  • Operating the AP with single or dual 802.3af (class 3 or lower) POE source is not supported.
ADDITIONAL INTERFACES
  • E0: HPE SmartRate port (RJ-45)
    • Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
    • 2.5Gbps speed complies with NBase-T and 802.3bz specifications
    • PoE-PD: 48Vdc (nominal) 802.3at/bt (Class 4 or higher)
    • 802.3az Energy Efficient Ethernet (EEE)
  • E1: 100/1000BASE-T (RJ-45)
    • Auto-sensing link speed and MDI/MDX
    • 802.3az Energy Efficient Ethernet (EEE)
    • PoE-PD: 48Vdc (nominal) 802.3at/bt (Class 4 or higher)
  • Link Aggregation (LACP) support between both network ports for redundancy and increased capacity
  • Bluetooth 5 and 802.15.4 radio
    • 2.4 GHz
    • Bluetooth 5: up to 8dBm transmit power and -95dBm receive sensitivity
    • Zigbee: up to 8 dBm transmit power and -97dBm receive sensitivity
    • Up to 4dBm transmit power (class 2) and -91 dBm receive sensitivity
  •  Visual indicator (multi-color LED): For system and radio status
  • Reset button: Factory reset (during device power up)
  • USB-C console interface
MOUNTING
  • AP-270-MNT-V1
  • AP-270-MNT-V2
  • AP-270-MNT-H1
  • AP-270-MNT-H2
MECHANICAL

AP-575EX

  • Dimensions/weight (excluding mount):
    • 24 cm (W) x 24 cm (D) x 27 cm (H)/ 9.4″ (W) x 9.4″ (D) x 10.6″ (H)
    • 2.5kg/5.6lbs

AP-577EX

  • Dimensions/weight (excluding mount):
    • 23 cm (W) x 22 cm (D) x 14 cm (H)/ 9.0″ (W) x 8.7″ (D) x 5.6″ (H)
    • 2.1 kg/4.6 lbs
ENVIRONMENTAL
  • Operating:
    • Temperature: -40°C to +65°C (-40°F to +149°F) with full solar loading
    • Humidity: 5% to 93% non-condensing internal
    • Rated for operation in all weather conditions
  • Storage and transportation:
    • Temperature: -40° C to +70° C (-40°F to +158°F)
  • Operating Altitude: 3,000 m
  • Water and Dust
    • IP66/67
  • Salt Tolerance
    • Tested to ASTM B117-07A Salt Spray 200hrs
  • Wind Survival: Up to 165 Mph
  • Shock and Vibration ETSI 300-19-2-4
REGULATORY
  • FCC/ISED
  • CE Marked
  • RED Directive 2014/53/EU
  • EMC Directive 2014/30/EU
  • Low Voltage Directive 2014/35/EU
  • UL/IEC/EN 60950
  • EN 60601-1-1, EN60601-1-2
For more country-specific regulatory information and approvals, please see your Aruba representative.
REGULATORY MODEL NUMBER
  • AP-575EX: APEX0575
  • AP-577EX: APEX0577

For more country-specific regulatory information and approvals, please see your Aruba representative.

CERTIFICATIONS
  • CB Scheme Safety, cTUVus • UL2043 plenum rating
  • Wi-Fi Alliance certified 802.11a/b/g/n/
  • Wi-Fi CERTIFIED™ 6 (802.11ax)
  • Wi-Fi CERTIFIED™ ac (with Wave 2 features)
  • Passpoint® (Release 2) with ArubaOS and Instant
  • Class 1 Div 2
  • ATEX Zone 2
WARRANTY
  • Limited Lifetime Warranty
Minimum Operating System Software
  • ArubaOS & Aruba InstantOS 8.7.0.0

Pricing Notes:

Aruba Networks Products
Aruba Unified Outdoor Access Point
Aruba AP-575EX Outdoor 11ax Hazloc AP
#R4W34A
List Price: $3,300.00
Our Price: $2,417.42
Add Mounting Bracket
The V1 and V2 brackets are most commonly used with AP-574/575. The H1,H2 and H3 brackets are most commonly used to wall mount an AP-577 or to hang the AP-574/575 from a horizontal surface.
AP-270-MNT-V1 270 Series Outdoor Pole/Wall Long Mount Kit
#JW052A
List Price: $160.00
Our Price: $117.21
AP-270-MNT-V2 270 Series Outdoor Pole/Wall Short Mount Kit
#JW053A
List Price: $135.00
Our Price: $98.89
AP-270-MNT-H1 AP-270 Series Outdoor AP Hanging or Tilt Install Mount Kit
#JW054A
List Price: $135.00
Our Price: $98.89
AP-270-MNT-H2 AP-270 Series Access Flush Wall or Ceiling Mount
#JW055A
List Price: $70.00
Our Price: $51.28
Add PoE Powering Accessories For Units To Be PoE Powered
Note: These PoE injectors are not HazLoc rated and must be deployed in a non-rated area. Or, use 3rd party ATEX/C1D2 rated PoE injectors, ATEX/C1D2 802.3bt/at rated switches, or the proper ATEX/C1D2 rated enclosures.
Aruba AP-POE-ATSR 1-Port Smart Rate 802.3at 30W Indoor midspan injector
#R6P67A
List Price: $171.00
Our Price: $125.27
AP-POE-BTSR 1-Port Smart Rate 802.3bt 60W Indoor Midspan Injector
Note: Add AC power cord
#R1C73A
List Price: $226.00
Our Price: $165.55
PD-9001GR-AC 30W 802.3at PoE+ 10/100/1000 Ethernet Indoor Rated Midspan Injector
#JW629A
List Price: $155.00
Our Price: $105.17
PD-9001GO-DC 30W 802.3at PoE+ 10/100/1000 12-24V DC in Outdoor Surge Prot Midspan Injector
#JW630A
List Price: $886.00
Our Price: $649.04
PD-9001GO-NA 30W 802.3at PoE+ 10/100/1000 Otdr Surge Prot NA Power Cord Mdspan Injector
#JW700A
List Price: $886.00
Our Price: $649.04
PD-9001GO-INTL 30W 802.3at PoE+ 10/100/1000 Outdoor Surge Prot Intl Power Cord Injector
*Backorder
#JW701A
Get a Quote!
PD-9501-5GCO-AC 60W 802.3bt Smart Rate Outdoor Surge Protection Midspan Injector
#R7T40A
List Price: $875.00
Our Price: $640.98
PD-9501-5GCO-DC 60W 802.3bt Smart Rate Outdoor Surge Protection Midspan Injector
#R7T41A
List Price: $875.00
Our Price: $640.98
Add Mounting Kit for Outdoor PoE Midspan Injector (Optional)
PD-MOUNT-OD Outdoor PoE Midspan Injectors Pole/Mast Mount Kit
#JW620A
List Price: $149.00
Our Price: $109.15
3-prong AC Power Cord For Indoor PoE Injector
Aruba AC Power Cord
#JW124A
List Price: $6.00
Our Price: $4.39
Spares of items that are shipped with the chasis (Optional)
Outdoor AP Covers and Glands 1-pk M25/5-pk M20 Cover/2-pk M16 Cover/5-pk M20 Gland/2-pk Ground Kit
#Q8N47A
List Price: $88.00
Our Price: $64.47
Thread adapters and accessories (Optional)
Outdoor AP Metric to Standard M20 to 1/2 inch NPT 5-pk Thread Adapter
#Q8N48A
List Price: $171.00
Our Price: $125.27
email subscribe

Enjoy Exclusive Weekly Deals from Virtual Graffiti
