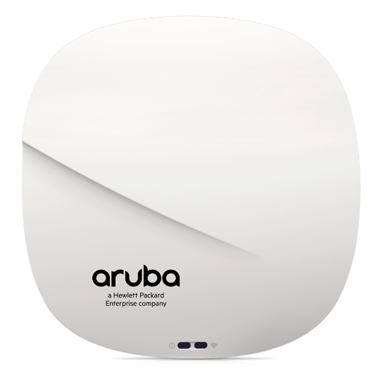

Aruba Instant AP-335 Access Point
802.11ac Wave 2 that scales up to multi-gig Ethernet
Sorry, this unit has been discontinued and is no longer available for purchase, the recommended replacement product is - Aruba AP-535 (US) Unified AP #JZ337A.
End of Sale (EOS) : 31-Oct-2021 - EOS dates are dependent upon the continued availability of stock, we strongly encourage customers to transition new orders to the replacement product that is identified.
End of Support (EOST): 31-Oct-2026 - After this date, all support services for the product are unavailable, and the product reaches End of Life.
Please Contact Us for stock availability, placing orders and/or better pricing.
Click here to jump to more pricing!
The Aruba 330 Series access points provide the fastest gigabit data speeds and superb user experience for mobile devices and applications in a digital workplace. Designed with an integrated HPE Smart Rate port to scale up to 5Gbps Ethernet, the 330 Series allows enterprises to leverage their multi-gigabit Ethernet wired network infrastructures to eliminate bottlenecks.
Thanks to ClientMatch technology, ArubaOS enables the 330 series to automatically detect and classify 802.11ac Wave 2 capable mobile devices. This allows ClientMatch to automatically collect Wave 2 capable devices under a single Wave 2 radio so that performance benefits of multi-user MIMO can be realized — without the adverse effects of slower 802.11ac and traditional 802.11n capable mobile devices. This means increased network capacity and a boost in network efficiency.
With a maximum concurrent data rate of 1,733 Mbps in the 5 GHz band and 800 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 2.5Gbps), the 330 Series Access Points deliver a best-in-class, next-generation 802.11ac Wi-Fi infrastructure that is ideal for lecture halls, auditoriums, public venues, and high-density office environments.
The high performance and high density 802.11ac 330 Series Access Points support 160 MHz channel bandwidth (VHT160), 4-stream multi-user MIMO (MU-MIMO) and 4 spatial streams (4SS). They provide simultaneous data transmission to multiple devices, maximizing data throughput and improving network efficiency.
The 330 Series Access Points have an integrated Bluetooth Aruba Beacon that simplifies the remote management of a network of large-scale battery-powered Aruba beacons while also providing advanced location and indoor wayfinding, and proximity-based push notification capabilities. It enables businesses to leverage mobility context to develop applications that will deliver an enhanced user experience and increase the value of the wireless network for organizations.
Leverage wired multi-gig NBASE-T-compatible Ethernet infrastructure to eliminate bottlenecks in high-density environments.
ClientMatch unleashes MU-MIMO
Aruba ClientMatch software groups Wave 2 clients together, enabling 4x4:4SS MU-MIMO. That means a faster, more efficient network.
Integrated Bluetooth Beacon
330 series APs have an integrated BLE Beacon to simplify management of a large-scale network of battery-powered Aruba Beacons.
Choose your operating mode
The Aruba 330 Series Access Points offer a choice of operating modes to meet your unique management and deployment requirements.
- Controller-managed mode – When managed by Aruba Mobility Controllers, Aruba 330 Series Access Points offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding.
- Aruba Instant mode – In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up one Instant AP, configure it over the air, and plug in the other APs – the entire process takes about five minutes. If WLAN requirements change, a built-in migration path allows the 330 Series Instant APs to become part of a WLAN that is managed by a Mobility Controller.
- Remote AP (RAP) for branch deployments
- Air monitor (AM) for wireless IDS, rogue detection and containment
- Spectrum analyzer, dedicated or hybrid, for identifying sources of RF interference
- Secure enterprise mesh
For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, the Instant APs are factory-shipped to any site and configure themselves when powered up.
Dual Radio 802.11ac access point with Multi-User MIMO
- Supports up to 1,733 Mbps in the 5 GHz band (with 4SS/VHT80 or 2SS/VHT160 clients) and up to 800 Mbps in the 2.4 GHz band (with 4SS/VHT40 clients)
Antenna polarization diversity for optimized RF performance
- Each 5 GHz radio chain has a switch and two antennas
- Software controlled; Horizontally and vertically polarized
HPE Smart Rate uplink port that scales up to 5Gbps
- Supports up to 5Gbps with NBase-T Ethernet compatibility
- Backwards compatible with 100/1000Base-T
- Adds support for hitless PoE failover between the HPE Smart Rate port and the secondary 1000Base-T port when both ports are powered
Support for additional 5 GHz bands
- Supports software upgrade to enable additional 5 GHz spectrum when governments expand available frequencies
Built-in Bluetooth Low-Energy (BLE) radio
- Enables location based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time
Advanced Cellular Coexistence (ACC)
- Minimizes interference from 3G/4G cellular networks, distributed antenna systems and commercial small cell/femtocell equipment
Quality of service for app visibility and control
- Supports priority handling and policy enforcement for unified communication apps, including Skype for Business with encrypted videoconferencing, voice, chat and desktop sharing
- Aruba AppRF technology leverages deep packet inspection to classify and block, prioritize or limit bandwidth for over 1,500 enterprise apps or groups of apps
- Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-performance WLANs
- The Aruba 330 Series APs can be configured to provide part-time or dedicated air monitoring for spectrum analysis and wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available
- Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4 GHz and 5 GHz radio bands to identify sources of RF interference from HT20 through VHT160 operation
- Integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances
- IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats
- Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys
- SecureJack-capable for secure tunneling of wiredEthernet traffic
Intelligent Power Monitoring (IPM)
- Enables the AP to continuously monitor and report its actual power consumption and optionally make autonomous decisions to disable certain capabilities based on the amount of power available to the unit
- Software configurable to disable capabilities in certain orders. For the 330 Series APs, by default, the USB interface will be the first feature to turn off if the AP power consumption exceeds the available power budget
Aruba Instant Wi-Fi:
- Up to 36%* faster than competition at high density.
- Wi-Fi setup in minutes.
- Airtime fairness allows more clients to move faster on the network.
- Always-on scanning avoids performance-slowing interference.
- Aruba Instant APs optimize Wi-Fi channel use and power to speed-up clients.
Most resilient network
- 100% functional WLAN without a WAN link.
- Integrated spectrum management without compromise to identify and self- heal around Wi-Fi and non-Wi-Fi interference.
- Redundant ISP uplink and 3G/4G uplink option.
Most flexible architecture
- Single architecture across headquarters, branch and home.
- Local, cloud and on-premises management options.
- AppRF technology performs deep packet inspection and web content filtering.
- Internal RADIUS server on Aruba Instant AP, plus flexible external AAA options.
- 100% investment protection to convert to controller-managed APs.
* Based on internal testing – IAP225 50 client downstream throughput testing.
The undisputable need for users to be productive on their mobile devices is driving organizations everywhere to look for ways to cost-effectively build and support Wi-Fi networks that deliver the best connectivity and user experience.
Controllerless Wi-Fi solutions are simple and affordable. They eliminate the need for additional controller hardware by distributing controller functionality such as authentication and configuration to the access points (AP).
However, not all controllerless solutions are equal. Some solutions may have some serious limitations if speed and reliability associated with business-grade networks are sacrificed in favor of simplicity. The result can be Wi-Fi disruptions, poor performance, and unhappy users.
Business-Grade Wi-Fi in an Instant
Aruba Instant is the only controllerless Wi-Fi solution that delivers superior Wi-Fi performance, business-grade security, resiliency and flexibility with the simplicity of zero-touch deployment. Aruba Instant is simple to setup and does not require network expertize to deploy and manage.
One dynamically-elected Instant AP automatically distributes the network configuration to other Instant APs in the network. Simply power-up one Instant AP, configure it over the air or in the cloud, and plug in the other APs – the entire process takes about five minutes.
The free local management interface, unique to Aruba Instant APs, eliminates dependency or required investment in external network management systems. Instant is a turnkey business-grade Wi-Fi solution that works right out of the box.
Even guest access to your network can be secure and uncomplicated for you and all yours visitors. Simply create a guest network (SSID) and determine who gets access, how and what they have access to.
Use the simple built-in captive portal or a customizable externally hosted portal for guests to easily login. And secure the network by authenticating users with built-in guest accounts or integrate with external authentication servers.
Enhance User Experience and Productivity
Aruba Instant's business-grade network performance delivers speeds up to 10-times faster than other solutions in environments with high densities of devices. The Aruba InstantOS comes with integrated Adaptive Radio Management (ARM) technology, which optimizes Wi-Fi behavior and automatically ensures that the Instant APs stay clear of RF interference, resulting in a more reliable, higherperforming wireless network.
It also integrates patented ClientMatch technology, which continuously gathers session performance metrics from mobile devices. These metrics are then used to intelligently steer individual clients to the best AP with the strongest Wi-Fi signal as users move.
The Aruba 802.11ac Wave 2 Instant APs deliver enhanced multi-user MIMO (MU-MIMO) enhanced ClientMatch. By grouping MU-MIMO capable devices on the same stream, the network can take advantage of the simultaneous transmissions to these devices, increasing its overall network capacity and efficiency. These Wave 2 Instant APs also have an integrated BLE Beacon to remotely manage battery-powered Aruba Beacons for advanced location and wayfinding applications.
Secure and Optimize your Network with Smart Application Handling
AppRF technology in Aruba Instant intelligently monitors application usage and web traffic to secure and optimize network performance.
Deep packet inspection (DPI) monitors mobile app usage and performance while optimizing bandwidth, priority and network paths in real time – even for apps that are encrypted or appear as web traffic. DPI is vital to understanding usage patterns that may require changes to network design and capacity.
AppRF provides insight into over 1,800 apps, including apps like GoToMeeting, Box, Skype for Business, SharePoint, and Salesforce.com. AppRF technology also provides web content filtering, enabling IT to control what users can browse on the Internet. AppRF redirects web URL requests to a cloud database that contains always-up-to-date content and reputation information about millions of web pages.
This information can be used to determine what types of web browsing and web apps are allowed on the network for different users or different times of day. You can even combine rules that allow Facebook traffic but block other social media or permit Netflix traffic only after business hours.
The AppRF cloud database is updated in real-time with new information about malicious web addresses. Aruba AppRF will catch new types of web attacks before they cause damage. Clients can be configured to use the AppRF web content filter even when they're not connected to an Aruba Instant network, which keeps clients safe no matter where they are.
Whether users are local or remote, AppRF web content filtering is instrumental in protecting the network against viruses and malware and gives IT precise control over which web sites users can access.
Avoid Business Disruptions due to Wi-Fi Failure
Aruba Instant is a resilient network with advanced businessgrade features that keep networks up and running, even if an Internet connection fails. Key capabilities include:
- Network survivability to the last AP. The controller function of an individual Instant network transitions seamlessly from one AP to the next to the last AP with no disruption or administrator intervention.
- Dual Ethernet uplinks leverage already-strong uplink resiliency options. Internet connections from two different ISPs can now plug into one Instant AP. This feature gives you the best-possible Internet availability.
- Supports a variety of 3G/4G USB modems that slot into Aruba APs. Now you have the fastest available cellular uplink, either as a primary connection in hard-to-wire areas or as a backup for mission-critical applications.
- Flexible image upgrade features let you download firmware now and reboot later during off hours. This lets you leave the office on time and upgrade when no one is using the network.
- Spectrum load-balancing evens out the client load across channels in a dense deployment. Everyone gets faster access through more efficient use of the available wireless spectrum.
Choose a Network Management Option Right for your Business
Manage your Instant network locally, in the cloud or on premises. Instant access points include a free management interface that provides visibility into the network. All capabilities required to manage a single Instant network are available on the local interface.
Additionally, organizations also have a choice of acquiring the Aruba Central services platform, for network management hosted in the cloud or Aruba AirWave for an on-premises management system.
Aruba Central simplifies network operations by providing zero-touch setup, centralized management of multiple Aruba Instant networks and Mobility Access Switches, historical data reporting, PCI compliance monitoring, and troubleshooting for networks located around town or around the world.
Aruba AirWave is a powerful network management system that not only manages Aruba APs and switches, but also wired and wireless infrastructures from a wide range of thirdparty manufacturers.
Make a Smart Investment in a Cost-Effective Solution
Aruba Instant is one of the most cost-effective business-grade Wi-Fi solutions available to day.
- Low capex
With Aruba Instant, you get enterprise-grade features and controller functions embedded in the AP. We eliminate the hardware and maintenance expense of a separate controller, but keep all the performance and reliability advantages.
- Low opex
Aruba Instant Wi-Fi integrates everything into the AP – controller functions, security, ARM RF management, ClientMatch performance optimization, and AppRF to improve the use of bandwidth, priority and network paths. It's so easy to setup and manage that you won't need a dedicated wireless expert.
- Investment protection
Only Aruba, a Hewlett Packard Enterprise company offers controllerless and controller-managed Wi-Fi with public cloud, private cloud and on-premises management. You can even mix and match between them. You're not locked into one architecture, so when your needs change, you keep 100% of your investment.
No hardware changes. All Aruba Instant APs can utilize VPNs to access centralized resources like guest access or authentication services from corporate headquarters.
At any time, Aruba Instant APs can easily convert to controllermanaged mode, enabling you to mix and match the right solution for the right location – headquarters, branch or home. No matter what you decide, your existing AP investments are fully protected.
The Aruba Instant product family consists of a wide range of APs with a variety of wireless, wired and WAN connectivity options.
|IAP-334 and IAP-335 Specifications|
AP-330 Series Specifications
Wireless Radio Specifications
Power Sources and Consumption
Regulatory Model Number
Minimum Software Versions
Wireless Radio Specifications:
|RF Performance Table|
|Maximum transmit power (dBm) per transmit chain||Receiver sensitivity (dBm) per receive chain|
|2.4 GHz - 802.11b|
|2.4 GHz - 802.11g|
|2.4 GHz - 802.11n HT20|
|2.4 GHz - 802.11n HT40|
|5 GHz - 802.11a|
|5 GHz - 802.11n HT20|
|5 GHz - 802.11n HT40|
|5 GHz - 802.11ac VHT20|
|5 GHz - 802.11ac VHT40|
|5 GHz - 802.11ac VHT80|
|5 GHz - 802.11ac VHT160|
Maximum capability of the hardware provided (excluding antenna gain). Maximum transmit power is limited by local regulatory settings.
Antenna Pattern Plots:
Horizontal planes (top view, AP facing forward)
Showing azimuth (0 degrees) and 30 degrees downtilt pattern
Elevation planes (side view, AP facing down)
Showing side view with AP rotated 0 and 90 degrees
