Aruba AP-334 Access Point
802.11ac Wave 2 that scales up to multi-gig Ethernet

Aruba AP-334 Access Point

Sorry, this unit has been discontinued and is no longer available for purchase, the recommended replacement product is - Aruba AP-534 (US) Unified AP #JZ332A.

End of Sale (EOS) : 31-Oct-2021 - EOS dates are dependent upon the continued availability of stock, we strongly encourage customers to transition new orders to the replacement product that is identified.

End of Support (EOST): 31-Oct-2026 - After this date, all support services for the product are unavailable, and the product reaches End of Life.

Please Contact Us for stock availability, placing orders and/or better pricing.

Click here to jump to more pricing!

Antenna Pattern Plots

Documentation

Overview:

The Aruba 330 Series access points provide the fastest gigabit data speeds and superb user experience for mobile devices and applications in a digital workplace. Designed with an integrated HPE Smart Rate port to scale up to 5Gbps Ethernet, the 330 Series allows enterprises to leverage their multi-gigabit Ethernet wired network infrastructures to eliminate bottlenecks.

Thanks to ClientMatch technology, ArubaOS enables the 330 series to automatically detect and classify 802.11ac Wave 2 capable mobile devices. This allows ClientMatch to automatically collect Wave 2 capable devices under a single Wave 2 radio so that performance benefits of multi-user MIMO can be realized — without the adverse effects of slower 802.11ac and traditional 802.11n capable mobile devices. This means increased network capacity and a boost in network efficiency.

With a maximum concurrent data rate of 1,733 Mbps in the 5 GHz band and 800 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 2.5Gbps), the 330 Series Access Points deliver a best-in-class, next-generation 802.11ac Wi-Fi infrastructure that is ideal for lecture halls, auditoriums, public venues, and high-density office environments.

The high performance and high density 802.11ac 330 Series Access Points support 160 MHz channel bandwidth (VHT160), 4-stream multi-user MIMO (MU-MIMO) and 4 spatial streams (4SS). They provide simultaneous data transmission to multiple devices, maximizing data throughput and improving network efficiency.

The 330 Series Access Points have an integrated Bluetooth Aruba Beacon that simplifies the remote management of a network of large-scale battery-powered Aruba beacons while also providing advanced location and indoor wayfinding, and proximity-based push notification capabilities. It enables businesses to leverage mobility context to develop applications that will deliver an enhanced user experience and increase the value of the wireless network for organizations.

Multi-gig Ethernet
Leverage wired multi-gig NBASE-T-compatible Ethernet infrastructure to eliminate bottlenecks in high-density environments.

ClientMatch unleashes MU-MIMO
Aruba ClientMatch software groups Wave 2 clients together, enabling 4x4:4SS MU-MIMO. That means a faster, more efficient network.

Integrated Bluetooth Beacon
330 series APs have an integrated BLE Beacon to simplify management of a large-scale network of battery-powered Aruba Beacons.

Choose your operating mode

The Aruba 330 Series Access Points offer a choice of operating modes to meet your unique management and deployment requirements.

Controller-managed mode – When managed by Aruba Mobility Controllers, Aruba 330 Series Access Points offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding.
Aruba Instant mode – In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up one Instant AP, configure it over the air, and plug in the other APs – the entire process takes about five minutes. If WLAN requirements change, a built-in migration path allows the 330 Series Instant APs to become part of a WLAN that is managed by a Mobility Controller.
Remote AP (RAP) for branch deployments
Air monitor (AM) for wireless IDS, rogue detection and containment
Spectrum analyzer, dedicated or hybrid, for identifying sources of RF interference
Secure enterprise mesh

For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, the Instant APs are factory-shipped to any site and configure themselves when powered up.

Benefits:

Dual Radio 802.11ac access point with Multi-User MIMO

Supports up to 1,733 Mbps in the 5 GHz band (with 4SS/VHT80 or 2SS/VHT160 clients) and up to 800 Mbps in the 2.4 GHz band (with 4SS/VHT40 clients)

Antenna polarization diversity for optimized RF performance

Each 5 GHz radio chain has a switch and two antennas
Software controlled; Horizontally and vertically polarized

HPE Smart Rate uplink port that scales up to 5Gbps

Supports up to 5Gbps with NBase-T Ethernet compatibility
Backwards compatible with 100/1000Base-T
Adds support for hitless PoE failover between the HPE Smart Rate port and the secondary 1000Base-T port when both ports are powered

Support for additional 5 GHz bands

Supports software upgrade to enable additional 5 GHz spectrum when governments expand available frequencies

Built-in Bluetooth Low-Energy (BLE) radio

Enables location based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time

Advanced Cellular Coexistence (ACC)

Minimizes interference from 3G/4G cellular networks, distributed antenna systems and commercial small cell/femtocell equipment

Quality of service for app visibility and control

Supports priority handling and policy enforcement for unified communication apps, including Skype for Business with encrypted videoconferencing, voice, chat and desktop sharing
Aruba AppRF technology leverages deep packet inspection to classify and block, prioritize or limit bandwidth for over 1,500 enterprise apps or groups of apps

RF Management

Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-performance WLANs
The Aruba 330 Series APs can be configured to provide part-time or dedicated air monitoring for spectrum analysis and wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available

Spectrum analysis

Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4 GHz and 5 GHz radio bands to identify sources of RF interference from HT20 through VHT160 operation

Security

Integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances
IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats
Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys
SecureJack-capable for secure tunneling of wiredEthernet traffic

Intelligent Power Monitoring (IPM)

Enables the AP to continuously monitor and report its actual power consumption and optionally make autonomous decisions to disable certain capabilities based on the amount of power available to the unit
Software configurable to disable capabilities in certain orders. For the 330 Series APs, by default, the USB interface will be the first feature to turn off if the AP power consumption exceeds the available power budget

Specifications:

AP-334 and AP-335 Specifications
AP-330 Series Specifications AP-334 (controller-managed) and IAP-334 (Instant): 802.11ac – 5 GHz 4x4 MIMO (1,733 Mbps max rate) and 2.4 GHz 4x4 MIMO (800 Mbps max rate) radios, with a total of four dual-band RP-SMA connectors for external antennas AP-335 (controller-managed) and IAP-335 (Instant): 802.11ac – 5 GHz 4x4 MIMO (1,733 Mbps max rate) and 2.4 GHz 2x2 MIMO (800 Mbps max rate) radios, with a total of twelve integrated omni-directional downtilt dual- band antennas Wireless Radio Specifications AP type: Indoor, dual radio, 5 GHz 802.11ac 4x4 MIMO and 2.4 GHz 802.11n 4x4 MIMO In addition to 802.11n, the 2.4 GHz radio supports all 802.11ac features as well (proprietary extension) Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1) 5 GHz: Four spatial stream Single User (SU) MIMO for up to 1,733 Mbps wireless data rate to individual 4x4 VHT80 or 2x2 VHT160 client devices Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously 2.4 GHz: Four spatial stream Single User (SU) MIMO for up to 800 Mbps wireless data rate to individual 4x4 VHT40 client devices (600 Mbps for HT40 802.11n client devices) Support for up to 255 associated client devices per radio, and up to 16 BSSIDs per radio Supported frequency bands (country-specific restrictions apply): 2.400 to 2.4835 GHz 5.150 to 5.250 GHz 5.250 to 5.350 GHz 5.470 to 5.725 GHz 5.725 to 5.850 GHz Available channels: Dependent on configured regulatory domain Dynamic frequency selection (DFS) optimizes the use of available RF spectrum Supported radio technologies: 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) Supported modulation types: 802.11b: BPSK, QPSK, CCK 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM Transmit power: Configurable in increments of 0.5 dBm Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements): 2.4 GHz band: +24 dBm (18 dBm per chain) 5 GHz band: +24 dBm (18 dBm per chain) Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain Maximum ratio combining (MRC) for improved receiver performance Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance Short guard interval for 20 MHz, 40 MHz, 80 MHz and 160 MHz channels Space-time block coding (STBC) for increased range and improved reception Low-density parity check (LDPC) for high-efficiency error correction and increased throughput Transmit beam-forming (TxBF) for increased signal reliability and range Supported data rates (Mbps): 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 600 (MCS0 to MCS31) 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160) 802.11n high-throughput (HT) support: HT 20/40 802.11ac very high throughput (VHT) support: VHT 20/40/80/160 802.11n/ac packet aggregation: A-MPDU, A-MSDU WiFi Antennas AP-334/IAP-334: Four RP-SMA connectors for external dual band antennas. Internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 2.3 dB in 2.4 GHz and 1.2 dB in 5 GHz. AP-335/IAP-335 Four integrated 2.4 GHz downtilt omni-directional antennas for 4x4 MIMO with maximum antenna gain of 4.3 dBi per antenna. Each 5 GHz radio chain has both a vertically and a horizontally polarized antenna element; AP software automatically and dynamically selects the best set of elements for each data packet transmitted or received. Eight integrated 5 GHz downtilt omni-directional antennas for 4x4 MIMO with maximum antenna gain of 5.4 dBi (vertical)/4.2 dBi (horizontal) per antenna. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees. The maximum gain of the combined (summed) antenna patterns for all elements operating in the same band is 8.6 dBi in 2.4 GHz and 8.5 dBi (vertical)/8.1 dBi (horizontal) in 5 GHz. Other Interfaces One HPE Smart Rate port (RJ-45, maximum negotiated speed 5 Gbps) Auto-sensing link speed (100/1000/2500/5000BASE-T) and MDI/MDX 802.3az Energy Efficient Ethernet (EEE) - PoE-PD: 48 Vdc (nominal) 802.3at PoE One 10/100/1000BASE-T Ethernet network interface (RJ-45) Auto-sensing link speed and MDI/MDX 802.3az Energy Efficient Ethernet (EEE) PoE-PD: 48 Vdc (nominal) 802.3at PoE DC power interface, accepts 1.35/3.5-mm center-positive circular plug with 9.5-mm length USB 2.0 host interface (Type A connector) Bluetooth Low Energy (BLE) radio Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity Integrated antenna with roughly 30 degrees downtilt and peak gain of 5.1 dBi (AP-334/IAP-334) or 2.2 dBi (AP-335/IAP-335) Visual indicators (tri-color LEDs): For system and radio status Reset button: Factory reset (during device power up) Serial console interface (RJ-45, RS232) Kensington security slot	Power Sources and Consumption The AP supports direct DC power and Power over Ethernet (PoE) When both power sources are available, DC power takes priority over PoE Power sources are sold separately Direct DC source: 48Vdc nominal, +/- 5% Interface accepts 1.35/3.5-mm center-positive circular plug with 9.5-mm length Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af/802.3at compliant source When using IPM, the AP may enter power-save mode with reduced functionality when powered by a PoE source (see details on Intelligent Power Monitoring in this datasheet) Without IPM the AP will apply some fixed restrictions when using PoE: The USB interface is disabled when using an 802.3at PoE power source The USB interface and second Ethernet port are disabled, and both radios operate in 1x1 mode when using an 802.3af POE power source Maximum (worst-case) power consumption: 25.3W (802.3at PoE), 13.2W (802.3af PoE) or 25W (DC) Excludes power consumed by external USB device (and internal overhead); this could add up to 5.9W (PoE or DC) for a 5W/1A USB device Maximum (worst-case) power consumption in idle mode: 10.9W (PoE or DC) Mounting The AP ships with two (white) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling. Several optional mount kits are available to attach the AP to a variety of surfaces; see the Ordering Information section below for details Mechanical Dimensions/weight (unit, excluding mount accessories): 225 mm (W) x 224 mm (D) x 52 mm (H), 8.9” (W) x 8.9” (D) x 2.0” (H) 1150g/41oz Dimensions/weight (shipping): 335 mm (W) x 290 mm (D) x 76 mm (H), 13.2” (W) x 11.4” (D) x 3.0” (H) 1550g/55oz Environmental Operating: Temperature: 0° C to +50° C (+32° F to +122° F) Humidity: 5% to 95% non-condensing Storage and transportation: Temperature: -40° C to +70° C (-40° F to +158° F) Regulatory FCC/Industry of Canada CE Marked R&TTE Directive 1995/5/EC Low Voltage Directive 72/23/EEC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN 60601-1-1 and EN 60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative. Reliability MTBF: 531,662hrs (61yrs) at +25C operating temperature Regulatory Model Number AP-334 and IAP-334: APIN0334 AP-335 and IAP-335: APIN0335 Certifications CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac Warranty Aruba limited lifetime warranty Minimum Software Versions ArubaOS 6.5.0.0 Aruba InstantOS 4.3.0.0

AP-334 and AP-335 Specifications

AP-330 Series Specifications

AP-334 (controller-managed) and IAP-334 (Instant):
- 802.11ac – 5 GHz 4x4 MIMO (1,733 Mbps max rate) and 2.4 GHz 4x4 MIMO (800 Mbps max rate) radios, with a total of four dual-band RP-SMA connectors for external antennas
AP-335 (controller-managed) and IAP-335 (Instant):
- 802.11ac – 5 GHz 4x4 MIMO (1,733 Mbps max rate) and 2.4 GHz 2x2 MIMO (800 Mbps max rate) radios, with a total of twelve integrated omni-directional downtilt dual- band antennas

Wireless Radio Specifications

AP type: Indoor, dual radio, 5 GHz 802.11ac 4x4 MIMO and 2.4 GHz 802.11n 4x4 MIMO
- In addition to 802.11n, the 2.4 GHz radio supports all 802.11ac features as well (proprietary extension)
Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
5 GHz:
- Four spatial stream Single User (SU) MIMO for up to 1,733 Mbps wireless data rate to individual 4x4 VHT80 or 2x2 VHT160 client devices
- Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously
2.4 GHz: Four spatial stream Single User (SU) MIMO for up to 800 Mbps wireless data rate to individual 4x4 VHT40 client devices (600 Mbps for HT40 802.11n client devices)
Support for up to 255 associated client devices per radio, and up to 16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply):
- 2.400 to 2.4835 GHz
- 5.150 to 5.250 GHz
- 5.250 to 5.350 GHz
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
Available channels: Dependent on configured regulatory domain
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Transmit power: Configurable in increments of 0.5 dBm
Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
- 2.4 GHz band: +24 dBm (18 dBm per chain)
- 5 GHz band: +24 dBm (18 dBm per chain)
- Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Short guard interval for 20 MHz, 40 MHz, 80 MHz and 160 MHz channels
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range
Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: 6.5 to 600 (MCS0 to MCS31)
- 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160)
802.11n high-throughput (HT) support: HT 20/40
802.11ac very high throughput (VHT) support: VHT 20/40/80/160
802.11n/ac packet aggregation: A-MPDU, A-MSDU

WiFi Antennas

AP-334/IAP-334: Four RP-SMA connectors for external dual band antennas. Internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 2.3 dB in 2.4 GHz and 1.2 dB in 5 GHz.
AP-335/IAP-335
- Four integrated 2.4 GHz downtilt omni-directional antennas for 4x4 MIMO with maximum antenna gain of 4.3 dBi per antenna.
- Each 5 GHz radio chain has both a vertically and a horizontally polarized antenna element; AP software automatically and dynamically selects the best set of elements for each data packet transmitted or received.
- Eight integrated 5 GHz downtilt omni-directional antennas for 4x4 MIMO with maximum antenna gain of 5.4 dBi (vertical)/4.2 dBi (horizontal) per antenna.
- Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.
- The maximum gain of the combined (summed) antenna patterns for all elements operating in the same band is 8.6 dBi in 2.4 GHz and 8.5 dBi (vertical)/8.1 dBi (horizontal) in 5 GHz.

Other Interfaces

One HPE Smart Rate port (RJ-45, maximum negotiated speed 5 Gbps)
- Auto-sensing link speed (100/1000/2500/5000BASE-T) and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE) - PoE-PD: 48 Vdc (nominal) 802.3at PoE
One 10/100/1000BASE-T Ethernet network interface (RJ-45)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
- PoE-PD: 48 Vdc (nominal) 802.3at PoE
DC power interface, accepts 1.35/3.5-mm center-positive circular plug with 9.5-mm length
USB 2.0 host interface (Type A connector)
Bluetooth Low Energy (BLE) radio
- Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity
- Integrated antenna with roughly 30 degrees downtilt and peak gain of 5.1 dBi (AP-334/IAP-334) or 2.2 dBi (AP-335/IAP-335)
Visual indicators (tri-color LEDs): For system and radio status
Reset button: Factory reset (during device power up)
Serial console interface (RJ-45, RS232)
Kensington security slot

Power Sources and Consumption

The AP supports direct DC power and Power over Ethernet (PoE)
When both power sources are available, DC power takes priority over PoE
Power sources are sold separately
Direct DC source: 48Vdc nominal, +/- 5%
- Interface accepts 1.35/3.5-mm center-positive circular plug with 9.5-mm length
Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af/802.3at compliant source
- When using IPM, the AP may enter power-save mode with reduced functionality when powered by a PoE source (see details on Intelligent Power Monitoring in this datasheet)
- Without IPM the AP will apply some fixed restrictions when using PoE:
- The USB interface is disabled when using an 802.3at PoE power source
- The USB interface and second Ethernet port are disabled, and both radios operate in 1x1 mode when using an 802.3af POE power source
Maximum (worst-case) power consumption: 25.3W (802.3at PoE), 13.2W (802.3af PoE) or 25W (DC)
- Excludes power consumed by external USB device (and internal overhead); this could add up to 5.9W (PoE or DC) for a 5W/1A USB device
Maximum (worst-case) power consumption in idle mode: 10.9W (PoE or DC)

Mounting

The AP ships with two (white) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling.
Several optional mount kits are available to attach the AP to a variety of surfaces; see the Ordering Information section below for details

Mechanical

Dimensions/weight (unit, excluding mount accessories):
- 225 mm (W) x 224 mm (D) x 52 mm (H), 8.9” (W) x 8.9” (D) x 2.0” (H)
- 1150g/41oz
Dimensions/weight (shipping):
- 335 mm (W) x 290 mm (D) x 76 mm (H), 13.2” (W) x 11.4” (D) x 3.0” (H)
- 1550g/55oz

Environmental

Operating:
- Temperature: 0° C to +50° C (+32° F to +122° F)
- Humidity: 5% to 95% non-condensing
Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158° F)

Regulatory

FCC/Industry of Canada
CE Marked
R&TTE Directive 1995/5/EC
Low Voltage Directive 72/23/EEC
EN 300 328
EN 301 489
EN 301 893
UL/IEC/EN 60950
EN 60601-1-1 and EN 60601-1-2

For more country-specific regulatory information and approvals, please see your Aruba representative.

Reliability

MTBF: 531,662hrs (61yrs) at +25C operating temperature

Regulatory Model Number

AP-334 and IAP-334: APIN0334
AP-335 and IAP-335: APIN0335

Certifications

CB Scheme Safety, cTUVus
UL2043 plenum rating
Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac

Warranty

Aruba limited lifetime warranty

Minimum Software Versions

ArubaOS 6.5.0.0
Aruba InstantOS 4.3.0.0

Wireless Radio Specifications:

RF Performance Table
	Maximum transmit power (dBm) per transmit chain	Receiver sensitivity (dBm) per receive chain
2.4 GHz - 802.11b
1 Mbps	18.0	-96.0
11 Mbps	18.0	-89.0
2.4 GHz - 802.11g
6 Mbps	18.0	-91.0
54 Mbps	18.0	-75.0
2.4 GHz - 802.11n HT20
MCS0/8	18.0	-90.0
MCS7/15	17.0	-71.0
2.4 GHz - 802.11n HT40
MCS0/8	18.0	-88.0
MCS7/15	16.0	-68.0
5 GHz - 802.11a
6 Mbps	18.0	-88.0
54 Mbps	16.0	-73.0
5 GHz - 802.11n HT20
MCS0/8	18.0	-88.0
MCS7/15	16.0	-70.0
5 GHz - 802.11n HT40
MCS0/8	18.0	-86.0
MCS7/15	16.0	-67.0
5 GHz - 802.11ac VHT20
MCS0	18.0	-88.0
MCS9	13.0	-63.0
5 GHz - 802.11ac VHT40
MCS0	18.0	-86.0
MCS9	13.0	-61.0
5 GHz - 802.11ac VHT80
MCS0	18.0	-83.0
MCS9	15.0	-58.0
5 GHz - 802.11ac VHT160
MCS0	18.0	-80.0
MCS9	14.0	-55.0

Maximum capability of the hardware provided (excluding antenna gain). Maximum transmit power is limited by local regulatory settings.

Antenna Pattern Plots:

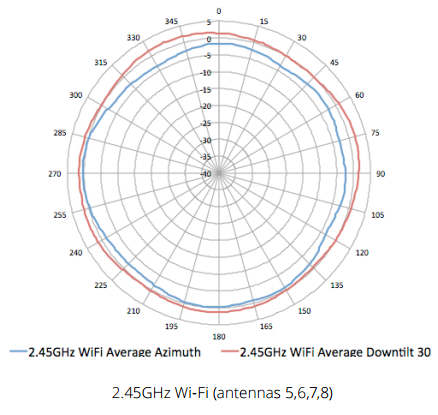

Horizontal planes (top view, AP facing forward)

Showing azimuth (0 degrees) and 30 degrees downtilt pattern

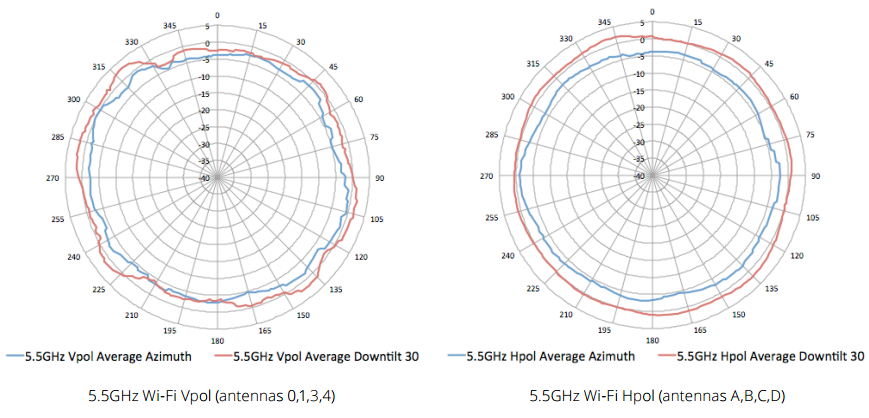

Horizontal planes (top view, AP facing forward)

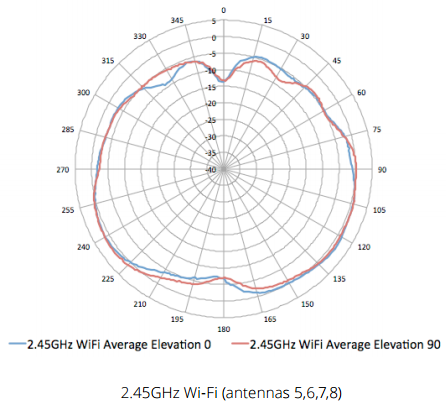

Elevation planes (side view, AP facing down)

Showing side view with AP rotated 0 and 90 degrees

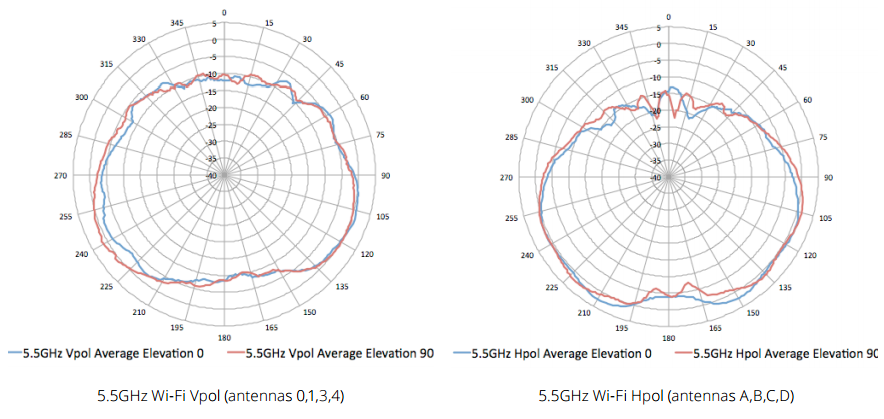

Elevation planes (side view, AP facing down)

Documentation:

Aruba AP-330 Series Access Points Datasheet (.PDF)

Pricing Notes:

Pricing and product availability subject to change without notice.

Aruba Networks Products

3. ADD MOUNT ACCESSORIES (OPTIONAL)

Instant On AP Flat Surface Wall/Ceiling Basic Mount (White)

#JW047A
List Price: ~~$28.00~~
Our Price: $20.34

AP-220-MNT-W3 White Low Profile Box Style Secure Large AP Flat Surface Mount Kit

#JY706A
List Price: ~~$84.00~~
Our Price: $60.71

4. ADD SPARE PARTS (OPTIONAL)

Instant On AP Ceiling Rail Mount Kit

#JW044A
List Price: ~~$28.00~~
Our Price: $20.34

5. ADD COSMETIC SNAP-ON COVER (OPTIONAL)

Aruba AP-335-CVR-20 20pk Snap-on Cover

#JW828A
List Price: ~~$205.00~~
Our Price: $163.75

HPE Aruba Foundation Care Next business day Exchange

Aruba 1 Year Foundation Care Next business day Exchange AP 334
*Backorder

#H4SB3E
Get a Quote!

Aruba 3 Year Foundation Care Next business day Exchange AP 334
*Backorder

#H4SC1E
Get a Quote!

Aruba 4 Year Foundation Care Next business day Exchange AP 334

#H4SE4E
Our Price: $263.00

Aruba 5 Year Foundation Care Next business day Exchange AP 334
*Backorder

#H4SG7E
Get a Quote!

HPE Aruba Foundation Care 4-Hour Exchange

Aruba 1 Year Foundation Care 4-Hour Exchange AP 334
*Backorder

#H4SB4E
Get a Quote!

Aruba 3 Year Foundation Care 4-Hour Exchange AP 334
*Backorder

#H4SC2E
Get a Quote!

Aruba 4 Year Foundation Care 4-Hour Exchange AP 334

#H4SE5E
Our Price: $427.00

Aruba 5 Year Foundation Care 4-Hour Exchange AP 334

#H4SG8E
Our Price: $519.00

HPE Aruba Services Renewal

Aruba 1 Year Renewal Foundation Care Next business day Exchange AP 334
*Backorder

#H4SK0PE
Get a Quote!

Aruba 1 Year Renewal Foundation Care 4-Hour Exchange AP 334
*Backorder

#H4SK3PE
Get a Quote!

Aruba AP-334 Access Point 802.11ac Wave 2 that scales up to multi-gig Ethernet

Sorry, this unit has been discontinued and is no longer available for purchase, the recommended replacement product is - Aruba AP-534 (US) Unified AP #JZ332A.

Overview:

Choose your operating mode

Benefits:

Dual Radio 802.11ac access point with Multi-User MIMO

Antenna polarization diversity for optimized RF performance

HPE Smart Rate uplink port that scales up to 5Gbps

Support for additional 5 GHz bands

Built-in Bluetooth Low-Energy (BLE) radio

Advanced Cellular Coexistence (ACC)

Quality of service for app visibility and control

RF Management

Spectrum analysis

Security

Intelligent Power Monitoring (IPM)

Specifications:

Wireless Radio Specifications:

Antenna Pattern Plots:

Horizontal planes (top view, AP facing forward)

Elevation planes (side view, AP facing down)

Documentation:

Aruba AP-334 Access Point
802.11ac Wave 2 that scales up to multi-gig Ethernet
