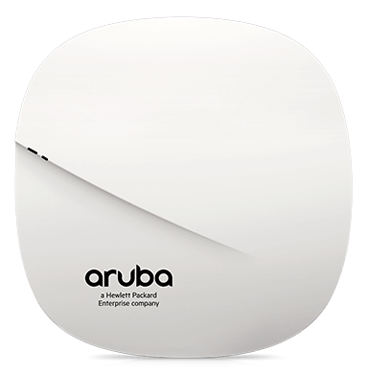

Aruba AP-305 Access Point
Entry-level 802.11ac Wave 2 access points

Aruba AP-305 Access Point

Sorry, this unit has been discontinued and is no longer available for purchase, the recommended replacement product is - Aruba AP-505 (US) Unified AP #R2H29A.

End of Sale (EOS) : 31-Dec-2021 - EOS dates are dependent upon the continued availability of stock, we strongly encourage customers to transition new orders to the replacement product that is identified.

End of Support (EOST): 31-Dec-2026 - After this date, all support services for the product are unavailable, and the product reaches End of Life.

Please Contact Us for stock availability, placing orders and/or better pricing.

Click here to jump to more pricing!

Overview:

The entry-level Aruba 300 Series Wave 2 access points deliver high performance and superb user experience for medium density environments. Featuring 3x3:3SS MU-MIMO capability, Aruba advanced ClientMatch radio management, and integrated Aruba Beacons, the 300 Series enables an all wireless digital work environment in a costeffective manner.

With a maximum concurrent data rate of 1,300 Mbps in the 5GHz band and 400 Mbps in the 2.4GHz band (for an aggregate peak data rate of 1.7Gbps), the entry-level 300 Series brings an always-on wireless network experience with the performance required for enterprises. It is ideal for costsensitive medium density environments across verticals.

The high performance 802.11ac 300 Series supports multiuser MIMO (MU-MIMO) and 3 spatial streams (3SS). It provides simultaneous data transmission to multiple devices (up to two), maximizing data throughput and improving network efficiency.

The 300 Series includes the enhanced ClientMatch technology that extends the client steering technology with MU-MIMO client awareness. It automatically identifies MU-MIMO capable mobile devices and steers those devices to the closest MU-MIMO capable Aruba access point. By grouping MU-MIMO capable mobile devices together, the network starts taking advantage of the simultaneous transmission to these devices, increasing its overall capacity. These dynamic roaming policies that are based on device types, help customers achieve the best WLAN performance in a mixed device environment during the technology transition period.

The 300 Series also has an integrated Bluetooth Aruba Beacon that simplifies the remote management of a network of largescale battery-powered Aruba Beacons while also providing advanced location and indoor wayfinding, and proximity-based push notification capabilities. It enables businesses to leverage ARUBA 300 SERIES ACCESS POINTS Entry-level 802.11ac Wave 2 Access Points mobility context to develop applications that will deliver an enhanced user experience and increase the value of the wireless network for organizations.

Choose your operating mode

The Aruba 300 Series APs offer a choice of operating modes to meet your unique management and deployment requirements.

Controller-managed mode – When managed by Aruba Mobility Controllers, Aruba 300 Series APs offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding
Aruba Instant mode – In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up one Instant AP, configure it over the air, and plug in the other APs – the entire process takes about five minutes. If WLAN requirements change, a built-in migration path allows 300 Series Instant APs to become part of a WLAN that is managed by a Mobility Controller
Remote AP (RAP) for branch deployments
Air monitor (AM) for wireless IDS, rogue detection and containment
Spectrum analyzer, dedicated or hybrid, for identifying sources of RF interference
Secure enterprise mesh

For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, the Instant APs are factory-shipped to any site and configure themselves when powered up.

Benefits:

Dual Radio 802.11ac access point with Multi-User MIMO

Supports up to 1,300 Mbps in the 5 GHz band (with 3SS/VHT80 clients) and up to 400 Mbps in the 2.4 GHz band (with 2SS/VHT40 clients)

Built-in Bluetooth Low-Energy (BLE) radio

Enables location-based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time
Enables management of your deployment of battery-powered Aruba Beacons

Advanced Cellular Coexistence (ACC)

Minimizes interference from 3G/4G cellular networks, distributed antenna systems and commercial small cell/femtocell equipment. Quality of service for unified communication apps

Quality of service for app visibility and control

Supports priority handling and policy enforcement for unified communication apps, including Microsoft Skype for Business with encrypted videoconferencing, voice, chat and desktop sharing

RF Management

Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness, and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-performance WLANs
The Aruba 300 Series APs can be configured to provide part-time or dedicated air monitoring for spectrum analysis and wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available

Intelligent app visibility and control

AppRF technology leverages deep packet inspection to classify and block, prioritize or limit bandwidth for over 2,500 enterprise apps or groups of apps

Security

Integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances
IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats
Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys

Intelligent Power Monitoring (IPM)

Enables the AP to continuously monitor and report its actual power consumption and optionally make autonomous decisions to disable certain capabilities
For the 300 Series APs, the IPM power-save feature applies when the unit is powered by an 802.3af PoE source. By default, the USB interface will be the first feature to turn off if AP power consumption exceeds the available power budget. In rare cases it may be necessary to take additional power saving measures, but in most cases, the 300 Series APs will operate in unrestricted mode

Specifications:

AP-304 and AP-305 Specifications
AP-300 Series Specifications AP-304 (controller-managed) and IAP-304 (Instant): 802.11ac – 5GHz 3x3 MIMO (1,300 Mbps max rate) and 2.4GHz 2x2 MIMO (400 Mbps max rate) radios, with a total of three dual-band RP-SMA connectors for external antennas AP-305 (controller-managed) and IAP-305 (Instant): 802.11ac – 5GHz 3x3 MIMO (1,300 Mbps max rate) and 2.4GHz 2x2 MIMO (400 Mbps max rate) radios, with a total of three integrated omni-directional downtilt dualband antennas Wireless Radio Specifications AP type: Indoor, dual radio, 5GHz 802.11ac 3x3 MIMO and 2.4GHz 802.11n 2x2 MIMO Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1) 5GHz: Three spatial stream Single User (SU) MIMO for up to 1,300 Mbps wireless data rate to individual 3x3 VHT80 client devices 5GHz: Two spatial stream Multi User (MU) MIMO for up to 867 Mbps wireless data rate to up to two (1x1 VHT80) MU-MIMO capable client devices simultaneously 2.4GHz: Two spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate to individual 2x2 VHT40 client devices (300 Mbps for HT40 802.11n client devices) Support for up to 255 associated client devices per radio, and up to 16 BSSIDs per radio Supported frequency bands (country-specific restrictions apply): 2.400 to 2.4835 GHz 5.150 to 5.250 GHz 5.250 to 5.350 GHz 5.470 to 5.725 GHz 5.725 to 5.850 GHz Available channels: Dependent on configured regulatory domain Dynamic frequency selection (DFS) optimizes the use of available RF spectrum Supported radio technologies: 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) Supported modulation types: 802.11b: BPSK, QPSK, CCK 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM Transmit power: Configurable in increments of 0.5 dBm Maximum (conducted) transmit power (limited by local regulatory requirements): 2.4GHz band: +18 dBm per chain, +21 dBm aggregate (2x2) 5GHz band: +18 dBm per chain, +23 dBm aggregate (3x3) Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks Maximum ratio combining (MRC) for improved receiver performance Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance Short guard interval for 20 MHz, 40 MHz and 80 MHz channels Space-time block coding (STBC) for increased range and improved reception Low-density parity check (LDPC) for high-efficiency error correction and increased throughput Transmit beam-forming (TxBF) for increased signal reliability and range Supported data rates (Mbps): 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15) 802.11n (5GHz): 6.5 to 450 (MCS0 to MCS23) 802.11ac: 6.5 to 1,300 (MCS0 to MCS9, NSS = 1 to 3 for VHT20/40/80 802.11n high-throughput (HT) support: HT 20/40 802.11ac very high throughput (VHT) support: VHT 20/40/80 802.11n/ac packet aggregation: A-MPDU, A-MSDU WiFi Antennas AP-304/IAP-304: Three RP-SMA connectors for external dual band antennas. Worst-case internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 0.8dB in 2.4GHz and 1.6dB in 5GHz. AP-305/IAP-305: Three integrated dual-band downtilt omni-directional antennas for 3x3 MIMO with maximum antenna gain of 3.9dBi in 2.4GHz and 5.4dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees. The maximum gain of the combined (summed) antenna patterns for all elements operating in the same band is 5.4dBi in 2.4GHz and 7.6dBi in 5GHz Other Interfaces One 10/100/1000BASE-T Ethernet network interface (RJ-45) Auto-sensing link speed and MDI/MDX 802.3az Energy Efficient Ethernet (EEE) USB 2.0 host interface (Type A connector) Bluetooth Low Energy (BLE) radio Up to 3dBm transmit power (class 2) and -92dBm receive sensitivity Integrated antenna with roughly 30 degrees downtilt and peak gain of 2.3dBi (AP-304/IAP-304) or 3.4dBi (AP-305/IAP-305) Visual indicators (multi-color LEDs): for System and Radio status Reset button: factory reset (during device power up) Serial console interface (proprietary; optional adapter cable available) Kensington security slot	Power Sources and Consumption The AP supports direct DC power and Power over Ethernet (PoE) When both power sources are available, DC power takes priority over PoE Power sources are sold separately Direct DC source: 412Vdc nominal, +/- 5% Interface accepts 2.1/5.5-mm center-positive circular plug with 9.5-mm length Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af/802.3at compliant source Unrestricted functionality with 802.3at PoE When using IPM, the AP may enter power-save mode with reduced functionality when powered by an 802.3af PoE source (see details on Intelligent Power Monitoring) Without IPM, the USB port is disabled when the AP is powered by and 802.3af PoE source Maximum (worst-case) power consumption: 13W (PoE) or 11W (DC) Excludes power consumed by external USB device (and internal overhead); this could add up to 6.5W (PoE) or 5.5W (DC) for a 5W/1A USB device Maximum (worst-case) power consumption in idle mode: 3.7W (PoE) or 2.6W (DC) Mounting The AP ships with two (white) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling Several optional mount kits are available to attach the AP to a variety of surfaces; see the Ordering Information section for details Mechanical Dimensions/weight (unit, excluding mount accessories): 165mm x 165mm x 38mm 460g Dimensions/weight (shipping): 205mm x 205mm x 52mm 620g Environmental Operating: Temperature: 0° C to +50° C (+32° F to +122° F) Humidity: 5% to 95% non-condensing Storage and transportation: Temperature: -40° C to +70° C (-40° F to +158° F) Regulatory FCC/Industry of Canada CE Marked R&TTE Directive 1995/5/EC Low Voltage Directive 72/23/EEC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN 60601-1-1 and EN 60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative. Reliability MTBF: 1,116,000hrs (127yrs) at +25C operating temperature Regulatory Model Number AP-304 and IAP-304: APIN0304 AP-305 and IAP-305: APIN0305 Certifications CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac Warranty Aruba limited lifetime warranty Minimum Software Versions ArubaOS 6.5.1.0 Aruba InstantOS 4.3.1.0

AP-304 and AP-305 Specifications

AP-300 Series Specifications

AP-304 (controller-managed) and IAP-304 (Instant):
- 802.11ac – 5GHz 3x3 MIMO (1,300 Mbps max rate) and 2.4GHz 2x2 MIMO (400 Mbps max rate) radios, with a total of three dual-band RP-SMA connectors for external antennas
AP-305 (controller-managed) and IAP-305 (Instant):
- 802.11ac – 5GHz 3x3 MIMO (1,300 Mbps max rate) and 2.4GHz 2x2 MIMO (400 Mbps max rate) radios, with a total of three integrated omni-directional downtilt dualband antennas

Wireless Radio Specifications

AP type: Indoor, dual radio, 5GHz 802.11ac 3x3 MIMO and 2.4GHz 802.11n 2x2 MIMO
Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
5GHz: Three spatial stream Single User (SU) MIMO for up to 1,300 Mbps wireless data rate to individual 3x3 VHT80 client devices
5GHz: Two spatial stream Multi User (MU) MIMO for up to 867 Mbps wireless data rate to up to two (1x1 VHT80) MU-MIMO capable client devices simultaneously
2.4GHz: Two spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate to individual 2x2 VHT40 client devices (300 Mbps for HT40 802.11n client devices)
Support for up to 255 associated client devices per radio, and up to 16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply):
- 2.400 to 2.4835 GHz
- 5.150 to 5.250 GHz
- 5.250 to 5.350 GHz
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
Available channels: Dependent on configured regulatory domain
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Transmit power: Configurable in increments of 0.5 dBm
Maximum (conducted) transmit power (limited by local regulatory requirements):
- 2.4GHz band: +18 dBm per chain, +21 dBm aggregate (2x2)
- 5GHz band: +18 dBm per chain, +23 dBm aggregate (3x3)
- Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain
Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Short guard interval for 20 MHz, 40 MHz and 80 MHz channels
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range
Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)
- 802.11n (5GHz): 6.5 to 450 (MCS0 to MCS23)
- 802.11ac: 6.5 to 1,300 (MCS0 to MCS9, NSS = 1 to 3 for VHT20/40/80
802.11n high-throughput (HT) support: HT 20/40
802.11ac very high throughput (VHT) support: VHT 20/40/80
802.11n/ac packet aggregation: A-MPDU, A-MSDU

WiFi Antennas

AP-304/IAP-304: Three RP-SMA connectors for external dual band antennas. Worst-case internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 0.8dB in 2.4GHz and 1.6dB in 5GHz.
AP-305/IAP-305: Three integrated dual-band downtilt omni-directional antennas for 3x3 MIMO with maximum antenna gain of 3.9dBi in 2.4GHz and 5.4dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.
- The maximum gain of the combined (summed) antenna patterns for all elements operating in the same band is 5.4dBi in 2.4GHz and 7.6dBi in 5GHz

Other Interfaces

One 10/100/1000BASE-T Ethernet network interface (RJ-45)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
USB 2.0 host interface (Type A connector)
Bluetooth Low Energy (BLE) radio
- Up to 3dBm transmit power (class 2) and -92dBm receive sensitivity
- Integrated antenna with roughly 30 degrees downtilt and peak gain of 2.3dBi (AP-304/IAP-304) or 3.4dBi (AP-305/IAP-305)
Visual indicators (multi-color LEDs): for System and Radio status
Reset button: factory reset (during device power up)
Serial console interface (proprietary; optional adapter cable available)
Kensington security slot

Power Sources and Consumption

The AP supports direct DC power and Power over Ethernet (PoE)
When both power sources are available, DC power takes priority over PoE
Power sources are sold separately
Direct DC source: 412Vdc nominal, +/- 5%
- Interface accepts 2.1/5.5-mm center-positive circular plug with 9.5-mm length
Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af/802.3at compliant source
- Unrestricted functionality with 802.3at PoE
- When using IPM, the AP may enter power-save mode with reduced functionality when powered by an 802.3af PoE source (see details on Intelligent Power Monitoring)
- Without IPM, the USB port is disabled when the AP is powered by and 802.3af PoE source
Maximum (worst-case) power consumption: 13W (PoE) or 11W (DC)
- Excludes power consumed by external USB device (and internal overhead); this could add up to 6.5W (PoE) or 5.5W (DC) for a 5W/1A USB device
Maximum (worst-case) power consumption in idle mode: 3.7W (PoE) or 2.6W (DC)

Mounting

The AP ships with two (white) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling
Several optional mount kits are available to attach the AP to a variety of surfaces; see the Ordering Information section for details

Mechanical

Dimensions/weight (unit, excluding mount accessories):
- 165mm x 165mm x 38mm
- 460g
Dimensions/weight (shipping):
- 205mm x 205mm x 52mm
- 620g

Environmental

Operating:
- Temperature: 0° C to +50° C (+32° F to +122° F)
- Humidity: 5% to 95% non-condensing
Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158° F)

Regulatory

FCC/Industry of Canada
CE Marked
R&TTE Directive 1995/5/EC
Low Voltage Directive 72/23/EEC
EN 300 328
EN 301 489
EN 301 893
UL/IEC/EN 60950
EN 60601-1-1 and EN 60601-1-2

For more country-specific regulatory information and approvals, please see your Aruba representative.

Reliability

MTBF: 1,116,000hrs (127yrs) at +25C operating temperature

Regulatory Model Number

AP-304 and IAP-304: APIN0304
AP-305 and IAP-305: APIN0305

Certifications

CB Scheme Safety, cTUVus
UL2043 plenum rating
Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac

Warranty

Aruba limited lifetime warranty

Minimum Software Versions

ArubaOS 6.5.1.0
Aruba InstantOS 4.3.1.0

Wireless Radio Specifications:

RF Performance Table
	Maximum transmit power (dBm) per transmit chain	Receiver sensitivity (dBm) per receive chain
2.4 GHz - 802.11b
1 Mbps	18.0	-95.0
11 Mbps	18.0	-88.0
2.4 GHz - 802.11g
6 Mbps	18.0	-92.0
54 Mbps	18.0	-74.0
2.4 GHz - 802.11n HT20
MCS0/8	18.0	-91.0
MCS7/15	18.0	-71.0
2.4 GHz - 802.11n HT40
MCS0/8	18.0	-88.0
MCS7/15	18.0	-68.0
5 GHz - 802.11a
6 Mbps	18.0	-92.0
54 Mbps	18.0	-74.0
5 GHz - 802.11n HT20
MCS0/8	18.0	-91.0
MCS7/15	18.0	-71.0
5 GHz - 802.11n HT40
MCS0/8	18.0	-88.0
MCS7/15	17.0	-68.0
5 GHz (SU-MIMO) - 802.11ac VHT20
MCS0	18.0	-91.0
MCS9	18.0	-67.0
5 GHz (SU-MIMO) - 802.11ac VHT40
MCS0	18.0	-88.0
MCS9	17.0	-63.0
5 GHz (SU-MIMO) - 802.11ac VHT80
MCS0	18.0	-85.0
MCS9	17.0	-58.0

Maximum capability of the hardware provided (excluding antenna gain). Maximum transmit power is limited by local regulatory settings.

Documentation:

Aruba AP-300 Series Access Points Datasheet (.PDF)
