Aruba AP-203H Access Point

Sorry, this unit has been discontinued and is no longer available for purchase, the recommended replacement product is - Aruba AP-303H (US) Unified AP #JY680A.

End of Sale (EOS) : 31-Mar-2022 - EOS dates are dependent upon the continued availability of stock, we strongly encourage customers to transition new orders to the replacement product that is identified.

End of Support (EOST): 31-Mar-2027 - After this date, all support services for the product are unavailable, and the product reaches End of Life.

Please Contact Us for stock availability, placing orders and/or better pricing.

Supports and Renewals are still available below

Antenna Pattern Plots

Documentation

Overview:

This cost-effective 802.11ac access point with single or dual radio mode delivers high performance Wi-Fi networks for hospitality and branch offices, while minimizing costs for low to moderate density areas.

The compact Aruba 203H AP is software configurable to operate in either 1x1 dual radio mode, or 2x2 single radio mode. It supports up to 867Mbps in the 5GHz band or up to 400Mbps in the 2.4 GHz band in single radio 2x2 mode. In dual radio 1x1 mode, the maximum data rates for the 203H AP are up to 433Mbps in the 5GHz band and 200Mbps in the 2.4GHz band.

The The 203H AP can be easily mounted to a standard data wall-box using the existing structured cabling system or converted to a desk mounted AP using an optional mounting kit. With its flexible deployment options, the 203H is designed to deliver high-speed Wi-Fi for cost- sensitive, medium-density environments. It ensures the most cost-effective Wi-Fi connectivity for indoor premises including hotel rooms, dormitories, small offices and remote workstations.

Powered by PoE, the 203H AP minimizes power consumption with rich features that further facilitates a highly efficient and reliable wireless network. The 802.11ac 203H AP combines wireless and wired access in a single compact device. The local Gigabit Ethernet port can securely attach wired devices to your network. Additionally, the USB host interface on the AP allows the plug-in of Aruba BLE radio modules to enable advanced location and indoor wayfinding, and proximity- based push notification services.

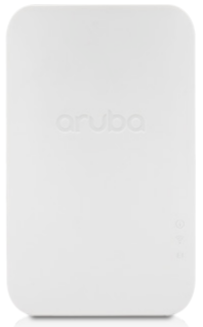

Single-gang wall-box (primary hospitality deployment)

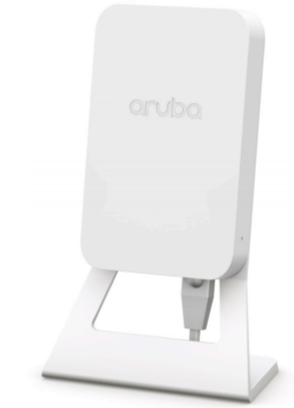

Desk mount (primary remote/branch deployment, using optional desk mount accessory)

CHOOSE YOUR DEPLOYMENT AND OPERATING MODES

Aruba APs offer a choice of deployment and operating modes to meet your unique management and deployment requirements:

The 203H AP is the unified AP that supports both controller-based and controllerless deployment modes, providing maximum flexibility
Controller-based mode: When deployed in conjunction with an Aruba Mobility Controller, Aruba APs offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding.
Controllerless (Instant) mode: The controller function is virtualized in a cluster of APs in Instant mode. As the network grows and/or requirements change, Instant deployments can easily migrate to controller- based mode.
Remote AP (RAP) mode for branch deployments
Air monitor (AM) for wireless IDS, rogue detection and containment
Secure enterprise mesh

For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, APs in Instant mode can configure themselves when powered up.

Benefits:

Two devices in one

The 203H ships with everything you need to deploy as a wall-mounted (hospitality) AP, attaching directly to a standard single-gang data wall-box. The 203H can also be easily converted to a desk mounted (remote) AP, using an optional accessory stand.

Deploy with or without controller

The 203H can be deployed in either controller-based (ArubaOS) or controllerless (InstantOS) deployment mode.

New 802.11ac flexible radio architecture

The 203H AP is software configurable to operate in either 1x1 dual radio mode, or 2x2 single radio dual-band mode.

Supports up to 867Mbps in the 5GHz band (with 2SS/VHT80 clients) or up to 400Mbps in the 2.4 GHz band (with 2SS/VHT40 clients). In 1x1 dual radio mode, these max speeds are up to 433Mbps and 200Mbps respectively

Optional Bluetooth Low-Energy (BLE) radio module support

Enables location-based services and other capabilities. • USB BLE radio module securely attaches to AP.

RF Management

Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness and ensures that APs stay clear of all sources of RF interference to deliver reliable, high- performance WLANs

The 203H can be configured to provide part-time or dedicated air monitoring for wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available.

Security

Integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances.

IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats.

Integrated Trusted Platform Module (TPM) for secure storage of credentials, certificates and keys.

Intelligent app visibility and control

AppRF technology leverages deep packet inspection to classify and block, prioritize or limit bandwidth for over 2,500 enterprise apps or groups of apps.

Quality of service for unified communication apps

Supports priority handling and policy enforcement for unified communication apps, including Microsoft Skype for Business with encrypted videoconferencing, voice, chat and desktop sharing.

Specifications:

AP-203H Specifications
203H ACCESS POINT SPECIFICATIONS Unified flexible radio 802.11ac 2x2:2SS hospitality and branch AP with internal antennas Supports wall-box and desk mount deployments WI-FI RADIO SPECIFICATIONS AP type: Indoor, flexible radio: 5GHz 802.11ac 2x2 MIMO OR 2.4GHz 802.11n 2x2 MIMO, or 5GHz 802.11ac 1x1 AND 2.4GHz 802.11n 1x1 Software-configurable dual radio supports 5GHz (Radio 0) and 2.4GHz (Radio 1) 5GHz: Two spatial stream Single User (SU) MIMO for up to 867Mbps wireless data rate to individual 2x2 VHT80 client devices 2.4GHz: Two spatial stream Single User (SU) MIMO for up to 400Mbps wireless data rate to individual 2x2 VHT40 client devices (300Mbps for HT40 802.11n client devices) Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per AP Supported frequency bands (country-specific restrictions apply): 2.400 to 2.4835GHz 5.150 to 5.250GHz 5.250 to 5.350GHz 5.470 to 5.725GHz 5.725 to 5.850GHz Available channels: Dependent on configured regulatory domain Dynamic frequency selection (DFS) optimizes the use of available RF spectrum Supported radio technologies: 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) Supported modulation types: 802.11b: BPSK, QPSK, CCK 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM Transmit power: Configurable in increments of 0.5 dBm Maximum (conducted) transmit power (limited by local regulatory requirements): 2.4GHz band: +18 dBm per chain, +21 dBm aggregate (2x2) 5GHz band: +18 dBm per chain, +21 dBm aggregate (2x2) Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain Maximum ratio combining (MRC) for improved receiver performance Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance Short guard interval for 20MHz, 40MHz and 80MHz channels Space-time block coding (STBC) for increased range and improved reception Low-density parity check (LDPC) for high-efficiency error correction and increased throughput Transmit beam-forming (TxBF) for increased signal reliability and range Supported data rates (Mbps): 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15) 802.11n (5GHz): 6.5 to 450 (MCS0 to MCS23) 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80) 802.11n high-throughput (HT) support: HT 20/40 802.11ac very high throughput (VHT) support: VHT 20/40/80 802.11n/ac packet aggregation: A-MPDU, A-MSDU OTHER INTERFACES Uplink: 10/100/1000BASE-T Ethernet (RJ-45, back) Auto-sensing link speed and MDI/MDX 802.3az Energy Efficient Ethernet (EEE) PoE-PD (input): 48 Vdc (nominal) 802.3af/at PoE Local: 10/100/1000BASE-T Ethernet (RJ-45, bottom) Auto-sensing link speed and MDI/MDX 802.3az Energy Efficient Ethernet (EEE) Passive pass-through interface (two RJ-45, back and bottom) USB host interface (Type A connector) For Aruba LS-BT1USB BLE radio modules only Visual indicators (LEDs): Power/system status Radio status Local network port status Reset/LED control button (“paperclip access”) Factory reset (when activated during device power up) LED control: toggle of/normal Serial console interface (custom, uUSB physical jack)	WI-FI ANTENNAS Two integrated dual-band moderately directional antennas for 2x2 MIMO with maximum individual antenna gain of 4.3dBi in 2.4GHz and 6.3dBi in 5GHz. Built-in antennas are optimized for vertical orientation of the AP. The horizontal beamwidth is roughly 120 degrees. Combining the patterns of each of the antennas of the MIMO radios (in 2x2 mode), the peak gain of the effective per-antenna pattern is 3.8dBi in 2.4GHz and 4dBi in 5GHz. ENCRYPTED THROUGHPUT Maximum IPsec encrypted wired throughput: 100Mbps POWER SOURCES AND CONSUMPTION The AP supports direct DC power and Power over Ethernet (PoE) An optional PoE power injector is sold separately Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af/802.3at compliant source Maximum (worst-case) power consumption: 9.7W Maximum (worst-case) power consumption in idle mode: 4.9W (PoE) or 4.8W (DC) MOUNTING The AP ships with a mounting plate to attach the AP to a single-gang wall-box (most international variations covered). The AP securely attaches to the plate; a custom security tool to remove the AP from the plate ships with the product. Several optional mount kits are available to attach the AP to a dual-gang wall-box, directly to the wall, or to support desk mounting. MECHANICAL Dimensions/weight (unit, including single-gang wall box mount plate): 86mm (W) x 26.5mm (D) x 140mm (H) 225g Dimensions/weight (shipping): 115mm (W) x 47mm (D) x 165mm (H) 290g ENVIRONMENTAL Operating Temperature: 0° C to +40° C (+32° F to +104° F) Humidity: 5% to 93% non-condensing Storage and transportation: Temperature: -40° C to +70° C (-40° F to +158° F) REGULATORY FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 60950 EN 60601-1-1 and EN 60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative. RELIABILITY MTBF: 780,000 hours (89 years) at +25C operating temperature REGULATORY MODEL NUMBER AP-203H-xx (all variants): APINH203 CERTIFICATIONS CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac WARRANTY Aruba limited lifetime warranty MINIMUM SOFTWARE VERSIONS ArubaOS™: 6.5.2.0/8.2.0.0 InstantOS™: 6.5.2.0/8.2.0.0

AP-203H Specifications

203H ACCESS POINT SPECIFICATIONS

Unified flexible radio 802.11ac 2x2:2SS hospitality and branch AP with internal antennas
Supports wall-box and desk mount deployments

WI-FI RADIO SPECIFICATIONS

AP type: Indoor, flexible radio:
- 5GHz 802.11ac 2x2 MIMO OR 2.4GHz 802.11n 2x2 MIMO, or
- 5GHz 802.11ac 1x1 AND 2.4GHz 802.11n 1x1
Software-configurable dual radio supports 5GHz (Radio 0) and 2.4GHz (Radio 1)
5GHz: Two spatial stream Single User (SU) MIMO for up to 867Mbps wireless data rate to individual 2x2 VHT80 client devices
2.4GHz: Two spatial stream Single User (SU) MIMO for up to 400Mbps wireless data rate to individual 2x2 VHT40 client devices (300Mbps for HT40 802.11n client devices)
Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per AP
Supported frequency bands (country-specific restrictions apply):
- 2.400 to 2.4835GHz
- 5.150 to 5.250GHz
- 5.250 to 5.350GHz
- 5.470 to 5.725GHz
- 5.725 to 5.850GHz
Available channels: Dependent on configured regulatory domain
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Transmit power: Configurable in increments of 0.5 dBm
Maximum (conducted) transmit power (limited by local regulatory requirements):
- 2.4GHz band: +18 dBm per chain, +21 dBm aggregate (2x2)
- 5GHz band: +18 dBm per chain, +21 dBm aggregate (2x2)
- Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Short guard interval for 20MHz, 40MHz and 80MHz channels
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range
Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)
- 802.11n (5GHz): 6.5 to 450 (MCS0 to MCS23)
- 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)
802.11n high-throughput (HT) support: HT 20/40
802.11ac very high throughput (VHT) support: VHT 20/40/80
802.11n/ac packet aggregation: A-MPDU, A-MSDU

OTHER INTERFACES

Uplink: 10/100/1000BASE-T Ethernet (RJ-45, back)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
- PoE-PD (input): 48 Vdc (nominal) 802.3af/at PoE
Local: 10/100/1000BASE-T Ethernet (RJ-45, bottom)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
Passive pass-through interface (two RJ-45, back and bottom)
- USB host interface (Type A connector)
- For Aruba LS-BT1USB BLE radio modules only
Visual indicators (LEDs):
- Power/system status
- Radio status
- Local network port status
Reset/LED control button (“paperclip access”)
- Factory reset (when activated during device power up)
- LED control: toggle of/normal
Serial console interface (custom, uUSB physical jack)

WI-FI ANTENNAS

Two integrated dual-band moderately directional antennas for 2x2 MIMO with maximum individual antenna gain of 4.3dBi in 2.4GHz and 6.3dBi in 5GHz. Built-in antennas are optimized for vertical orientation of the AP. The horizontal beamwidth is roughly 120 degrees.
- Combining the patterns of each of the antennas of the MIMO radios (in 2x2 mode), the peak gain of the effective per-antenna pattern is 3.8dBi in 2.4GHz and 4dBi in 5GHz.

ENCRYPTED THROUGHPUT

Maximum IPsec encrypted wired throughput: 100Mbps

POWER SOURCES AND CONSUMPTION

The AP supports direct DC power and Power over Ethernet (PoE)
An optional PoE power injector is sold separately
Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af/802.3at compliant source
Maximum (worst-case) power consumption: 9.7W
Maximum (worst-case) power consumption in idle mode: 4.9W (PoE) or 4.8W (DC)

MOUNTING

The AP ships with a mounting plate to attach the AP to a single-gang wall-box (most international variations covered). The AP securely attaches to the plate; a custom security tool to remove the AP from the plate ships with the product.
Several optional mount kits are available to attach the AP to a dual-gang wall-box, directly to the wall, or to support desk mounting.

MECHANICAL

Dimensions/weight (unit, including single-gang wall box mount plate):
- 86mm (W) x 26.5mm (D) x 140mm (H)
- 225g
Dimensions/weight (shipping):
- 115mm (W) x 47mm (D) x 165mm (H)
- 290g

ENVIRONMENTAL

Operating
- Temperature: 0° C to +40° C (+32° F to +104° F)
- Humidity: 5% to 93% non-condensing
Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158° F)

REGULATORY

FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 60950
EN 60601-1-1 and EN 60601-1-2

For more country-specific regulatory information and approvals, please see your Aruba representative.

RELIABILITY

MTBF: 780,000 hours (89 years) at +25C operating temperature

REGULATORY MODEL NUMBER

AP-203H-xx (all variants): APINH203

CERTIFICATIONS

CB Scheme Safety, cTUVus
UL2043 plenum rating
Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac

WARRANTY

Aruba limited lifetime warranty

MINIMUM SOFTWARE VERSIONS

ArubaOS™: 6.5.2.0/8.2.0.0
InstantOS™: 6.5.2.0/8.2.0.0

Wireless Radio Specifications:

RF Performance Table
	Maximum transmit power (dBm) per transmit chain	Receiver sensitivity (dBm) per receive chain
2.4 GHz - 802.11b
1 Mbps	18.0	-92.0
11 Mbps	18.0	-88.0
2.4 GHz - 802.11g
6 Mbps	18.0	-88.0
54 Mbps	18.0	-73.0
2.4 GHz - 802.11n HT20
MCS0/8	17.0	-88.0
MCS7/15	17.0	-71.0
2.4 GHz - 802.11n HT40
MCS0/8	17.0	-85.0
MCS7/15	17.0	-68.0
5 GHz - 802.11a
6 Mbps	16.0	-88.0
54 Mbps	16.0	-72.0
5 GHz - 802.11n HT20
MCS0/8	16.0	-88.0
MCS7/15	15.0	-70.0
5 GHz - 802.11n HT40
MCS0/8	16.0	-85.0
MCS7/15	16.0	-67.0
5 GHz - 802.11ac VHT20
MCS0	16.0	-88.0
MCS8	15.0	-65.0
5 GHz - 802.11ac VHT40
MCS0	16.0	-85.0
MCS9	13.0	-62.0
5 GHz - 802.11ac VHT80
MCS0	16.0	-85.0
MCS9	13.0	-59.0

Table shows the maximum capability of the hardware provided (excluding antenna gain). Maximum transmit power is limited by local regulatory settings.

Antenna Pattern Plots:

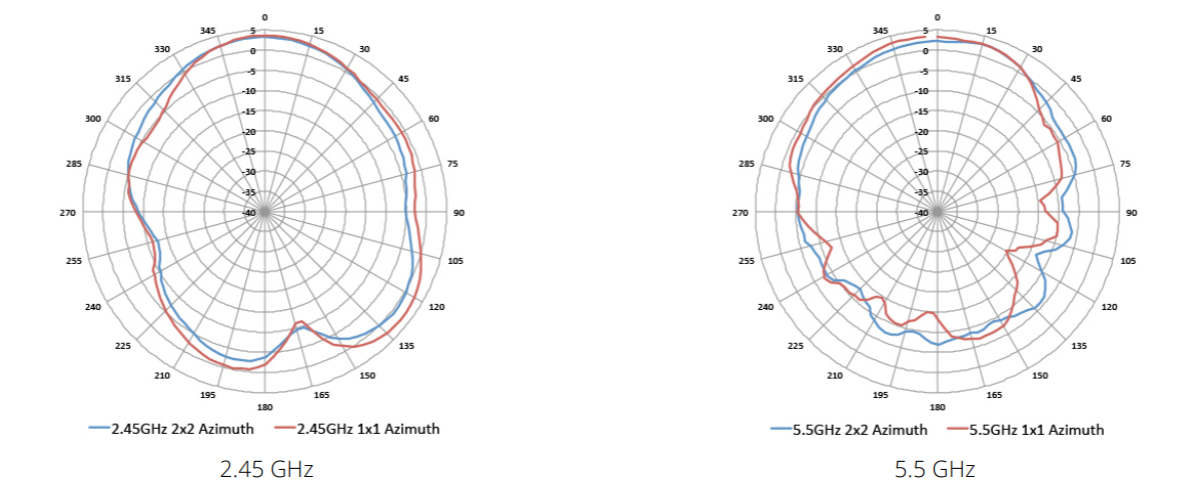

Horizontal or Azimuth plane (top view, AP front facing left)

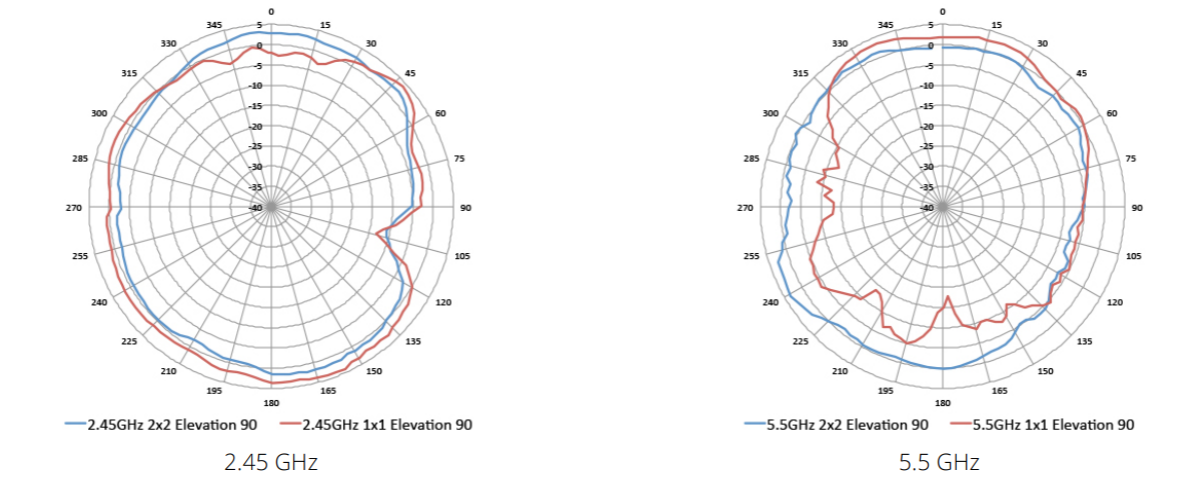

Elevation plane (side view, AP front facing left)

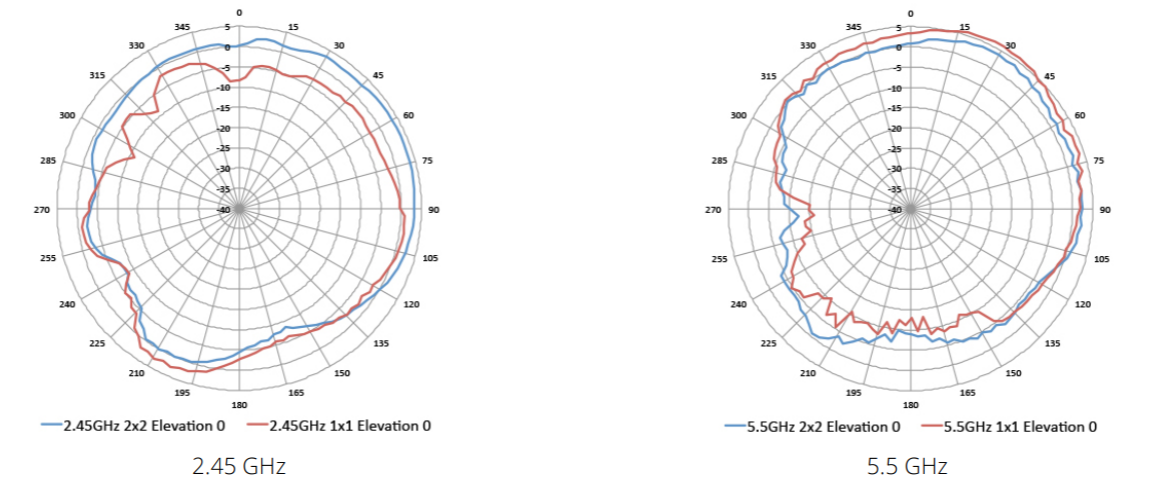

Elevation plane (front view)

Documentation:
