Aruba AP-315 Access Point
High performance 802.11ac Wave 2 access points

Aruba AP-315 Access Point

Sorry, this unit has been discontinued and is no longer available for purchase, the recommended replacement product is - Aruba AP-515 (US) Unified AP #Q9H63A.

End of Sale (EOS) : 31-Dec-2021 - EOS dates are dependent upon the continued availability of stock, we strongly encourage customers to transition new orders to the replacement product that is identified.

End of Support (EOST): 31-Dec-2026 - After this date, all support services for the product are unavailable, and the product reaches End of Life.

Please Contact Us for stock availability, placing orders and/or better pricing.

Click here to jump to more pricing!

Antenna Pattern Plots

Documentation

Overview:

The Aruba 310 Series access points deliver high performance and superb user experience for mobile devices, Internet of Things (IoT) devices, and applications in dense office environments. Featuring the 4x4:4SS MU-MIMO capability, advanced Aruba ClientMatch radio management, and Aruba Beacon technologies, the 310 Series enables an all-wireless digital work environment in a cost-effective manner.

With a maximum concurrent data rate of 1,733 Mbps in the 5 GHz band and 400 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 2.1 Gbps), the 310 Series Access Points can quickly add required capacities to your existing or new wireless networks. The mid-range 310 Series, with its single gigabit Ethernet uplink, is ideal for high device density environments, such as schools, retail branches, hotels and enterprise offices, where the organization is cost sensitive.

The high performance and high density 802.11ac 310 Series supports 160 MHz channel bandwidth (VHT160), multi-user MIMO (MU-MIMO) and 4 spatial streams (4SS). It provides simultaneous data transmission to multiple devices, maximizing data throughput and improving network efficiency.

The 310 Series includes the enhanced ClientMatch technology that extends the client steering technology with MU-MIMO client awareness. It automatically identifies MU-MIMO capable mobile devices and steers those devices to the closest MU-MIMO capable Aruba access point. By grouping MU-MIMO capable mobile devices together, the network starts taking advantage of the simultaneous transmission to these devices, increasing its overall capacity. These dynamic roaming policies that are based on device types, help users achieve the best WLAN performance in a mixed device environment during the technology transition period.

The 310 Series also has an integrated Bluetooth Aruba Beacon that simplifies the remote management of a network of large-scale battery-powered Aruba beacons while also providing advanced location and indoor way finding, and proximity-based push notification capabilities. It enables businesses to leverage mobility context to develop applications that will deliver an enhanced user experience and increase the value of the wireless network for organizations.

Boost network efficiency
With multi-user MIMO (MU-MIMO), you can transmit to multiple Wave 2 clients from an AP, at the same time.

ClientMatch unleashes MU-MIMO
Aruba ClientMatch software groups Wave 2 clients together, enabling MU-MIMO. That means a faster, more efficient network.

Integrated Bluetooth Beacon
310 series APs have an integrated BLE Beacon to simplify management of a large-scale network of battery-powered Aruba Beacons.

Choose your operating mode

Aruba 310 Series Access Points offer a choice of operating modes to meet your unique management and deployment requirements.

Controller-managed mode – When managed by Aruba Mobility Controllers, Aruba 310 Series Access Points offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding.
Aruba Instant mode – In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up one Instant AP, configure it over the air, and plug in the other APs – the entire process takes about five minutes. If WLAN requirements change, a built-in migration path allows 310 Series instant APs to become part of a WLAN that is managed by a Mobility Controller.
Remote AP (RAP) for branch deployments
Air monitor (AM) for wireless IDS, rogue detection and containment
Spectrum analyzer, dedicated or hybrid, for identifying sources of RF interference
Secure enterprise mesh

For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, Instant APs are factoryshipped to any site and configure themselves when powered up.

Benefits:

Dual Radio 802.11ac access point with Multi-User MIMO

Supports up to 1,733Mbps in the 5GHz band (with 4SS/VHT80 or 2SS/VHT160 clients) and up to 400Mbps in the 2.4 GHz band (with 2SS/VHT40 clients).

Built-in Bluetooth Low-Energy (BLE) radio

Enables location based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time.

Advanced Cellular Coexistence (ACC)

Minimizes interference from 3G/4G cellular networks, distributed antenna systems and commercial small cell/femtocell equipment.

Quality of service for Unified Communication apps

Supports priority handling and policy enforcement for unified communication apps, including Microsoft Skype for Business with encrypted videoconferencing, voice, chat and desktop sharing.

RF Management

Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-performance WLANs.
The Aruba 310 Series APs can be configured to provide part-time or dedicated air monitoring for spectrum analysis and wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available.

Support for additional 5GHz bands

Supports software upgrade to enable additional 5GHz spectrum when governments expand available frequencies.

Intelligent app visibility and control

AppRF technology leverages deep packet inspection to classify and block, prioritize or limit bandwidth for over 1,500 enterprise apps or groups of apps.

Security

Integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances.
IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats.
Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys.

Intelligent Power Monitoring (IPM)

Enables the AP to continuously monitor and report its actual power consumption and optionally make autonomous decisions to disable certain capabilities
For the 310 Series access points, the IPM power-save feature applies when the unit is powered by an 802.3af PoE source. By default, the USB interface will be the first feature to turn off if AP power consumption will exceed the available power budget. In rare cases, it may be necessary to take additional power saving measures, but in most cases, the 310 Series APs will operate in unrestricted mode.

Specifications:

AP-314 and AP-315 Specifications
AP-310 Series Specifications AP-314 (controller-managed) and IAP-314 (Instant): 802.11ac - 5GHz 4x4 MIMO (1,733Mbps max rate) and 2.4GHz 2x2 MIMO (400Mbps max rate) radios, with a total of four dual-band RP-SMA connectors for external antennas AP-315 (controller-managed) and IAP-315 (Instant): 802.11ac - 5GHz 4x4 MIMO (1,733Mbps max rate) and 2.4GHz 2x2 MIMO (400Mbps max rate) radios, with a total of four integrated omni-directional downtilt dual-band antennas Wireless Radio Specifications AP type: Indoor, dual radio, 5GHz 802.11ac 4x4 MIMO and 2.4GHz 802.11n 2x2 MIMO Software-configurable dual radio supports 5GHz (Radio 0) and 2.4GHz (Radio 1) 5GHz: Four spatial stream Single User (SU) MIMO for up to 1,733Mbps wireless data rate to individual 4x4 VHT80 or 2x2 VHT160 client devices 2.4GHz: Two spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate to individual 2x2 VHT40 client devices (300Mbps for HT40 802.11n client devices) 5GHz: Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously Support for up to 255 associated client devices per radio, and up to 16 BSSIDs per radio Supported frequency bands (country-specific restrictions apply): 2.400 to 2.4835GHz 5.150 to 5.250GHz 5.250 to 5.350GHz 5.470 to 5.725GHz 5.725 to 5.850GHz Available channels: Dependent on configured regulatory domain Dynamic frequency selection (DFS) optimizes the use of available RF spectrum Supported radio technologies: 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) Supported modulation types: 802.11b: BPSK, QPSK, CCK 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM Transmit power: Configurable in increments of 0.5 dBm Maximum (conducted) transmit power (limited by local regulatory requirements): 2.4GHz band: +18 dBm per chain, +21dBm aggregate (2x2) 5GHz band: +18 dBm per chain, +24dBm aggregate (4x4) Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks Maximum ratio combining (MRC) for improved receiver performance Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance Short guard interval for 20MHz, 40MHz, 80MHz and 160MHz channels Space-time block coding (STBC) for increased range and improved reception Low-density parity check (LDPC) for high-efficiency error correction and increased throughput Transmit beam-forming (TxBF) for increased signal reliability and range Supported data rates (Mbps): 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15) 802.11n (5GHz): 6.5 to 600 (MCS0 to MCS31) 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160) 802.11n high-throughput (HT) support: HT 20/40 802.11ac very high throughput (VHT) support: VHT 20/40/80/160 802.11n/ac packet aggregation: A-MPDU, A-MSDU WiFi Antennas AP-314/IAP-314: Four RP-SMA connectors for external dual band antennas. Worst-case internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 0.6dB in 2.4GHz and 1.2dB in 5GHz. AP-315/IAP-315: Four integrated dual-band downtilt omni-directional antennas for 4x4 MIMO with maximum antenna gain of 3.1dBi in 2.4GHz and 5.0dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees. The maximum gain of the combined (summed) antenna patterns for all elements operating in the same band is 3.9dBi in 2.4GHz and 5.7dBi in 5GHz. Other Interfaces One 10/100/1000BASE-T Ethernet network interface (RJ-45) Auto-sensing link speed and MDI/MDX 802.3az Energy Efficient Ethernet (EEE) USB 2.0 host interface (Type A connector) Bluetooth Low Energy (BLE) radio Up to 4dBm transmit power (class 2) and -91dBm receive sensitivity Integrated antenna with roughly 30 degrees downtilt and peak gain of 3.4dBi (AP-314/IAP-314) or 1.5dBi (AP-315/IAP-315) Visual indicators (multi-color LEDs): for System and Radio status Reset button: factory reset (during device power up) Serial console interface (proprietary; optional adapter cable available) Kensington security slot	Power Sources and Consumption The AP supports direct DC power and Power over Ethernet (POE) When both power sources are available, DC power takes priority over POE Power sources are sold separately Direct DC source: 12Vdc nominal, +/- 5% Interface accepts 2.1/5.5-mm center-positive circular plug with 9.5-mm length Power over Ethernet (POE): 48 Vdc (nominal) 802.3af/802.3at compliant source Unrestricted functionality with 802.3at POE When using IPM, the AP may enter power-save mode with reduced functionality when powered by an 802.3af POE source (see details on Intelligent Power Monitoring elsewhere in this datasheet) Without IPM, the USB port is disabled and transmit power of the 2.4GHz radio chains is reduced by 3dB to 15dBm max when the AP is powered by and 802.3af POE source Maximum (worst-case) power consumption: 14.4W (802.3at POE), 13.6W (802.3af POE) or 12.7W (DC) Excludes power consumed by external USB device (and internal overhead); this could add up to 6.3W (POE) or 5.9W (DC) for a 5W/1A USB device Maximum (worst-case) power consumption in idle mode: 6.4W (POE) or 5.9W (DC) Mounting The AP ships with two (white) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling. Several optional mount kits are available to attach the AP to a variety of surfaces; see the Ordering Information section below for details Mechanical Dimensions/weight (unit, excluding mount accessories): 182mm(W) x 180mm(D) x 48mm (H) 650g/23oz Dimensions/weight (shipping): 223mm(W) x 218mm(D) x 55mm(H) (W x D x H) 850g/30oz Environmental Operating: Temperature: 0° C to +50° C (+32° F to +122° F) Humidity: 5% to 95% non-condensing Storage and transportation: Temperature: -40° C to +70° C (-40° F to +158° F) Regulatory FCC/Industry of Canada CE Marked R&TTE Directive 1995/5/EC Low Voltage Directive 72/23/EEC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN 60601-1-1 and EN 60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative. Reliability MTBF: 916,373hrs (105yrs) at +25C operating temperature Regulatory Model Number AP-314 and IAP-314: APIN0314 AP-315 and IAP-315: APIN0315 Certifications CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac Warranty Aruba limited lifetime warranty Minimum Software Versions ArubaOS 6.5.0.0 Aruba InstantOS 4.3.0.0

AP-314 and AP-315 Specifications

AP-310 Series Specifications

AP-314 (controller-managed) and IAP-314 (Instant):
- 802.11ac - 5GHz 4x4 MIMO (1,733Mbps max rate) and 2.4GHz 2x2 MIMO (400Mbps max rate) radios, with a total of four dual-band RP-SMA connectors for external antennas
AP-315 (controller-managed) and IAP-315 (Instant):
- 802.11ac - 5GHz 4x4 MIMO (1,733Mbps max rate) and 2.4GHz 2x2 MIMO (400Mbps max rate) radios, with a total of four integrated omni-directional downtilt dual-band antennas

Wireless Radio Specifications

AP type: Indoor, dual radio, 5GHz 802.11ac 4x4 MIMO and 2.4GHz 802.11n 2x2 MIMO
Software-configurable dual radio supports 5GHz (Radio 0) and 2.4GHz (Radio 1)
5GHz: Four spatial stream Single User (SU) MIMO for up to 1,733Mbps wireless data rate to individual 4x4 VHT80 or 2x2 VHT160 client devices
2.4GHz: Two spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate to individual 2x2 VHT40 client devices (300Mbps for HT40 802.11n client devices)
5GHz: Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously
Support for up to 255 associated client devices per radio, and up to 16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply):
- 2.400 to 2.4835GHz
- 5.150 to 5.250GHz
- 5.250 to 5.350GHz
- 5.470 to 5.725GHz
- 5.725 to 5.850GHz
Available channels: Dependent on configured regulatory domain
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Transmit power: Configurable in increments of 0.5 dBm
Maximum (conducted) transmit power (limited by local regulatory requirements):
- 2.4GHz band: +18 dBm per chain, +21dBm aggregate (2x2)
- 5GHz band: +18 dBm per chain, +24dBm aggregate (4x4)
- Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain
Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Short guard interval for 20MHz, 40MHz, 80MHz and 160MHz channels
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range
Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)
- 802.11n (5GHz): 6.5 to 600 (MCS0 to MCS31)
- 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160)
802.11n high-throughput (HT) support: HT 20/40
802.11ac very high throughput (VHT) support: VHT 20/40/80/160
802.11n/ac packet aggregation: A-MPDU, A-MSDU

WiFi Antennas

AP-314/IAP-314: Four RP-SMA connectors for external dual band antennas. Worst-case internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 0.6dB in 2.4GHz and 1.2dB in 5GHz.
AP-315/IAP-315: Four integrated dual-band downtilt omni-directional antennas for 4x4 MIMO with maximum antenna gain of 3.1dBi in 2.4GHz and 5.0dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.
- The maximum gain of the combined (summed) antenna patterns for all elements operating in the same band is 3.9dBi in 2.4GHz and 5.7dBi in 5GHz.

Other Interfaces

One 10/100/1000BASE-T Ethernet network interface (RJ-45)
- Auto-sensing link speed and MDI/MDX
802.3az Energy Efficient Ethernet (EEE)
USB 2.0 host interface (Type A connector)
Bluetooth Low Energy (BLE) radio

Up to 4dBm transmit power (class 2) and -91dBm receive sensitivity
Integrated antenna with roughly 30 degrees downtilt and peak gain of 3.4dBi (AP-314/IAP-314) or 1.5dBi (AP-315/IAP-315)

Visual indicators (multi-color LEDs): for System and Radio status
Reset button: factory reset (during device power up)
Serial console interface (proprietary; optional adapter cable available)
Kensington security slot

Power Sources and Consumption

The AP supports direct DC power and Power over Ethernet (POE)
When both power sources are available, DC power takes priority over POE
Power sources are sold separately
Direct DC source: 12Vdc nominal, +/- 5%
- Interface accepts 2.1/5.5-mm center-positive circular plug with 9.5-mm length
Power over Ethernet (POE): 48 Vdc (nominal) 802.3af/802.3at compliant source
- Unrestricted functionality with 802.3at POE
- When using IPM, the AP may enter power-save mode with reduced functionality when powered by an 802.3af POE source (see details on Intelligent Power Monitoring elsewhere in this datasheet)
- Without IPM, the USB port is disabled and transmit power of the 2.4GHz radio chains is reduced by 3dB to 15dBm max when the AP is powered by and 802.3af POE source
Maximum (worst-case) power consumption: 14.4W (802.3at POE), 13.6W (802.3af POE) or 12.7W (DC)

Excludes power consumed by external USB device (and internal overhead); this could add up to 6.3W (POE) or 5.9W (DC) for a 5W/1A USB device

Maximum (worst-case) power consumption in idle mode: 6.4W (POE) or 5.9W (DC)

Mounting

The AP ships with two (white) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling.
Several optional mount kits are available to attach the AP to a variety of surfaces; see the Ordering Information section below for details

Mechanical

Dimensions/weight (unit, excluding mount accessories):
- 182mm(W) x 180mm(D) x 48mm (H)
- 650g/23oz
Dimensions/weight (shipping):
- 223mm(W) x 218mm(D) x 55mm(H) (W x D x H)
- 850g/30oz

Environmental

Operating:
- Temperature: 0° C to +50° C (+32° F to +122° F)
- Humidity: 5% to 95% non-condensing
Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158° F)

Regulatory

FCC/Industry of Canada
CE Marked
R&TTE Directive 1995/5/EC
Low Voltage Directive 72/23/EEC
EN 300 328
EN 301 489
EN 301 893
UL/IEC/EN 60950
EN 60601-1-1 and EN 60601-1-2

For more country-specific regulatory information and approvals, please see your Aruba representative.

Reliability

MTBF: 916,373hrs (105yrs) at +25C operating temperature

Regulatory Model Number

AP-314 and IAP-314: APIN0314
AP-315 and IAP-315: APIN0315

Certifications

CB Scheme Safety, cTUVus
UL2043 plenum rating
Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac

Warranty

Aruba limited lifetime warranty

Minimum Software Versions

ArubaOS 6.5.0.0
Aruba InstantOS 4.3.0.0

Wireless Radio Specifications:

RF Performance Table
	Maximum transmit power (dBm) per transmit chain	Receiver sensitivity (dBm) per receive chain
2.4 GHz - 802.11b
1 Mbps	18.0	-95.0
11 Mbps	18.0	-88.0
2.4 GHz - 802.11g
6 Mbps	18.0	-91.0
54 Mbps	16.0	-74.0
2.4 GHz - 802.11n HT20
MCS0/8	18.0	-90.0
MCS7/15	14.0	-71.0
2.4 GHz - 802.11n HT40
MCS0/8	18.0	-87.0
MCS7/15	14.0	-68.0
5 GHz - 802.11a
6 Mbps	18.0	-90.0
54 Mbps	16.0	-73.0
5 GHz - 802.11n HT20
MCS0/8	18.0	-90.0
MCS7/15	14.0	-71.0
5 GHz - 802.11n HT40
MCS0/8	18.0	-87.0
MCS7/15	14.0	-68.0
5 GHz - 802.11ac VHT20
MCS0	18.0	-90.0
MCS9	12.0	-65.0
5 GHz - 802.11ac VHT40
MCS0	18.0	-87.0
MCS9	12.0	-62.0
5 GHz - 802.11ac VHT80
MCS0	18.0	-83.0
MCS9	12.0	-59.0
5 GHz - 802.11ac VHT160
MCS0	18.0	-82.0
MCS9	12.0	-57.0

Maximum capability of the hardware provided (excluding antenna gain). Maximum transmit power is limited by local regulatory settings.

Antenna Pattern Plots:

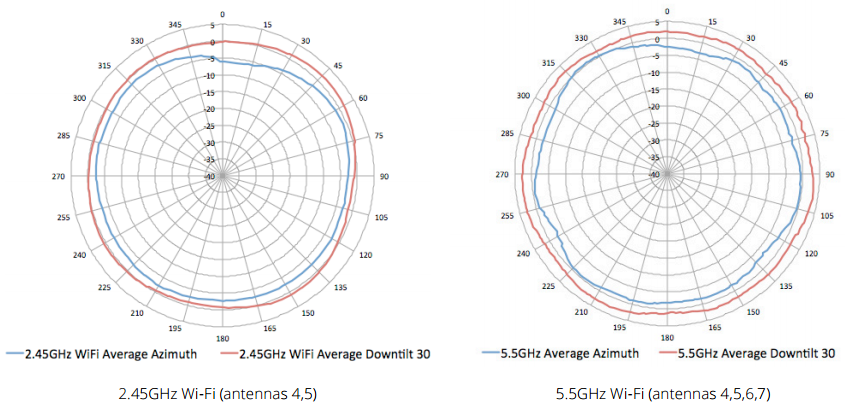

Horizontal planes (top view, AP facing forward)

Showing azimuth (0 degrees) and 30 degrees downtilt pattern

Horizontal planes (top view, AP facing forward)

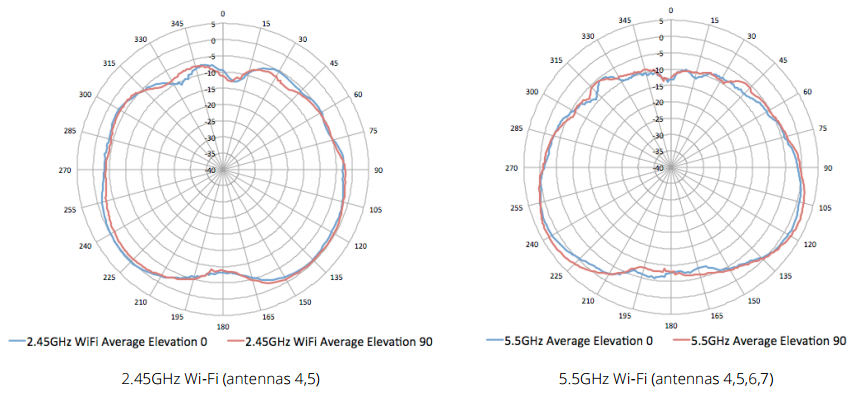

Elevation planes (side view, AP facing down)

Showing side view with AP rotated 0 and 90 degrees

Elevation planes (side view, AP facing down)

Documentation:

Aruba AP-310 Series Access Points Datasheet (.PDF)
