Aruba Indoor Only Antennas
Antennas for Indoor Access Points with RP-SMA connector

AP-ANT-1B Indoor Omni-Directional, 2.4/5 GHz AP Mounted Antenna

The AP-ANT-1 is a high-performance, tri-band, omnidirectional, indoor antenna ideally designed for multifunction access points that require an omnidirectional coverage pattern for WLAN service delivery or air monitoring on both the 2.4 GHz and 5 GHz bands. AP-ANT-1 has an articulating mount, providing flexibility in deployment and direct connection to Aruba access points with an onboard RP-SMA connector. The AP-ANT-1 is the preferred choice for multi-purpose service deployment or wireless intrusion prevention (WIP). It is offered in two colors to match the colors of Aruba indoor access points: the AP-ANT-1B antenna in off-white, and the AP-ANT-1W antenna in white.

Aruba Indoor Antenna AP-ANT-1B Datasheet (.PDF)

Technical Specifications
Frequency/Gain	• 2.4 - 2.5 GHz / 3.8 dBi • 4.900 - 5.875 GHz / 5.8 dBi
Polarization & Element Type	Linear Vertical. Omni-directional patterns at all frequencies with increased gain in mid and upper 5 GHz bands
Beamwidth	2.4-2.5 GHz • E-Plane 50 degrees • H-Plane 360 degrees 4.9-5.875 GHz • E-Plane 25 degrees • H-Plane 360 degrees
Maximum Input Power	• 2 watts • Impedence - 50Ω • VSWR <2.0:1
Dimensions	1.54” x 0.75” x 5.00” (3.9 x 1.9 x 12.7cm)
Operating Temperature	14ºF to 131ºF (-10ºC to +55ºC)
Housing	ABS, UV-resistant
Fly Cable Length/Connector	Articulating mount with built-in RP-SMA

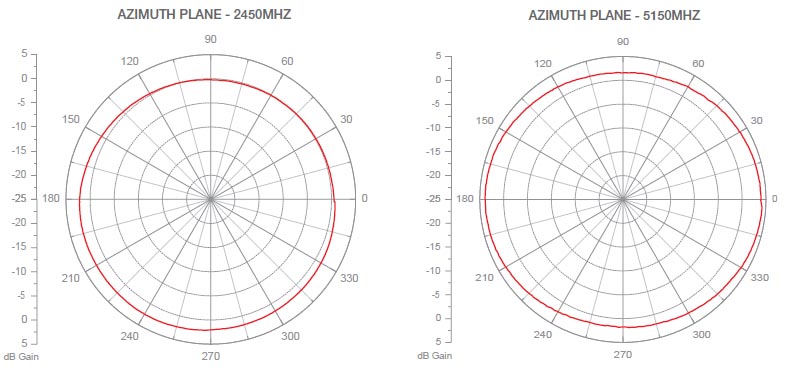

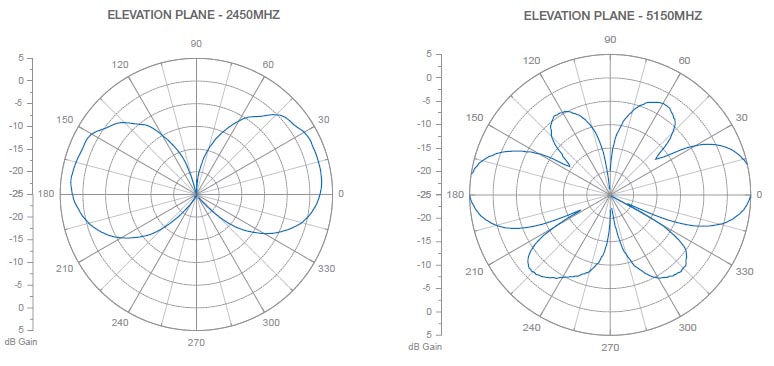

Antenna Pattern

AP-ANT-13B Indoor MIMO 2.4-2.5 GHZ and 4.9-5.9 GHz Ceiling Mount Antenna

AP-ANT-13B antenna offers characteristics that are only normally seen in much larger antennas, offering ”no compromise” coverage ideally suited for high-density AP deployments. The AP-ANT-13B antenna features a discrete, small package that easily blends into the office environment and its well-defined coverage area ensures excellent system-wide in-building performance in high-density, high-capacity environments. Ideal for conference rooms, dense cubicle deployments.

The AP-ANT-13B is available as a single antenna or a multipack three antenna kit, the AP-ANT-13B-KIT. An array of three AP-ANT-13Bs can be used with a single AP-124 to provide full dual-band 802.11a/b/g/n MIMO coverage, or the AP-ANT-13B single antenna can be used individually or in combination to provide diversity/non-diversity coverage with legacy 802.11a/b/g access points.

Aruba Indoor Antenna AP-ANT-13B Datasheet (.PDF)

Technical Specifications
Frequency/Gain	• 2.4 - 2.5 GHz / 3.8 dBi • 4.9 - 5.875 GHz / 5.8 dBi
Polarization & Element Type	Linear Vertical. Omni-directional patterns at all frequencies with increased gain in mid and upper 5 GHz bands
Beamwidth	• 2.4-2.5 GHz • E-Plane 50 degrees • H-Plane 360 degrees • 4.9-5.875 GHz • E-Plane 25 degrees • H-Plane 360 degrees
Maximum Input Power	2 watts Impedence - 50Ω VSWR <2.0:1
Dimensions	1.54” x 0.75” x 5.00” (3.9 x 1.9 x 12.7cm)
Operating Temperature	-40ºF to 158ºF (-40ºC to +70ºC)
Housing	PVC
Fly Cable Length/Connector	36” / RP-SMA

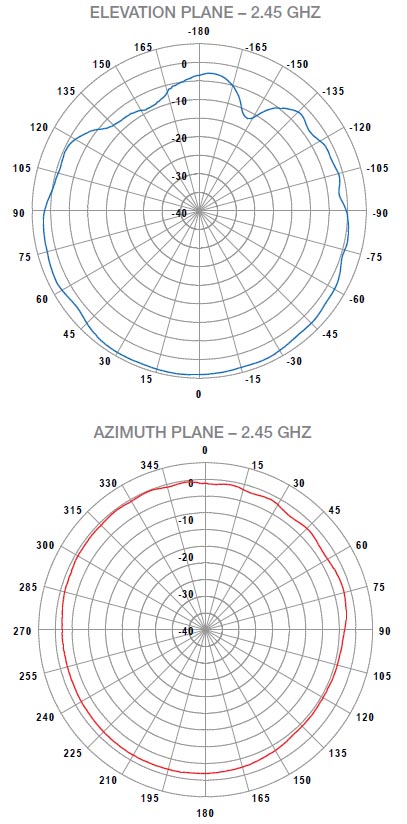

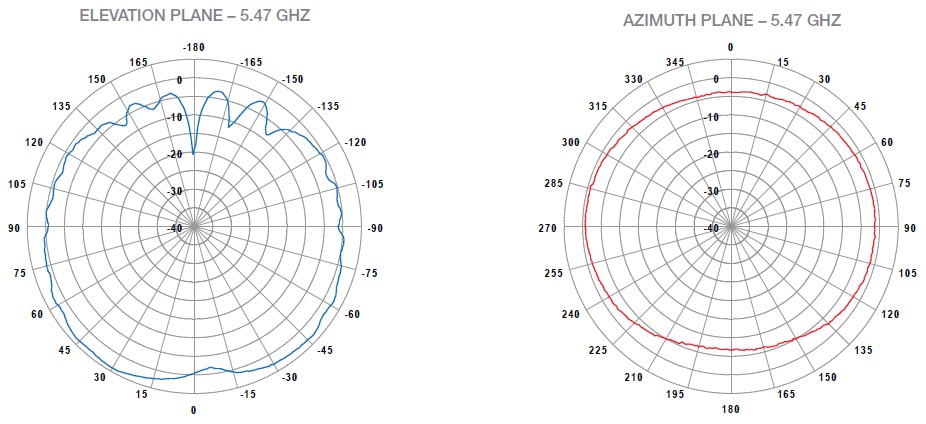

Antenna Pattern

AP-ANT-16 Indoor MIMO 2.4-2.5 GHZ and 4.9-5.9 GHz Ceiling Mount Antenna

With an articulating mount this antenna provides flexibility in deployment and direct connection to Aruba access points with an onboard RP-SMA connector. The AP-ANT-1B is the preferred choice for multi-purpose service deployment or wireless intrusion prevention (WIP).

Aruba Indoor Antenna AP-ANT-16 Datasheet (.PDF)

Technical Specifications
Frequency/Gain	• 2.4 - 2.5 GHz (3.9 dBi) • 4.9 - 5.9 GHz (4.7 dBi)
Polarization & Element Type	Vertically polarized omni-directional
Beamwidth	• E-Plane – 60º • H-Plane – 360º
Maximum Input Power	• 2 watts • Impedence - 50Ω • VSWR <2.0:1
Dimensions	12.13” x 3.62” x 0.86” (30.82 x 9.2 x 2.2cm)
Operating Temperature	-40ºF to 158ºF (-40ºC to +70ºC)
Housing	ASA
Fly Cable Length/Connector	36” / RP-SMA (3x)

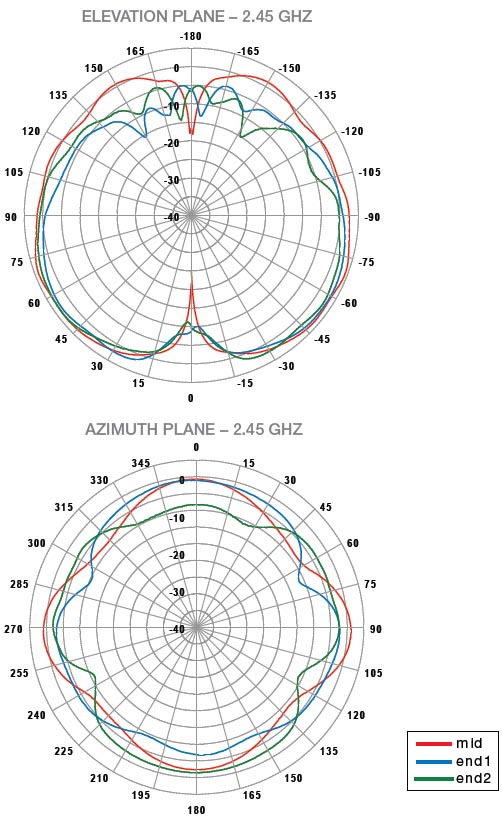

Antenna Pattern

AP-ANT-20 Indoor 2.4-GHz and 5-GHz Dual-Band Omni-Directional Direct-Mount Antenna

AP-ANT-20 is a compact, dual-band indoor antenna ideally designed for multifunction APs that require omnidirectional coverage for the 2.4-GHz and 5-GHz bands. It features an articulating mount for deployment flexibility and connects directly to Aruba APs via external RP-SMA antenna connectors. It is offered in two colors to match the colors of Aruba indoor APs.

Aruba Indoor Antenna AP-ANT-20 Datasheet (.PDF)

Technical Specifications
Frequency/Gain	• 2.400 - 2.500 GHz (2.0 dBi) • 4.900 – 5.875 GHz (2.0 dBi)
Polarization	Linear, vertical. Omnidirectional patterns at all frequencies
Beamwidth	• E-plane: 80 degrees • H-plane: 360 degrees
Impedance	50 ohms
Maximum Input Power	2 watts
VSWR (minimum performance)	< 2.0:1
Dimensions	79 x 35.3 x 10 with articulating mount at 90 degree angle 102 x 14.8 x 10 fully extended
Enclosure	POM/ABS
Fly Cable Length/Connector	Articulating mount with built-in RP-SMA
Operating Storage Temp	-10° C to +55° C (+14° F to +131° F)

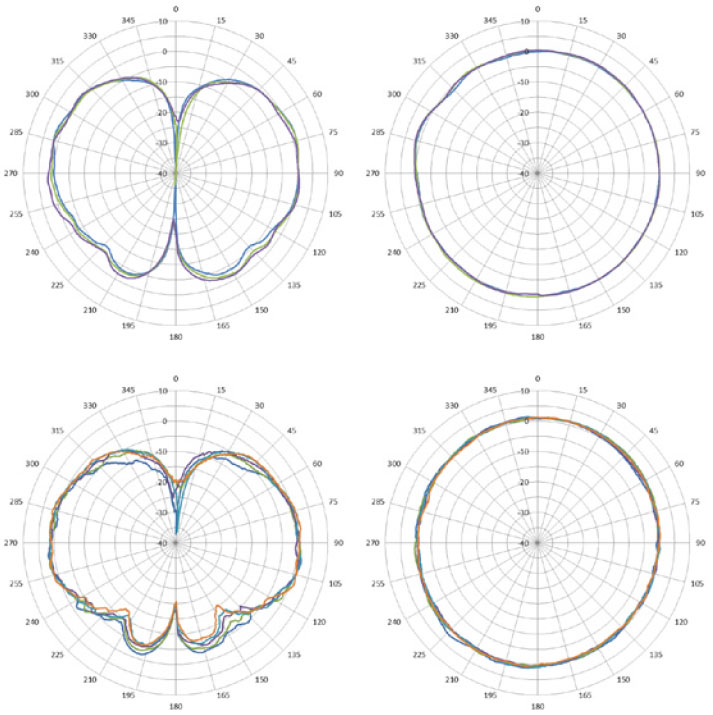

Antenna Pattern

AP-ANT-32 Indoor 2.4-GHz and 5-GHz MIMO Antenna

AP-ANT-32 is a kit of three small downtilt omni antennas. Intended for use with (I)AP-228 in industrial and stadium applications.

Aruba Indoor Antenna AP-ANT-32 Datasheet (.PDF)

Technical Specifications
Frequency/Gain	• 4.9-6.0 GHz/4 dBi • 2.4-2.5 GHz/2 dBi
Polarization	Vertical
Beamwidth	• Horizontal plane: 360° • Vertical plane: 45°
Impedance	50 ohms
Maximum Input Power	20 watts
VSWR (minimum performance)	2:1 max
Dimensions	44.2 x 19.6 (dia.) mm 1.75 x 0.77 (dia.) inches
Weight	30 g (0.065 lbs) per element, 3 total per kit
Operating Storage Temp	-40° C to +65° C

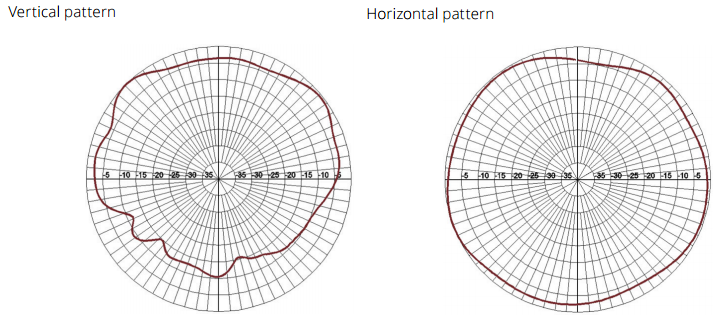

Antenna Pattern

AP-ANT-40 Indoor 4x4 MIMO Antenna

AP-ANT-40 is a dual band 4-element omni-directional antenna for use in Wi-Fi MIMO applications. Housed in a compact, low-profile and discrete plastic enclosure, the antenna can be mounted to a variety of ceilings. Each of the four MIMO antenna elements is connected to the Aruba Access Point via a low-loss, plenum rated coaxial pigtail.

The radiation patterns are uniform and symmetrical, providing high level signal density into defined coverage zones, and optimum coverage conditions for MIMO performance.

Aruba Indoor Antenna AP-ANT-40 Datasheet (.PDF)

Technical Specifications
Frequency/Gain	• 2.4 - 2.5 GHz (4 dBi) • 4.9 - 6 GHz (5 dBi)
Polarization	Linear, Vertical
Beamwidth	• H-Plane: omni-directional • E-Plane: approximately 100 degrees (40 degrees down-tilt)
Impedance	50 ohms
Maximum Input Power	10 watts
VSWR	< 2.0:1
Pigtail Cable	• Length: 750mm • Cable type: RG58, plenum rated • Connector: RP-SMA male (4x)
Dimensions	178 mm (diameter) x 32 mm (height)
Weight	Approximately 410 g
Housing Material	Radome: PC/ABS UL94-V0 (white)
Operating Storage Temp	-30° C to +70° C (-22° F to +158° F)

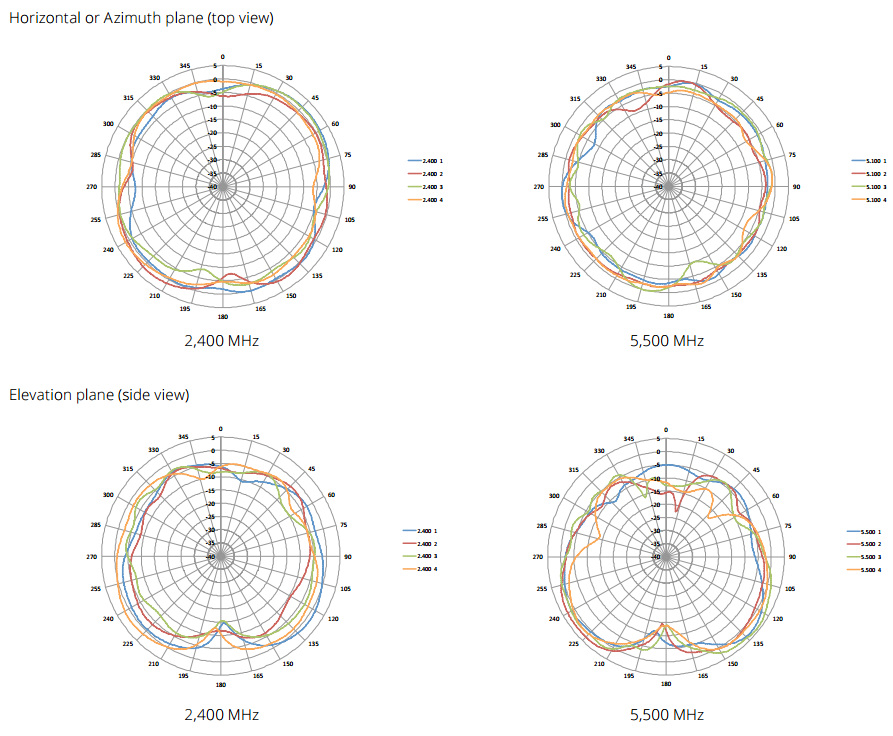

Antenna Pattern
