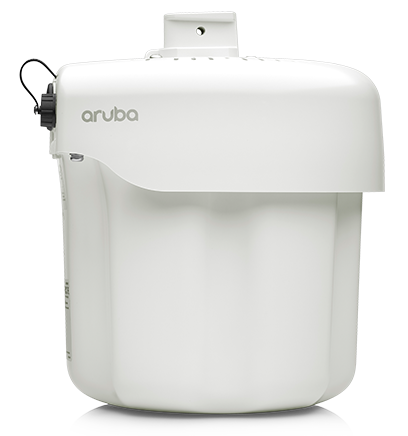

Aruba AP-377 Access Point
High performance 802.11ac Wave 2 for outdoor environments

Aruba AP-377 Access Point

Aruba Networks Products

Aruba Wireless Access Point

Aruba AP-377 (US) Outdoor 11ac AP
*Backorder

#JZ183A
Get a Quote!

Click here to jump to more pricing!

Overview:

Weatherproof and temperature hardened, Aruba 370 series access points deliver 802.11ac Wave 2 Gigabit Wi-Fi to outdoor and environmentally challenging locations. The 370 high-performance and high power series deliver maximum capacity and range. It delivers 4x4:4SS MU-MIMO capability, Aruba’s advanced ClientMatch and an integrated Bluetooth beacon to enable Aruba location services.

Purpose-built to survive in the harshest outdoor environments, 370 Series APs can withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection.

With a maximum concurrent data rate of 1,733 Mbps in the 5 GHz band and 300 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 2.0 Gbps), the Aruba 370 Series Access Points can quickly add required capacities to your existing or new wireless networks.

The high performance and high density 802.11ac the 370 Series supports 160 MHz channel bandwidth (VHT160), multi-user MIMO (MU-MIMO) and 4 spatial streams (4SS).

Proactive and deterministic, ClientMatch dynamically optimizes Wi-Fi client performance as users roam and RF conditions change. If a mobile device moves away from an AP or RF interference impedes performance, ClientMatch automatically steers it to a better AP.

With ClientMatch, clients load web pages faster, deliver video streams with improved quality and support high densities of mobile devices. An 802.11ac network without ClientMatch performs no different than an 802.11n WLAN.

The 370 Series also has an integrated Bluetooth Aruba Beacon that simplifies the remote management of a network of large-scale battery-powered Aruba beacons while also providing advanced location and way finding, and proximity- based push notification capabilities. It enables businesses to leverage mobility context to develop applications that can deliver an enhanced user experience and increases the value of the wireless network for organizations.

CHOOSE YOUR DEPLOYMENT AND OPERATING MODES

As unified APs, the Aruba 370 Series can be deployed with or without a controller and can be readily switched to accommodate changing network needs.

Controller mode: When managed by Aruba Mobility Controllers, Aruba 370 Series APs offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding or,
Controllerless (Instant) mode: In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up one Instant AP, configure it over the air, and plug in the other APs – Instant Network.

Other functional modes include:

Remote AP (RAP) mode for branch deployments
Air monitor (AM) for wireless IDS, rogue detection and containment
Spectrum analyzer (SA), dedicated or hybrid, for identifying sources of RF interference
Secure enterprise mesh
Hybrid AP serves Wi-Fi clients and provides wireless intrusion protection and spectrum analysis

For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, the Instant APs are factory-shipped to any site and configure themselves when powered up.

Benefits:

Dual Radio 802.11ac access point with Multi-User MIMO

Supports up to 1,733 Mbps in the 5 GHz band (with 4SS/VHT80 or 2SS/VHT160 clients) and up to 300 Mbps in the 2.4 GHz band (with 2SS/HT40 clients).

Built-in Bluetooth Low-Energy (BLE) radio

Enables location-based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time.

Advanced Cellular Coexistence (ACC)

Minimizes interference from 3G/4G cellular networks, distributed antenna systems, and commercial small cell/femtocell equipment.

Industrial design for harsh indoor and outdoor environments

Sealed connector interfaces to lock out dust and moisture

Quality of service for unified communications applications

Supports priority handling and policy enforcement for unified communication apps, including Skype for Business with encrypted videoconferencing, voice, chat and desktop sharing

Best-in-class RF Management

Integrated AirMatch technology manages the 2.4-GHz and 5-GHz radio bands and actively optimizes the RF environment including channel width, channel selection and transmit power

Spectrum analysis

Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4 GHz and 5 GHz radio bands to identify sources of RF interference from HT20 through VHT160 operation

Wireless Mesh

Wireless mesh connections are convenient where Ethernet drops are not available.

Intelligent app visibility and control

AppRF technology leverages deep packet inspection to classify and block, prioritize or limit bandwidth for 1,000’s of enterprise apps or groups of apps.

Aruba Secure Core

Device assurance: Use of Trusted Platform Module (TPM) for secure storage of credentials and keys as well as secure boot
Integrated wireless intrusion protection2 offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances
IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats
Encrypted IPsec VPN tunnels securely connect remote users to corporate network resources.

Specifications:

AP-374, AP-375 and AP-377 Specifications
Hardware Variants AP-374 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate) Four Nf connectors for external antenna operation 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios Two Nf connectors for external antenna operation at 2.4 GHz. AP-375 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate) Internal Omni Antennas 4.6 dBi 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios Internal Omni Antennas 4.0 dBi AP-377 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate) Internal 80°H x 80°V Directional Antennas 6.3 dBi 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios Internal 80°H x 80°V Directional Antennas 6.4 dBi Wi-Fi Radio Specifications AP type: Outdoor hardened, dual radio, 5 GHz 802.11ac 4x4 MIMO and 2.4 GHz 802.11n 2x2 MIMO Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1) 5 GHz: Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously 5 GHz: Four spatial stream Single User (SU) MIMO for up to 1,733 Mbps wireless data rate to individual 4x4 VHT80 or 2x2 VHT160 client devices 2.4 GHz: Two spatial stream Single User (SU) MIMO for up to 300 Mbps wireless data rate to individual 2x2 HT40 client devices Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio Supported frequency bands (country-specific restrictions apply): 2.400 to 2.4835 GHz 5.150 to 5.250 GHz3 5.250 to 5.350 GHz3 5.470 to 5.725 GHz4 5.725 to 5.850 GHz4 Available channels: Dependent on configured regulatory domain Dynamic frequency selection (DFS) optimizes the use of available RF spectrum Supported radio technologies: 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) Supported modulation types: 802.11b: BPSK, QPSK, CCK 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension) Transmit power: Configurable in increments of 0.5 dBm Maximum (conducted) transmit power (limited by local regulatory requirements): 2.4 GHz band: +22 dBm per chain, +25dBm aggregate (2x2) 5 GHz band: +22 dBm per chain, +28dBm aggregate (4x4) Note: Conducted transmit power levels exclude antenna gain. Maximum EIRP (limited by local regulatory requirements): 2.4 GHz band: 374: 25 + Antenna Gain 375: 29 dBm EIRP 377: 31.4 dBm EIRP 5 GHz band: 374: 28 + Antenna Gain + TxBF Gain 375: 35.6 dBm EIRP 377: 36 dBm EIRP Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks Maximum ratio combining (MRC) for improved receiver performance Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance Short guard interval for 20 MHz, 40 MHz, 80 MHz and 160 MHz channels Space-time block coding (STBC) for increased range and improved reception Low-density parity check (LDPC) for high-efficiency error correction and increased throughput Transmit beam-forming (TxBF) for increased signal reliability and range Supported data rates (Mbps): 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 (MCS0 to MCS15) 802.11n: 6.5 to 600 (MCS0 to MCS31) 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160) 802.11n high-throughput (HT) support: HT20/40 802.11ac very high throughput (VHT) support: VHT20/40/80/160 802.11n/ac packet aggregation: A-MPDU, A-MSDU	Other Interfaces One 10/100/1000BASE-T Ethernet network interfaces (RJ-45) Auto-sensing link speed and MDI/MDX 802.3az Energy Efficient Ethernet (EEE) One 1000BASE-X SFP Port Bluetooth Low Energy (BLE) radio Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity Visual indicator (multi-color LED): For system and radio status Reset button: Factory reset (during device power up) Micro USB console interface Kensington security slot Power Worst-case power consumption from the AP: 23W Power sources sold separately Power over Ethernet (PoE+): 802.3at-compliant AC Power: 100-240 Volt 50/60Hz AC Mounting AP-270-MNT-V1 AP-270-MNT-V2 AP-270-MNT-H1 AP-270-MNT-H2 Mechanical AP-374 Dimensions/weight (excluding mount): 23 cm (W) x 24 cm (D) x 19 cm (H) with aesthetic cover 9.0” (W) x 9.4” (D) x 7.5” (H) 2.7 kg/6 lbs 23 cm (W) x 24 cm (D) x 14 cm (H) without aesthetic cover 9.0” (W) x 9.4” (D) x 5.5” (H) 2.4 kg/5.3 lbs AP-375 Dimensions/weight (excluding mount): 23 cm (W) x 24 cm (D) x 27 cm (H) 9.0” (W) x 9.4” (D) x 10.6” (H) 2.4 kg/5.3 lbs AP-377 Dimensions/weight (excluding mount): 23 cm (W) x 22 cm (D) x 13 cm (H) 9.0” (W) x 8.7” (D) x 5.1” (H) 2.1 kg/4.6 lbs Environmental Operating: Temperature: -40° C to +65° C (-40° F to +149° F) Humidity: 5% to 95% non-condensing Storage and transportation: Temperature: -40° C to +70° C (-40° F to +158° F) Operating Altitude: 3,000 m Water and Dust: IP66/67 Salt Tolerance Tested to ASTM B117-07A Salt Spray 200hrs Wind Survival: Up to 165 Mph Shock and Vibration ETSI 300-19-2-4 Regulatory FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 60950 EN 60601-1-1, EN60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative. Regulatory Model Numbers AP-374: APEX0374 AP-375: APEX0375 AP-377: APEX0377 Certifications CB Scheme Safety, cTUVus CBUL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n, ac Wi-Fi CERTIFIED™ ac (with wave 2 features) Warranty Aruba limited lifetime warranty Minimum Software Versions ArubaOS & Aruba InstantOS 8.3.0.0

AP-374, AP-375 and AP-377 Specifications

Hardware Variants

AP-374
- 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)
  - Four Nf connectors for external antenna operation
- 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios
  - Two Nf connectors for external antenna operation at 2.4 GHz.
AP-375
- 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)
  - Internal Omni Antennas 4.6 dBi
- 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios
  - Internal Omni Antennas 4.0 dBi
AP-377
- 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)
  - Internal 80°H x 80°V Directional Antennas 6.3 dBi
- 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios
  - Internal 80°H x 80°V Directional Antennas 6.4 dBi

Wi-Fi Radio Specifications

AP type: Outdoor hardened, dual radio, 5 GHz 802.11ac 4x4 MIMO and 2.4 GHz 802.11n 2x2 MIMO
Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
5 GHz: Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously
5 GHz: Four spatial stream Single User (SU) MIMO for up to 1,733 Mbps wireless data rate to individual 4x4 VHT80 or 2x2 VHT160 client devices
2.4 GHz: Two spatial stream Single User (SU) MIMO for up to 300 Mbps wireless data rate to individual 2x2 HT40 client devices
Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply):
- 2.400 to 2.4835 GHz
- 5.150 to 5.250 GHz3
- 5.250 to 5.350 GHz3
- 5.470 to 5.725 GHz4
- 5.725 to 5.850 GHz4
Available channels: Dependent on configured regulatory domain
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
Transmit power: Configurable in increments of 0.5 dBm
Maximum (conducted) transmit power (limited by local regulatory requirements):
- 2.4 GHz band: +22 dBm per chain, +25dBm aggregate (2x2)
- 5 GHz band: +22 dBm per chain, +28dBm aggregate (4x4)
- Note: Conducted transmit power levels exclude antenna gain.
Maximum EIRP (limited by local regulatory requirements):
- 2.4 GHz band:
  - 374: 25 + Antenna Gain
  - 375: 29 dBm EIRP
  - 377: 31.4 dBm EIRP
- 5 GHz band:
  - 374: 28 + Antenna Gain + TxBF Gain
  - 375: 35.6 dBm EIRP
  - 377: 36 dBm EIRP
Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Short guard interval for 20 MHz, 40 MHz, 80 MHz and 160 MHz channels
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range
Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: 6.5 to 300 (MCS0 to MCS15)
- 802.11n: 6.5 to 600 (MCS0 to MCS31)
- 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160)
802.11n high-throughput (HT) support: HT20/40
802.11ac very high throughput (VHT) support: VHT20/40/80/160
802.11n/ac packet aggregation: A-MPDU, A-MSDU

Other Interfaces

One 10/100/1000BASE-T Ethernet network interfaces (RJ-45)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
One 1000BASE-X SFP Port
Bluetooth Low Energy (BLE) radio
- Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity
Visual indicator (multi-color LED): For system and radio status
Reset button: Factory reset (during device power up)
Micro USB console interface
Kensington security slot

Power

Worst-case power consumption from the AP: 23W
Power sources sold separately
Power over Ethernet (PoE+): 802.3at-compliant
AC Power: 100-240 Volt 50/60Hz AC

Mounting

AP-270-MNT-V1
AP-270-MNT-V2
AP-270-MNT-H1
AP-270-MNT-H2

Mechanical

AP-374 Dimensions/weight (excluding mount):
- 23 cm (W) x 24 cm (D) x 19 cm (H) with aesthetic cover
- 9.0” (W) x 9.4” (D) x 7.5” (H)
- 2.7 kg/6 lbs
- 23 cm (W) x 24 cm (D) x 14 cm (H) without aesthetic cover
- 9.0” (W) x 9.4” (D) x 5.5” (H)
- 2.4 kg/5.3 lbs
AP-375 Dimensions/weight (excluding mount):
- 23 cm (W) x 24 cm (D) x 27 cm (H)
- 9.0” (W) x 9.4” (D) x 10.6” (H)
- 2.4 kg/5.3 lbs
AP-377 Dimensions/weight (excluding mount):
- 23 cm (W) x 22 cm (D) x 13 cm (H)
- 9.0” (W) x 8.7” (D) x 5.1” (H)
- 2.1 kg/4.6 lbs

Environmental

Operating:
- Temperature: -40° C to +65° C (-40° F to +149° F)
- Humidity: 5% to 95% non-condensing
Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158° F)
Operating Altitude: 3,000 m
Water and Dust:
- IP66/67
Salt Tolerance
- Tested to ASTM B117-07A Salt Spray 200hrs
Wind Survival: Up to 165 Mph
Shock and Vibration ETSI 300-19-2-4

Regulatory

FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 60950
EN 60601-1-1, EN60601-1-2

For more country-specific regulatory information and approvals, please see your Aruba representative.

Regulatory Model Numbers

AP-374: APEX0374
AP-375: APEX0375
AP-377: APEX0377

Certifications

CB Scheme Safety, cTUVus
CBUL2043 plenum rating
Wi-Fi Alliance certified 802.11a/b/g/n, ac
Wi-Fi CERTIFIED™ ac (with wave 2 features)

Warranty

Aruba limited lifetime warranty

Minimum Software Versions

ArubaOS & Aruba InstantOS 8.3.0.0

Wireless Radio Specifications:

RF Performance Table
	Maximum transmit power (dBm) per transmit chain	Receiver sensitivity (dBm) per receive chain
802.11b 2.4 GHz
1 Mbps	22.0	-95.0
2 Mbps	22.0	-93.0
5.5 Mbps	22.0	-90.0
11 Mbps	22.0	-88.0
802.11g 2.4 GHz and 802.11a 5 GHz 2.4 GHz and 802.11a 5 GHz
6 Mbps	22.0	-93.0
54 Mbps	19.0	-75.0
802.11n HT20 2.4 GHz and 5 GHz
MCS0/8	22.0	-93.0
MCS7/15	18.0	-71.0
802.11n HT40 2.4 GHz and 5 GHz
MCS0/8	22.0	-90.0
MCS7/15	18.0	-68.0
802.11ac VHT20 5 GHz
MCS0	22.0	-93.0
MCS9	16.0	-68.0
802.11ac VHT40 5 GHz
MCS0	22.0	-90.0
MCS9	15.0	-63.0
802.11ac VHT80 5 GHz
MCS0	22.0	-87.0
MCS9	15.0	-61.0
802.11ac VHT160 5 GHz
MCS0	22.0	-86.0
MCS9	15.0	-57.0

Maximum capability of the hardware provided (excluding antenna gain). Maximum transmit power is limited by local regulatory settings.

Documentation:

Aruba AP-370 Series Access Points Datasheet (.PDF)
