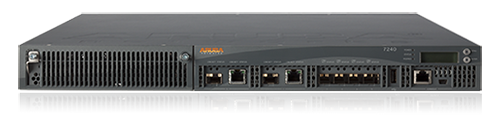

Aruba 7200 Series Mobility Controller
The next-generation networking platform

Overview:

The Aruba 7200 series Mobility Controller is the next-generation networking platform, optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi.

With a new central processor that employs eight cores with four threads each, it’s like having a total of 32 virtual CPUs. As a result, the 7200 series supports 32,000 mobile devices and performs stateful firewall policy enforcement at 40 Gbps – plenty of capacity and speed for BYOD and 802.11ac devices.

New levels of visibility are provided by Aruba’s unique AppRF technology, which runs on 7200 series Mobility Controllers. With AppRF, IT can see applications by user, including top web-based applications like Facebook and Box.

The 7200 series also manages authentication, encryption, VPN connections, IPv4 and IPv6 Layer 3 services, the Aruba Policy Enforcement Firewall™, Aruba Adaptive Radio Management™, and Aruba RFProtect™ spectrum analysis and wireless intrusion protection.

Clustering and centralized management enable the deployment of large networks with hundreds of Mobility Controllers with minimal staff. A master Mobility Controller can manage local Mobility Controllers, while Aruba AirWave™ network management provides enterprise-wide clarity and control through real-time monitoring, historical reporting and troubleshooting.

Architected for High Availability

The 7200 series includes a number of features that make it ideal for deployment in customer locations that require maximum availability:

• Redundant power supplies: The 7200 series supports dual, fieldreplaceable redundant power supplies to maintain uninterrupted network operations.
• Hot-swappable fan tray with multiple fans: The 7200 series includes a field-replaceable fan tray with multiple fans, providing sufficient cooling and rapid time to repair.
• Solid state drives for maximum reliability and uptime.
• Two dual-media ports: 1000BASE-X or 10/100/1000BASE-T connections for high availability.

Specifications:

Specifications
Interfaces and indicators	Four 10GBASE-X (SFP+) ports Two dual-media ports (1000BASE-X or 10/100/1000BASE-T) One USB 2.0 Console (RS-232) RJ-45 or mini-USB LINK/ACT and status LEDs Management/status LEDs LCD panel and navigation buttons Expansion slot (reserved for future use)
Dimensions	(H) 4.4 cm x (W) 44.5 cm x (D) 44.5 cm (1.75” x 17.5” x 17.5”) Weight (with one AC power supply installed) 7.45 kg (16.43 lbs)
Environmental	Operating temperature range: 0° C to 40° C Operating humidity: 5% to 95% non-condensing Storage temperature range: -40° C to 70° C Storage humidity: 5% to 95%, non-condensing Operating altitude: 10,000 feet Acoustic noise2 (with AC power supply): -- 7210: 46.9 dBA -- 7220: 46.9 dBA -- 7240: 54.7 dBA
Power Supply Specifications	350-watt AC power supply -- C input voltage: 100 VAC to 240 VAC -- AC input current: 5-2.5A -- AC input frequency: 50-60 Hz -- Weight: 2.8 lbs (1.3 kg) Maximum power consumption -- 7210: 110 watts -- 7220: 125 watts -- 7240: 165 watts
Regulatory and Safety Compliance	• FCC Part 15 Class A CE Industry Canada Class A VCCI Class A (Japan) EN 55022 Class A (CISPR 22 Class A), EN 61000-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4- 6, EN 61000-4-8, EN 61000-4-11, EN 55024, AS/NZS 3548 UL 60950, EN60950 CAN/CSA 22.2 #60950 CE mark, cTUVus, CB, C-tick, Anatel, NOM, MIC
Warranty	Hardware: 1 year parts/labor* Software: 90 days* * Extended with support contract

²Sound power per ETSI 300 753 in accordance with ISO 7779

Performance and Capacity:

Features	7210	7220	7240
Maximum APs (licenses)	512	1,024	2,048
Maximum RAPs	512	1,024	2,048
Maximum concurrent devices	16,384	24,576	32,768
VLANs	4,094	4,094	4,094
Concurrent GRE Tunnels (System BSSIDs)	8,192	16,384	32,768
Concurrent Tunneled Ports	8,192	12,288	16,384
Concurrent IPSec Sessions	16,384	24,576	32,768
Concurrent SSL Fallback Sessions	8,192	8,192	8,192
Active Firewall Sessions (Concurrent sessions)	2,015,291	2,015,291	2,015,291
Wired Throughput (large packets)	20 Gbps	40 Gbps	40 Gbps
Concurrent IPsec sessions	16,384	24,576	32,768
Mobility Access Switch Tunneled Node ports	8,192	12,288	16,384
Encrypted throughput (3DES, AES-CBC)	10 Gbps	30 Gbps	40 Gbps
Encrypted throughput (AES-CCM)	6 Gbps	20 Gbps	40 Gbps
Form factor/footprint	1 RU	1 RU	1 RU
Auto-negotiating 10/100/1000BASE-T ports	2 (combo)	2 (combo)	2 (combo)
Gigabit Ethernet ports (GBIC or SFP)	2 (combo	2 (combo	2 (combo
10 Gigabit Ethernet ports (XFP)	4 SFP+	4 SFP+	4 SFP+
Out-of-band management port	Yes (mUSB/RJ-45)	Yes (mUSB/RJ-45)	Yes (mUSB/RJ-45)
Power-over-Ethernet ports	No	No	No
Power-over-Ethernet	No	No	No
Redundant power	Yes	Yes	Yes
Maximum power consumption	110 watts	125 watts	165 watts
USB ports	No	No	No
Legacy 802.11 standards support	802.11 a/b/g/n
Authentication types	WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, 802.1X, MAC address, captive portal
Management capabilities	SNMP, web, CLI using SSH, telnet and console port
Hardware warranty	One year
Software warranty	90 days
