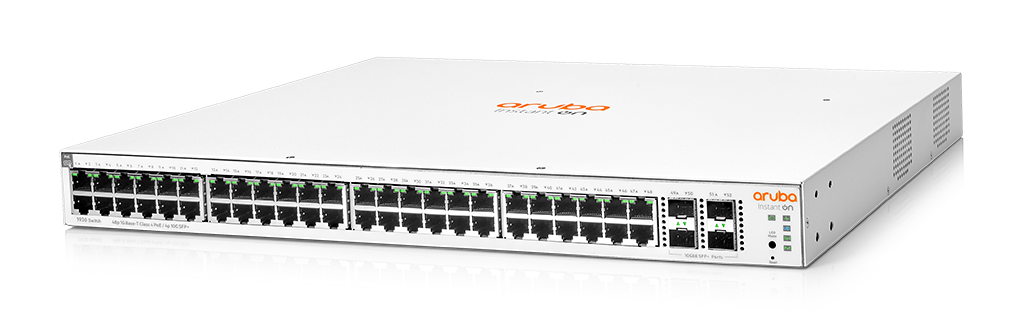

Aruba Instant On 1930 48G Class 4 PoE 4SFP/SFP+ 370W Switch (JL686A#ABA)
High performance, smart-managed switches designed with small businesses in mind


Aruba 1930 Series JL686A#ABA

Aruba Networks Products
Aruba Instant On Switches
USA: FREE Ground ShippingAruba Instant On 1930 48G Class 4 PoE 4SFP/SFP+ 370W Switch
Top Value Promo: Special discount on select Aruba's products
#JL686A#ABA
List Price: $879.00
Add to Cart for our Special Price

Overview:


Aruba instant on family

Aruba Instant On 1930 Switch Series

Whether you own a cafe, a design firm or a tech startup, a reliable and secure network plays a critical role in the success of your business. And you need a network solution that gives you peace of mind, allowing you to focus on growing your business instead of managing problems with your network.

The Aruba Instant On 1930 switches features advanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses that are easy-to-deploy and affordable. They’re made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance.

Using either the Instant On mobile app or the cloud-based web portal, you can quickly set up, monitor and manage the 1930 switch series from anywhere at any time. What’s more, up to 30 W PoE power delivery is available out-of-the-box for your class 4 PoE devices, like access points, surveillance cameras and VoIP phones, all easily managed from the same platform.

1930 Switch Series Simplicity

Simplicity at its best

Plug-and-play switches that work together with Instant On APs right out of the box

Mobile app to easily setup, monitor and manage your network


1930 Switch Series Security

Security you can count on

Protect your network from unauthorized access with IEEE 802.1X and VLANs

Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks

1930 Switch Series Covered

We’ve got you covered

No extra licensing or subscription fees

Industry-leading limited lifetime warranty and support



instant-on-portfolio

Click a Feature to Learn More!


Why Instant On?:


EASY SET UP AND MANAGEMENT

The Aruba Instant On mobile app allows you to set up, manage, and monitor Instant On switches and access points directly from your phone. Within the app, you get guided step-by-step instructions to install Instant On devices to get your network up and running quickly – no technical expertise required. And cloud-based access allows you to access the network from anywhere, at any time.

NON-INTRUSIVE, AESTHETIC DESIGN

Aruba Instant On switches are designed to complement the sleek and clean look of the Instant On access points, and to blend discreetly into your site’s environment. The 8-port models, as well as the 24- and 48-port non PoE+ models, are fan-less, making them ideal for quiet office deployments.

OPTIMIZED USER EXPERIENCE

The Aruba Instant On mobile app provides common workflows for Instant On switches and access points making it easier to configure, monitor and manage your network remotely without the need for additional hardware like cloud keys or VPN. You can also update firmware on your Instant On devices directly from the cloud whenever you want, from wherever you are.


MULTI-SITE MANAGEMENT

The cloud-hosted web interface and mobile app make it easy to manage multiple sites, multiple networks, distributed deployments and multi-tenant deployments. Each site is logically separated and has its own configuration, statistics, guest portal, and admin read/write privileges.

BUILT-IN SECURITY

Built-in security features protect your network from external threats by blocking malware attacks and keeping unauthorized users off the network. Network traffic can be filtered and access restricted based on MAC and IP address.

NO HIDDEN FEES

All features are included in the price of the hardware – there are no recurring subscription or licensing fees. Expert-level support and industry leading limited lifetime warranty are also included, along with chat support for the life of the product.

Specifications:




Specifications

Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch (JL684A)

Aruba Instant On 1930 48G 4SFP/

SFP+ Switch (JL685A)

Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch (JL686A)

I/O ports and slots



24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T);

Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 SFP+ 1/10GbE ports

48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-

T/100BASE-TX: half or full; 1000BASE-T: full only

4 SFP+ 1/10GbE ports

48 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T);

Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 SFP+ 1/10GbE ports

Physical Characteristics

Dimensions

17.42(w) x 10.42(d) x

1.73(h) in

(44.25 x 26.47 x 4.39 cm) (1U height)

17.42(w) x 11.12(d) x

1.73(h) in

(44.25 x 28.24 x 4.39 cm) (1U height)

17.42(w) x 12.7(d) x

1.73(h) in

(44.25 x 32.26 x 4.39 cm) (1U height)

Weight

8.10 lb (3.67kg)

6.91 lb (3.13 kg)

9.97 lb (4.52 kg)

Processor and memory



ARM Cortex-A9 @ 800 MHz, 512 MB

SDRAM, 256 MB flash; packet buffer:

1.5 MB

ARM Cortex-A9 @ 800 MHz, 512 MB

SDRAM, 256 MB flash; packet buffer:

1.5 MB

ARM Cortex-A9 @ 800 MHz, 512 MB

SDRAM, 256 MB flash; packet buffer:

1.5 MB

Performance

100 Mb Latency

< 4.7 uSec

< 4.5 uSec

< 4.5 uSec

packet size

64B

64B

64B

1000 Mb Latency

<2.4 uSec

< 2.2 uSec

< 2.2 uSec

packet size

64B

64B

64B

10000 Mb Latency

< 1.3 uSec

< 1.2 uSec

< 1.2 uSec

packet size

64B

64B

64B

Throughput (Mpps)

95.23 Mpps

130.95 Mpps

130.95 Mpps

packet size

64B

64B

64B

switching capacity

128 Gbps

176 Gbps

176 Gbps

Routing Table size (# of static entries)

32 static entries

32 static entries

32 entries

MAC Address table size (# of entries)

16,000 entries

16,000 entries

16,000 entries

Reliability MTBF (years)

71

114

57

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

32°F to 104°F (0°C to 40°C)

32°F to 104°F (0°C to 40°C)

Operating relative humidity

15% to 95% @ 104°F (40°C)

15% to 95% @ 104°F (40°C)

15% to 95% @ 104°F (40°C)

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

-40°F to 158°F (-40°C to 70°C)

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

15% to 95% @ 140°F (60°C)

15% to 95% @ 140°F (60°C)

15% to 95% @ 140°F (60°C)

Altitude

up to 10,000 ft (3 km)

up to 10,000 ft (3 km)

up to 10,000 ft (3 km)

Acoustic

Pressure: 32.2 dBA Power: 58.5 dB

Power: 0 dB no fan

Pressure: 40.6 Power: 63.2 dB





Specifications

Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch (JL684A)

Aruba Instant On 1930 48G 4SFP/

SFP+ Switch (JL685A)

Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch (JL686A)

Electrical Characteristics

Frequency

50/60 Hz

50/60 Hz

50/60 Hz

AC voltage

100 - 127 / 200 - 240 VAC

100 - 127 / 200 - 240 VAC

100 - 127 / 200 - 240 VAC

Current

4.8/2.4 A

.8/.5 A

5/2.5 A

Maximum power rating

439.0 W

36.9 W

460.0 W

Idle power

20.9 W

16.8 W

34.5 W

PoE power

370 W Class 4 PoE



370 W Class 4 PoE

Power supply

Internal power supply

Internal power supply

Internal power supply

Safety









UL 60950-1; IEC 60950-1;

EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1

UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2;

EN 62368-1:2014

UL 60950-1; IEC 60950-1;

EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1

UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2;

EN 62368-1:2014

UL 60950-1; IEC 60950-1;

EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1

UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2;

EN 62368-1:2014

Emissions









VCCI-CISPR 32, Class A;

CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47

Part 15, Class A;

EN 55032: 2015 +AC:2016/CISPR-32,

Class A

VCCI-CISPR 32, Class A;

CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47

Part 15, Class A;

EN 55032: 2015 +AC:2016/CISPR-32,

Class A

VCCI-CISPR 32, Class A;

CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47

Part 15, Class A;

EN 55032: 2015 +AC:2016/CISPR-32,

Class A

Immunity

Generic

CISPR 24 / CISPR 35

CISPR 24 / CISPR 35

CISPR 24 / CISPR 35

EN

EN 55024:2010 / EN 55035:2017

EN 55024:2010 / EN 55035:2017

EN 55024:2010 / EN 55035:2017

ESD

IEC 61000-4-2

IEC 61000-4-2

IEC 61000-4-2

Radiated

IEC 61000-4-3

IEC 61000-4-3

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

IEC 61000-4-4

IEC 61000-4-4

Surge

IEC 61000-4-5

IEC 61000-4-5

IEC 61000-4-5

Conducted

IEC 61000-4-6

IEC 61000-4-6

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

IEC 61000-4-8

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

IEC 61000-4-11

IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

EN 61000-3-2, IEC 61000-3-2

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

EN 61000-3-3, IEC 61000-3-3

EN 61000-3-3, IEC 61000-3-3

Device Management



Aruba Instant On Portal; Web browser; SNMP Manager

Aruba Instant On Portal; Web browser; SNMP Manager

Aruba Instant On Portal; Web browser; SNMP Manager

Documentation:

Aruba 1930 Series Datasheet (.PDF)
