Aruba AirMesh MSR4000 Outdoor Wireless Mesh Router
Delivers High-Performance Wireless Mesh Routing

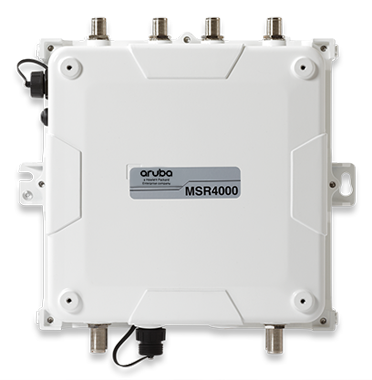

Aruba AirMesh MSR4000 Outdoor Wireless Mesh Router

Sorry, this product is no longer available, Supports available below. Please contact us for a replacement solution.

Overview:

The Aruba AirMesh MSR4000 delivers high-performance wireless mesh routing with the high capacity of the wired enterprise network infrastructure to outdoor environments.

Ruggedized and hardened to withstand extreme environmental conditions, the MSR4000 is ideal for deployment in metropolitan and industrial areas, oilfields, mines, and shipping ports.

A multi-radio, multi-frequency architecture and adaptive Layer 3 routing using the Aruba MeshOS operating system make the MSR4000 unique. Together, they provide unparalleled capacity, reliability, low latency and seamless handoffs for voice, HD-quality video and other real-time applications across long-distance outdoor wireless mesh networks.

Features:

Flexible, High-capacity Architecture

The MSR4000 consists of four independent 802.11a/b/g/n radios for flexible outdoor wireless mesh deployments using the 2.4-GHz, 5-GHz and 4.9-GHz band. Each radio is capable of providing a maximum aggregate transmit power of 25 dBm and a data rate of up to 300 Mbps.

Each radio may be configured to operate as a Wi-Fi access point (AP) or as a point-to-point, point-to-multipoint or full mesh backhaul. A quad-radio architecture separates client access and mesh backbone data while optimizing radio resources for both types of traffic to ensure high throughput and low latency.

Intelligent Wireless Mesh Routing

Integrated with Aruba MeshOS, Adaptive Wireless Routing (AWR) technology automatically optimizes traffic routes between wireless mesh routers and creates a truly adaptive mesh infrastructure.

With AWR, the mesh infrastructure adjusts dynamically to traffic levels and RF signal strength to ensure high availability and optimal performance across multiple network hops.

Aruba’s MobileMatrix, another key MeshOS Layer 3 technology, allows Wi-Fi clients to move between wireless mesh routers in less than 50 milliseconds, maintaining a seamless connection for latency-sensitive applications, such as video and voice.

HD-quality Video

For HD-quality video from mobile and fixed surveillance cameras, monitors and recording systems, the Active Video Transport (AVT) technology in MeshOS provides traffic management and load balancing across the mesh.

AVT uses deep packet inspection, MAC protocol optimization, in-network retransmission protocol and adaptive video jitter removal to deliver enhanced video at up to 30 frames per second.

Reduced Capital and Operating Costs

In addition to reducing capital and operating expenses by simplifying deployment, the MSR4000 eliminates the high cost of installing copper or fiber-optic cabling, as well as monthly fees for leased lines, digital subscriber line (DSL) and metro Ethernet services.

Specifications:

MSR4000 Specifications
Application Four-radio outdoor wireless mesh router designed for high-performance, latency-sensitive applications Network Management Managed via CLI, Web GUI, MeshConfig or AirWave Operating Mode Each radio may be configured to operate in the following modes: 802.11a/b/g/n access point for client access 802.11a/b/g/n mesh router for backhaul Radios Four multifunction radios capable of 2.4-GHz, 5-GHz or 4.9-GHZ operation Radios implement 2x2 MIMO with two spatial streams, providing up to 300 Mbps data rate per radio Dual receiver chain maximal ratio combining (MRC) for improved receiver performance Wireless Radio Specifications AP type: outdoor, four radio, dual band plus 4.9-GHz public safety band Supported frequency bands (country-specific restrictions apply): 2.4000 to 2.4835 GHz 4.900 to 5.100 GHz 5.150 to 5.250 GHz 5.250 to 5.350 GHz 5.470 to 5.725 GHz 5.725 to 5.850 GHz Maximum aggregate transmit power per radio: Up to 25 dBm Available channels: Dependent on configured regulatory domain Maximum transmit power: 25 dBm (325 mW) limited by local regulatory requirements Supported radio technologies: 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n: Orthogonal frequency division multiplexing (OFDM) 802.11n: 2x2 MIMO with two spatial streams Supported modulation types: 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM Association Rates 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: MCS0 - MCS15 (6.5 Mbps to 300 Mbps) 802.11n high-throughput (HT) support: HT 20/40 802.11n packet aggregation: A-MPDU, A-MSDU Power Power 100~240 VAC 50/60 Hz (MSR4000 AC models) High power PoE (60 watts) input required (MSR4000 PoE powered models) Power consumption: 36 watts max (excludes power consumed by any PoE device connected to and powered by the MSR4000 AC versions) Antennas Eight N-type (female) interfaces for external antenna support Feeder cable may be used for external antenna deployments Aruba Meshos Aruba MeshOS is a feature-rich operating system that is used across all MSR wireless mesh routers. Routing Features Adaptive Wireless Routing (AWR) Layer 3 optimal route selection Fast convergence and failover Multiple concurrent gateways OSPF enables integration with existing routing topologies Networking NAT/PAT DHCP server, relay, client 4,000 VLANs Support for HTTP, HTTPS, SSH, Telnet, SMNP, NTP and ICMP Security End-to-end WPA/WPA2, TKIP (128 bit), PSK, AES (128 bit) Authentication: 802.1X (RADIUS), EAP methods MAC and IP address filtering Access Control List (ACL) Digital certificates Traffic Management Wi-Fi Multimedia (WMM), 802.11e IEEE 802.1p prioritization DSCP/DiffServ Bandwidth control RF Management Automatic channel selection RF interference detection and avoidance 16 BSSIDs Adaptive baud rate control	Mounting Mounting kit: Mast mounting Wall mounting Solar shield included Mechanical Dimensions: Unit: 325mm x 290mm x 135mm (13” x 11.5” x 5”) Shipping box: 415mm x 352mm x 428mm (16.3” x 13.9” x 16.9”) Weight (MSR4KP): Unit: 5.5kg (12.1lb) Shipping box: 11.75kg (25.9lb) Weight (MSR4KAC): Unit: 6.5kg (14.3lb) Shipping box: 12.75kg (28.1lb) Environmental Operating: Temperature: -30º C to 60º C (-22º F to 140º F) for PoE powered model; -40º C to 55º C (-40º F to 131º F) for AC powered model Storage and transportation temperature range: -30º C to 70º C (-22º F to 158º F) Weather rating: IP66 Wind survivability: Up to 165 mph Shock and vibration: ETSI 300-19-2-4 spec T41.E class 4M3 Transportation: ISTA 2A Regulatory Regulatory Model Numbers MSR4000 PoE Powered: MSR4K43N0 MSR4000 AC Powered: MSR4K43N3 FCC/Industry of Canada CE Marked R&TT E Directive 1995/5/EC Low Voltage Directive 72/23/EEC EN 300 328 EN 301 489 EN 301 893 UL /IEC/EN 60950 CB Scheme Safety, cTU Vus Japan MIC/VCCI Korea KCC Brazil ANATEL Mexico NOM/COFETEL China SRRC/CCC IEC 60529 IP66, NEMA 4X AS/NZS 4260, 4771, 3548 Certifications Wi-Fi certified: 802.11a/b/g/n Advanced Features Virtual Private LAN over Mesh (VPLN) provides native Layer 2 over Layer 3 interface to external networks Active Video Transport (AVT) technology performs deep packet inspection, adaptive jitter removal and corrects transmission packet loss MobileMatrix technology allows users to roam between mesh routers while maintaining their application sessions Interfaces One 10/100/1000BASE-T Ethernet interfaces (RJ45) 802.3af PoE-PSE power output on Ethernet interface (on AC models only) USB console interface Four N-type antenna connectors Warranty 1 year parts/labor

MSR4000 Specifications

Application

Four-radio outdoor wireless mesh router designed for high-performance, latency-sensitive applications

Network Management

Managed via CLI, Web GUI, MeshConfig or AirWave

Operating Mode

Each radio may be configured to operate in the following modes:
- 802.11a/b/g/n access point for client access
- 802.11a/b/g/n mesh router for backhaul

Radios

Four multifunction radios capable of 2.4-GHz, 5-GHz or 4.9-GHZ operation
Radios implement 2x2 MIMO with two spatial streams, providing up to 300 Mbps data rate per radio
Dual receiver chain maximal ratio combining (MRC) for improved receiver performance

Wireless Radio Specifications

AP type: outdoor, four radio, dual band plus 4.9-GHz public safety band
Supported frequency bands (country-specific restrictions apply):
- 2.4000 to 2.4835 GHz
- 4.900 to 5.100 GHz
- 5.150 to 5.250 GHz
- 5.250 to 5.350 GHz
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
Maximum aggregate transmit power per radio: Up to 25 dBm
Available channels: Dependent on configured regulatory domain
Maximum transmit power: 25 dBm (325 mW) limited by local regulatory requirements
Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n: Orthogonal frequency division multiplexing (OFDM)
- 802.11n: 2x2 MIMO with two spatial streams
Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
Association Rates
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: MCS0 - MCS15 (6.5 Mbps to 300 Mbps)
- 802.11n high-throughput (HT) support: HT 20/40
- 802.11n packet aggregation: A-MPDU, A-MSDU

Power

Power
- 100~240 VAC 50/60 Hz (MSR4000 AC models)
- High power PoE (60 watts) input required (MSR4000 PoE powered models)
Power consumption: 36 watts max (excludes power consumed by any PoE device connected to and powered by the MSR4000 AC versions)

Antennas

Eight N-type (female) interfaces for external antenna support
Feeder cable may be used for external antenna deployments

Aruba Meshos

Aruba MeshOS is a feature-rich operating system that is used across all MSR wireless mesh routers.
Routing Features
- Adaptive Wireless Routing (AWR)
  - Layer 3 optimal route selection
  - Fast convergence and failover
  - Multiple concurrent gateways
- OSPF enables integration with existing routing topologies
Networking
- NAT/PAT
- DHCP server, relay, client
- 4,000 VLANs
- Support for HTTP, HTTPS, SSH, Telnet, SMNP, NTP and ICMP
Security
- End-to-end WPA/WPA2, TKIP (128 bit), PSK, AES (128 bit)
- Authentication: 802.1X (RADIUS), EAP methods
- MAC and IP address filtering
- Access Control List (ACL)
- Digital certificates
Traffic Management
- Wi-Fi Multimedia (WMM), 802.11e
- IEEE 802.1p prioritization
- DSCP/DiffServ
- Bandwidth control
RF Management
- Automatic channel selection
- RF interference detection and avoidance
- 16 BSSIDs
- Adaptive baud rate control

Mounting

Mounting kit:
- Mast mounting
- Wall mounting
- Solar shield included

Mechanical

Dimensions:
- Unit: 325mm x 290mm x 135mm (13” x 11.5” x 5”)
- Shipping box: 415mm x 352mm x 428mm (16.3” x 13.9” x 16.9”)
Weight (MSR4KP):
- Unit: 5.5kg (12.1lb)
- Shipping box: 11.75kg (25.9lb)
Weight (MSR4KAC):
- Unit: 6.5kg (14.3lb)
- Shipping box: 12.75kg (28.1lb)

Environmental

Operating:
- Temperature: -30º C to 60º C (-22º F to 140º F) for PoE powered model; -40º C to 55º C (-40º F to 131º F) for AC powered model
Storage and transportation temperature range: -30º C to 70º C (-22º F to 158º F)
Weather rating: IP66
Wind survivability: Up to 165 mph
Shock and vibration: ETSI 300-19-2-4 spec T41.E class 4M3
Transportation: ISTA 2A

Regulatory

Regulatory Model Numbers
- MSR4000 PoE Powered: MSR4K43N0
- MSR4000 AC Powered: MSR4K43N3
FCC/Industry of Canada
CE Marked
R&TT E Directive 1995/5/EC
Low Voltage Directive 72/23/EEC
EN 300 328
EN 301 489
EN 301 893
UL /IEC/EN 60950
CB Scheme Safety, cTU Vus
Japan MIC/VCCI
Korea KCC
Brazil ANATEL
Mexico NOM/COFETEL
China SRRC/CCC
IEC 60529 IP66, NEMA 4X
AS/NZS 4260, 4771, 3548

Certifications

Wi-Fi certified: 802.11a/b/g/n

Advanced Features

Virtual Private LAN over Mesh (VPLN) provides native Layer 2 over Layer 3 interface to external networks
Active Video Transport (AVT) technology performs deep packet inspection, adaptive jitter removal and corrects transmission packet loss
MobileMatrix technology allows users to roam between mesh routers while maintaining their application sessions

Interfaces

One 10/100/1000BASE-T Ethernet interfaces (RJ45)
802.3af PoE-PSE power output on Ethernet interface (on AC models only)
USB console interface
Four N-type antenna connectors

Warranty

1 year parts/labor

Aruba Mesh Router Comparison:

	MSR4000	MSR2000	MST200
Form Factor
Applications
Description	The MSR4000 is a high performance 802.11N enabled mesh router delivering performance similar to wireline at up to 300 Mbps per radio. The MSR4000 features four 2x2 MIMO dualband 2.4/5 GHz radios. The MSR4000 is built to provide years of trouble-free operation in a variety of applications. The MSR4000 leverages Aruba's Adaptive Wireless Routing (AWR) technology, which automatically optimizes traffic routes between multiple wireless mesh routers.	The MSR2000 is a high performance 802.11N enabled mesh router delivering performance similar to wireline at up to 300 Mbps per radios. The MSR2000 features two 2x2 MIMO dualband 2.4/5 GHz radios. The MSR2000 is built to provide years of trouble-free operation in a variety of applications. The MSR2000 leverages Aruba's Adaptive Wireless Routing (AWR) technology, which automatically optimizes traffic routes between multiple wireless mesh routers.	The MST200 is a high performance 802.11N enabled mesh router delivering performance similar to wireline at up to 300 Mbps per radio. The MST200 features a single 5-GHz 2x2 MIMO radio with a built in antenna. The MST200 is built to provide years of trouble-free operation in a variety of applications. The MST200 leverages Aruba's Adaptive Wireless Routing (AWR) technology, which automatically optimizes traffic routes between multiple wireless mesh routers.
WiFi Access	Yes	Yes	Yes
Mesh	Yes	Yes	No
Point-to-Point	Yes	Yes	Yes
Point-to-Multipoint	Yes	Yes	Yes
Portal	Yes	Yes	Yes
Number of Radios	Quad Radio	Dual Radio	Single Radio
Operating Frequencies	2.4, 5, 4.9GHz	2.4, 5, 4.9GHz	5 GHz
DFS Support	Yes (EU and Japan)	Yes (EU and Japan)	Yes (EU and Japan)
RF Management	RF interference detection and avoidance
Antennas	Eight N-type female arranged in four pairs to support 802.11N 2x2 MIMO operation	Four N-type female arranged in two pairs to support 802.11N 2x2 MIMO operation	Integrated directional antenna providing 802.11N 2x2 MIMO operation over a 60° sector
Network Interfaces	1x100/1000BASE-T Ethernet (RJ-45), Auto-sensing link speed and MDI/MDX	1x100/1000BASE-T Ethernet (RJ-45), Auto-sensing link speed and MDI/MDX	1x100/1000BASE-T Ethernet (RJ-45), Auto-sensing link speed and MDI/MDX
Other Interfaces	USB console interface	USB console interface	USB console interface
Power over Ethernet (PoE)	48 Volt, 4 Pair 803.3at (60W)	48 Volt, standard 803.3at	48 Volt, standard 803.3af
AP Power Interface	100~240 VAC 50/60 Hz	100~240 VAC 50/60 Hz	100~240 VAC 50/60 Hz
DC Power Interface	Not Supported	12-48 volt DC from external DC power source	Not Supported
Power Consumption	36 watts (maximum)	15 watts (maximum)	12.5 watts (maximum)
Operating Temperature	-40° C to +55° C (-40° F to +131° F) AC -30° C to +60° C (-22° F to +140° F) PoE	-40° C to +55° C (-40° F to +131° F) AC/DC -30° C to +60°C (-22° F to +140° F) PoE	-40 to +55°C (-40 to +131°F) AC -30° C to +60°C (-22° F to +140° F) PoE
Product Warranty	1 year parts and labor
