Aruba AP-103 Access Point
Cost effective dual-band coverage in medium-density enterprise Wi-Fi environments

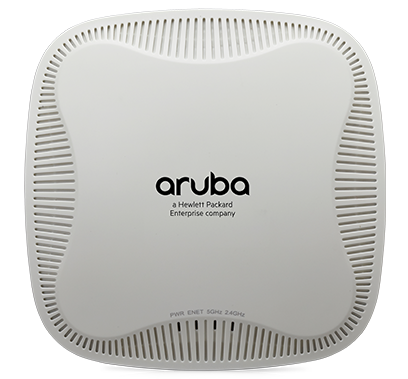

Aruba AP-103 Access Point

Sorry, this product is no longer available, please contact us for a replacement.

Antenna Pattern Plots

Documentation

Overview:

Multifunctional and affordable Aruba 103 series wireless access points (APs) maximize mobile device performance in medium-density Wi-Fi environments while minimizing interference from cellular networks.

These compact and cost-effective APs deliver wireless data rates up to 300 Mbps per radio employing 802.11n technology with two spatial MIMO streams. The AP-103 and Instant IAP-103 models feature a 2.4-GHz and a 5-GHz radio, each with 2x2:2 MIMO and two integrated dual-band omni-directional downtilt antennas.

Choose Your Operating Mode

Aruba 103 series APs offer a choice of operating modes to meet your unique management and deployment requirements.

Controller-managed mode. When managed by Aruba Mobility Controllers, the AP-103 offers centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding. Please refer to the Aruba Mobility Controller data sheets for more details.
Aruba Instant mode. In Aruba Instant mode, a single IAP-103 automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up on Instant AP, configure it over the air, and plug in the other APs – the entire process takes about five minutes.

For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, Instant APs are factoryshipped to any site and configure themselves when powered up.

If WLAN and network requirements change, a built-in migration path allows Aruba Instant APs to become part of a WLAN that is centrally managed by a Mobility Controller.

Benefits:

Advanced Cellular Coexistence (ACC)

Aruba’s Advanced Cellular Coexistence (ACC) feature enables WLANs to perform at peak efficiency by minimizing interference from 3G/4G LTE networks, distributed antenna systems and commercial small cell/femtocell equipment.

Wi-Fi client optimization

To eliminate sticky client behavior while users roam, the Aruba 103 series APs feature Aruba’s patented ClientMatch technology, which continuously gathers session performance metrics from mobile devices.

If a mobile device moves away from an AP or if RF interference impedes performance, ClientMatch automatically steers the device to a better AP.

Quality of service for Lync

Aruba 103 series APs additionally support priority handling and policy enforcement for individual Microsoft Lync media on the same device, including encrypted videoconferencing, voice, chat and desktop sharing.

Best-in-class RF management

All Aruba APs include Adaptive Radio Management technology, which is essential to creating the most reliable, high-performance WLANs. ARM manages the 2.4-GHz and 5-GHz radio bands to optimize Wi-Fi client performance and ensures that APs stay clear of RF interference.

Aruba 103 series APs can be configured to provide parttime or dedicated air monitoring for spectrum analysis and wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available.

Features:

Spectrum analysis

Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4-GHz and 5-GHz radio bands to identify sources of RF interference

Security

With an OpenDNS service subscription, Aruba Instant RAPs deliver integrated web filtering, malware and botnet protection to every device connected to the WLAN
Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys
SecureJack-capable for secure tunneling of wired Ethernet traffic

Specifications:

AP-103 Specifications
Operating Modes 802.11a/b/g/n Aruba Instant AP 802.11a/b/g/n Mobility Controller-managed AP Air monitor (AM) for wireless IDS, rogue detection and containment Spectrum analyzer Secure enterprise mesh Remote AP (RAP) when used with a Mobility Controller Wireless Radio Specifications AP type: Indoor, dual radio, 5-GHz and 2.4-GHz 802.11n 2x2:2 Software-configurable dual radio supports 5-GHz (Radio 0) and 2.4-GHz (Radio 1) 2x2 MIMO with two spatial streams and up to 300 Mbps wireless data rate Supported frequency bands (country-specific restrictions apply): 2.4000 to 2.4835 GHz 5.150 to 5.250 GHz 5.250 to 5.350 GHz 5.470 to 5.725 GHz 5.725 to 5.850 GHz Support for up to 255 associated client devices per radio, and up to 16 BSSIDs per radio Available channels: Dependent on configured regulatory domain Dynamic frequency selection (DFS) optimizes the use of available RF spectrum Supported radio technologies: 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n: Orthogonal frequency-division multiplexing (OFDM) Supported modulation types: 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM Transmit power: Configurable in increments of 0.5 dBm Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements): 2.4-GHz band: +21 dBm (18 dBm per chain) 5-GHz band: +21 dBm (18 dBm per chain) Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks Maximum ratio combining (MRC) for improved receiver performance Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance Short guard interval for 20-MHz and 40-MHz channels Space-time block coding (STBC) for increased range and improved reception Low-density parity check (LDPC) for high-efficiency error correction and increased throughput Supported data rates (Mbps): 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 (MCS0 to MCS15) 802.11n high-throughput (HT) support: HT 20/40 802.11n packet aggregation: A-MPDU, A-MSDU Power Maximum power consumption: 9.5W (POE) or 8W (DC) Power sources sold separately Direct DC source: 12 Vdc nominal, +/- 5% Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af or 802.3at-compliant source Antennas Two integrated dual-band down-tilt omni-directional antennas for 2x2 MIMO with maximum antenna gain of 3.9 dBi at 2.44 GHz, 4.1 dBi at 5.2 GHz and 4.3 dBi at 5.8 GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. Other Interfaces 10/100/1000BASE-T Ethernet network interface (RJ-45) Auto-sensing link speed and MDI/MDX 802.3az Energy Efficient Ethernet (EEE) PoE-PD: 48 Vdc (nominal) 802.3af PoE or 802.3at PoE+ DC power interface, accepts 1.7/4.0-mm center-positive circular plug with 9.5-mm length Serial console interface (proprietary; optional adapter cable available) Visual indicators (LEDs): Power/system status Ethernet link status (ENET) Radio status (two; RAD0, RAD1) Kensington security slot Reset button	Mounting Included with AP: Mounting brackets (2) for attaching to 9/16-inch or 15/16-inch T-bar drop-tile ceiling Spare mounting kit: AP-220-MNT-C1: Aruba AP mount kit contains two ceiling-grid rail adapters for flat rails Optional mounting kits: AP-220-MNT-C2: Aruba AP mount kit contains two ceiling-grid rail adapters for Interlude and Silhouette style rails AP-220-MNT-W1: Aruba AP mount kit contains one basic flat-surface wall/ceiling mount bracket AP-200-MNT-W2: Aruba AP mount kit contains one secure flat-surface wall/ceiling mount cradle Mechanical Dimensions/weight (unit, excluding mount accessories): 150 mm (W) x 150 mm (D) x 41.5 mm (H) 5.9” (W) x 5.9” (D) x 1.63” (H) 300 g (0.66 lbs) Dimensions/weight (shipping): 192 mm (W) x 178 mm (D) x 68 mm (H) 7.6” (W) x 7.0” (D) x 2.68” (H) 500 g (1.10 lbs) Environmental Operating: Temperature: 0° C to +40° C (+32° F to +104° F) Humidity: 5% to 95% non-condensing Storage and transportation: Temperature: -40° C to +70° C (-40° F to +158° F) Regulatory FCC/Industry of Canada CE Marked R&TTE Directive 1995/5/EC Low Voltage Directive 72/23/EEC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN 60601-1-1 and EN 60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative. Regulatory Model Numbers AP-103 and IAP-103: APIN0103 Certification CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance (WFA) certified 802.11a/b/g/n Warranty Limited lifetime warranty Minimum Operating System Software Versions ArubaOS 6.4.0.0 Aruba InstantOS 4.1.0.0 (planned availability mid 2014)

AP-103 Specifications

Operating Modes

802.11a/b/g/n Aruba Instant AP
802.11a/b/g/n Mobility Controller-managed AP
Air monitor (AM) for wireless IDS, rogue detection and containment
Spectrum analyzer
Secure enterprise mesh
Remote AP (RAP) when used with a Mobility Controller

Wireless Radio Specifications

AP type: Indoor, dual radio, 5-GHz and 2.4-GHz 802.11n 2x2:2
Software-configurable dual radio supports 5-GHz (Radio 0) and 2.4-GHz (Radio 1)
2x2 MIMO with two spatial streams and up to 300 Mbps wireless data rate
Supported frequency bands (country-specific restrictions apply):
- 2.4000 to 2.4835 GHz
- 5.150 to 5.250 GHz
- 5.250 to 5.350 GHz
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
Support for up to 255 associated client devices per radio, and up to 16 BSSIDs per radio
Available channels: Dependent on configured regulatory domain
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n: Orthogonal frequency-division multiplexing (OFDM)
Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
Transmit power: Configurable in increments of 0.5 dBm
Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
- 2.4-GHz band: +21 dBm (18 dBm per chain)
- 5-GHz band: +21 dBm (18 dBm per chain)
Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Short guard interval for 20-MHz and 40-MHz channels
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: 6.5 to 300 (MCS0 to MCS15)
802.11n high-throughput (HT) support: HT 20/40
802.11n packet aggregation: A-MPDU, A-MSDU

Power

Maximum power consumption: 9.5W (POE) or 8W (DC)
Power sources sold separately
Direct DC source: 12 Vdc nominal, +/- 5%
Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af or 802.3at-compliant source

Antennas

Two integrated dual-band down-tilt omni-directional antennas for 2x2 MIMO with maximum antenna gain of 3.9 dBi at 2.44 GHz, 4.1 dBi at 5.2 GHz and 4.3 dBi at 5.8 GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP.

Other Interfaces

10/100/1000BASE-T Ethernet network interface (RJ-45)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
- PoE-PD: 48 Vdc (nominal) 802.3af PoE or 802.3at PoE+
DC power interface, accepts 1.7/4.0-mm center-positive circular plug with 9.5-mm length
Serial console interface (proprietary; optional adapter cable available)
Visual indicators (LEDs):
- Power/system status
- Ethernet link status (ENET)
- Radio status (two; RAD0, RAD1)
Kensington security slot
Reset button

Mounting

Included with AP:
- Mounting brackets (2) for attaching to 9/16-inch or 15/16-inch T-bar drop-tile ceiling
Spare mounting kit:
- AP-220-MNT-C1: Aruba AP mount kit contains two ceiling-grid rail adapters for flat rails
Optional mounting kits:
- AP-220-MNT-C2: Aruba AP mount kit contains two ceiling-grid rail adapters for Interlude and Silhouette style rails
- AP-220-MNT-W1: Aruba AP mount kit contains one basic flat-surface wall/ceiling mount bracket
- AP-200-MNT-W2: Aruba AP mount kit contains one secure flat-surface wall/ceiling mount cradle

Mechanical

Dimensions/weight (unit, excluding mount accessories):
- 150 mm (W) x 150 mm (D) x 41.5 mm (H)
- 5.9” (W) x 5.9” (D) x 1.63” (H)
- 300 g (0.66 lbs)
Dimensions/weight (shipping):
- 192 mm (W) x 178 mm (D) x 68 mm (H)
- 7.6” (W) x 7.0” (D) x 2.68” (H)
- 500 g (1.10 lbs)

Environmental

Operating:
- Temperature: 0° C to +40° C (+32° F to +104° F)
- Humidity: 5% to 95% non-condensing
Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158° F)

Regulatory

FCC/Industry of Canada
CE Marked
R&TTE Directive 1995/5/EC
Low Voltage Directive 72/23/EEC
EN 300 328
EN 301 489
EN 301 893
UL/IEC/EN 60950
EN 60601-1-1 and EN 60601-1-2

For more country-specific regulatory information and approvals, please see your Aruba representative.

Regulatory Model Numbers

AP-103 and IAP-103: APIN0103

Certification

CB Scheme Safety, cTUVus
UL2043 plenum rating
Wi-Fi Alliance (WFA) certified 802.11a/b/g/n

Warranty

Limited lifetime warranty

Minimum Operating System Software Versions

ArubaOS 6.4.0.0
Aruba InstantOS 4.1.0.0 (planned availability mid 2014)

Wireless Radio Specifications:

RF Performance Table
	Maximum transmit power (dBm) per transmit chain	Receiver sensitivity (dBm) per receive chain
2.4 GHz - 802.11b
1 Mbps	18.0	-93.0
11 Mbps	18.0	-91.0
2.4 GHz - 802.11g
6 Mbps	18.0	-88.0
54 Mbps	16.0	-76.0
2.4 GHz - 802.11n HT20
MCS0/8	18.0	-88.0
MCS7/15	14.0	-73.0
2.4 GHz - 802.11n HT40
MCS0/8	18.0	-86.0
MCS7/15	14.0	-70.0
5 GHz - 802.11a
6 Mbps	18.0	-92.0
54 Mbps	16.0	-76.0
5 GHz - 802.11ac VHT40
MCS0/8	18.0	-92.0
MCS7/15	14.0	-73.0
5 GHz - 802.11ac VHT80
MCS0/8	18.0	-89.0
MCS7/15	14.0	-69.0

Antenna Pattern Plots:

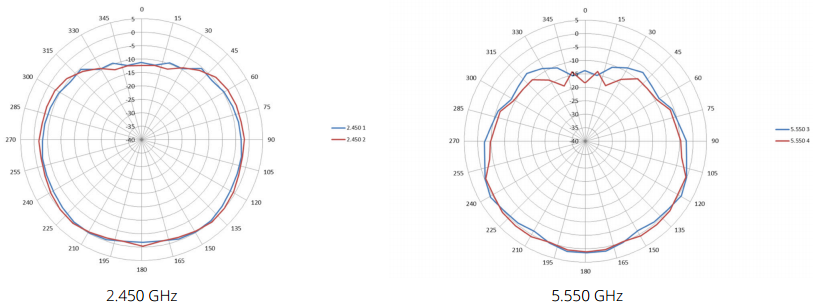

Horizontal or Azimuth plane (top view)

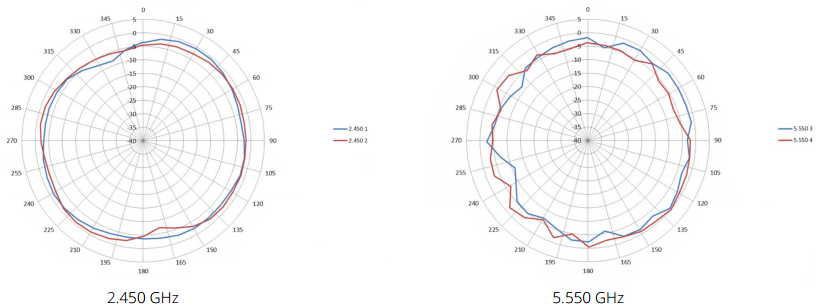

Elevation plane (side view, 0 degrees angle)

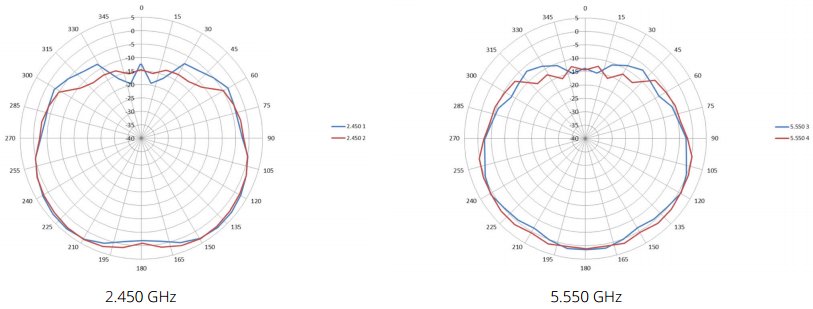

Elevation plane (side view, 90 degrees angle)

Documentation:

Aruba AP-103 Series Access Points Datasheet (.PDF)

Pricing Notes:

Pricing and product availability subject to change without notice.
