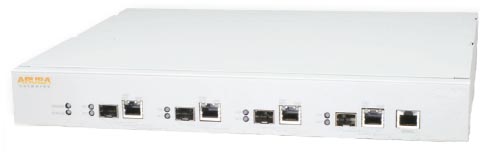

Aruba 3200XM Controller
Aruba Controllers Series

Overview:

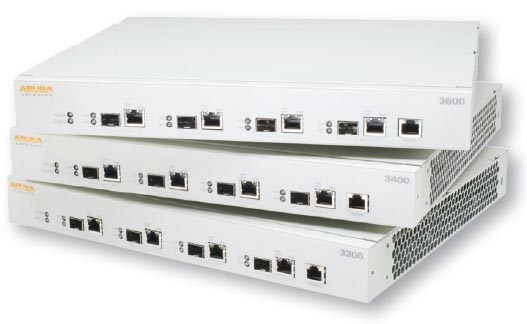

High-performance, standalone 3000 series Mobility Controllers from Aruba deliver a wide range of network services to medium and large regional offices. The 3000 series supports up to 8,192 users and performs stateful firewall policy enforcement at speeds up to 4 Gbp.

Through secure IP tunnels, Aruba access points (APs) and Mobility Access Switches move traffic to the 3000 series over a public or private transport network and provide local bridging at the access layer, depending on the end user application or IT traffic forwarding requirement.

In addition to supporting up to 128 APs or 32 Mobility Access Switches, the 3000 series can support up to 512 Remote APs (RAPs) when deployed in the data center as part of an Aruba Virtual Branch Network™ (VBN™).

The 3000 series also manages authentication, encryption, virtual private network (VPN) connections, IPv4 and IPv6 Layer 3 networking, the Aruba Policy Enforcement Firewall (PEF), Aruba Adaptive Radio Management (ARM), and Aruba RFProtect™ Spectrum Analysis and Wireless Intrusion Protection capabilities.

Clustering and centralized management allow large enterprise networks with hundreds of Mobility Controllers to be managed and maintained with minimal staff. A designated master Mobility Controller manages multiple local Mobility Controllers, while the AirWave Wireless Management Suite provides unprecedented control for IT staff through historical reporting and real-time troubleshooting.

Specifications:

Technical Specifications
	Aruba 3200	Aruba 3400	Aruba 3600
Controller Performance and Capacity
LAN-connected Access Points (Max)1	32	64	128
Remote Access Points (Max)1	128	256	512
Users (Max)1	2048	4096	8192
MAC addresses	64,000	64,000	64,000
VLAN IP interfaces	128	256	512
Number of IPv4 unicast routes	2,048	2,048	2,048
Active firewall sessions	128,000	128,000	128,000
Concurrent IPsec tunnels (Max)	2,480	4,960	4,960
System BSSIDs	512	1,024	4,096
Firewall throughput	3 Gbps	4 Gbps	4 Gbps
Encrypted throughput (3DES, AESCBC256)	1.6 Gbps	4 Gbps	8 Gbps
Encrypted throughput (AES-CCM)	0.8 Gbps	2 Gbps	4 Gbps
Power Specification
AC Input Voltage	90-264 V, Universal Input	90-264 V, Universal Input	90-264 V, Universal Input
AC Input Current	1.5 A	2.2 A	2.2 A
AC Input Frequency	47-63 Hz	47-63 Hz	47-63 Hz
Maximum power consumption	35 Watts	45 Watts	60 Watts
Mobility Access Switches (max)	Up to 8	Up to 16	Up to 32
Interfaces
Console (RS-232) RJ-45 4x Gigabit Ethernet (10/100/1000Base-T)* 4x Gigabit Ethernet (1000Base-X) SFP* * Dual-personality ports - 10/100/1000Base-T or pluggable module
Operating Specifications and Dimensions
Operating temperature range	0° to 40° C
Storage temperature range	-40° to 70° C
Humidity, non-condensing	5 to 95%
Height	1.75" (44.5 mm)
Width	13.8" (351 mm)
Depth	11.7" (297 mm)
Weight 3200	7.1 lbs/3.2 kgs (unboxed)
Weight 3400/3600	7.1 lbs/3.2 kgs (unboxed)
Warranty
Hardware	1 year parts/labor*
Software	90 days*
* Extended with support contract
Regulatory and Safety Compliance
FCC part 15 Class A CE Industry Canada Class A VCCI Class A (Japan) EN 55022 Class A (CISPR 22 Class A), EN 61000-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4- 6, EN 61000-4-8, EN 61000-4-11, EN 55024, AS/NZS 3548 UL 60950, EN60950 CAN/CSA 22.2 #60950 CE mark, cTUVus, GS, CB, C-tick, Anatel, NOM, MIC, IQC

Capacity determined by AP, PEF and WIP software licenses

Aruba Controller Series Comparison Matrix:

Aruba 6000 and 3000 Controllers with Aruba OS 6.1
Features	6000 Modular Controller		3000 Series Regional Office Controller
	Chassis	M3 Supervisor Card	Aruba 3200	Aruba 3400	Aruba 3600
Max number of LAN-connected APs per controller	2,048	512	32	64	128
Max number of Remote APs per controller	4,096	1,024	128	256	512
Max number of wired APs per controller	512	128	8	16	32
Number of ports tunneled	4096	1024	128	256	512
Max number of users per controller	32,768	8,192	2,048	4,096	8,192
MAC addresses	256,000	64,000	64,000	64,000	64,000
VLAN IP interfaces	5,600	1,400	128	256	512
Number of IPv4 unicast routes	8,192	2,048	2,048	2,048	2,048
Max auto-negotiating 10/100/1000BASE-T ports	0	0	4	4	4
Max Gigabit Ethernet ports (SFP)	40	10	4	4	4
Max 10 Gig Ethernet ports (XFP)	8	2	NA	NA	NA
Form factor/footprint	< 4 RU	NA	1 RU	1 RU	1 RU
Active firewall sessions	2,097,200	524,300	128,000	128,000	128,000
System BSSIDs	16,384	4,096	256	512	1,024
Concurrent IPSec tunnels	16,384	4,096	2,048	4,096	4,096
Firewall throughput	80 Gbps	20 Gbps	3 Gbps	4 Gbps	4 Gbps
Encrypted throughput (3DES, AESCBC256)	32 Gbps	8 Gbps	1.6 Gbps	4 Gbps	8 Gbps
Encrypted throughput (AES-CCM)	16 Gbps	4 Gbps	800 Mbps	2 Gbps	4 Gbps
Out-of-band management port	Yes	Yes	No	No	No
Redundant power	Yes	NA	No	No	No
Redundant fans	Yes	NA	Yes	Yes	Yes
Max power consumption	1384 W	130 W	35 W	45 W	60 W
802.11 WLAN	802.11a/b/g/n
Encryption types	WEP, TKIP, DES, AES-CCMP, 3DES, AES-CBC, xSec
Authentication types	WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, 802.1X, MAC address, captive portal
Wi-Fi certified	Yes
Management capabilities	SNMP, Web, CLI using SSH, Telnet and console port
Hardware warranty	1 year
Software warranty	90 days
