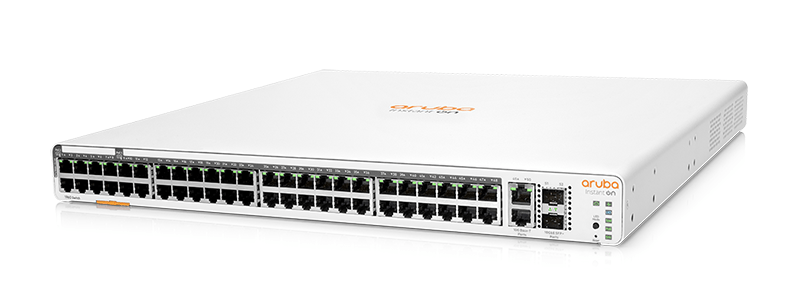

Aruba Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch (JL809A)
A scalable solution for growing businesses with heavy bandwidth requirements.
Aruba Instant On 1960 hardware is backordered indefinitely and cannot be purchased, please check 1960 Series Switches for a viable in-stock replacement, please contact us for further assistance.

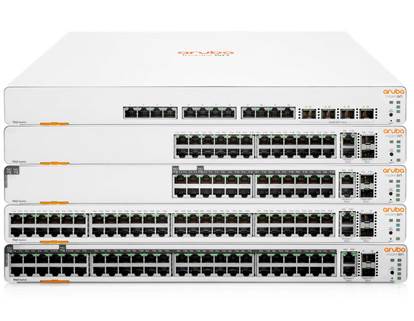

Aruba Instant On 1960 Switch Series
In today’s digital-first environment, small businesses face many challenges to stay afloat and competitive. With tight budgets and limited technical expertise, they’re struggling to keep up with the explosion of devices and bandwidthheavy applications running on the network. To optimize both performance and investment, small businesses need costeffective, next-gen networking solutions.
The Aruba Instant On 1960 Switch Series is an easy-to-use and affordable wired solution for networks supporting IT, mobile and cloud applications.
Aruba Instant On 1960 Switches are advanced, smartmanaged, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance.
Simplicity at its best
Plug-and-play switches that work together with Instant On APs right out of the box
Cloud-Managed stacking to configure and manage multiple switches through the Instant On mobile app
Security you can count on
Protect your network from unauthorized access with Access Control List, IEEE 802.1x and VLANs
Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks
We’ve got you covered
No extra licensing or subscription fees
Industry-leading limited lifetime warranty and support
The Aruba Instant On 1960 Switch Series includes five switches: two (2) 24-port and two (2) 48-port models in PoE and non-PoE configurations, and a 12 port 10-Gigabit aggregation switch. The access switches each have two (2) 10GBASE-T and two (2) 10G SFP+ uplink ports for highbandwidth connectivity. The 1960 aggregation switch comes with twelve (12) 10GBase-T and four (4) SFP+ ports, providing 10G connectivity to servers, network storage devices and access switches alike. With PoE models, up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones, and up to 60W PoE power delivery is available for Class 6 PoE devices like pan-tilt zoom cameras and video-enabled IP-phones. The 24-port and 48-port PoE models come with a power budget of 370W and 600W respectively to support the latest IoT devices.
The 1960 switches provide stacking capabilities: up to (four) 4 switches (access and aggregation can be mixed and matched in a stack) can be stacked together and managed through one single management IP address, simplifying network operations. This means up to 288 ports, including 16 10G uplink ports, operate as one switch.
The 1960 switches support stacking through local and cloudmanaged stacking modes. Local stacking provides True Stacking to easily configure, manage and troubleshoot physical switches as a single entity, while cloud-managed stacking provides ease-of-setup via the Instant On mobile app.
Using either the Instant On mobile app or the cloud-based web portal, you can quickly set up, monitor and manage the 1960 switch series from anywhere at any time.
Aruba Instant On Warranty and Support Services
Aruba Instant On comes with a 2 year* warranty for access points and a limited lifetime warranty for the 1930 switches.
* WARRANTY & SUPPORT: Aruba Instant On 2-year warranty includes 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support is for as long as you own the products.
- Simplify network management by stacking up to (four) 4 Aruba Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.
- Smart-managed layer 2+ Ethernet switch series ready to deploy in 24- and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.
- The Aruba 1960 aggregation switch comes with twelve (12) 10GBase-T and four (4) SFP+ ports, providing 10G connectivity to servers, network storage devices and access switches alike.
- For environments with heavy bandwidth needs, 10GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.
- Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
- Limited Lifetime Warranty.
High-level Gigabit with 10GbE Networking for Advanced Small Businesses
Each model of the Aruba Instant On 1960 Switch Series includes four 10GbE connections to connect to servers, network storage devices, or to other switches.
Two connections of 10GBASE-T deliver 10GbE over copper Category 6a cabling for simple, affordable, high-bandwidth connections to a maximum distance of 100 meters.
With PoE models, up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones, and up to 60W PoE power delivery is available for Class 6 PoE devices like pan-tilt zoom cameras and video-enabled IP-phones.
Simplify Network Deployment and Management for Small Organizations
The Aruba Instant On 1960 Switch series offers a complete portfolio of choices for increased small business flexibility. It consists of five models including two (2) 24-port and two (2) 48-port models in PoE and non-PoE configurations, and a 12 port 10-Gigabit aggregation switch.
The 24-port and 48-port PoE models come with a power budget of 370W and 600W respectively to support the latest PoE-powered IoT devices.
The Aruba Instant On 1960 Switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
Each switch has a pull-out tag, known as a luggage tag, on the front panel of the switch.
The tag includes a QR code that includes switch ID information (SKU number, SKU name, serial number, and MAC address) for easy switch onboarding through Instant On mobile app.
Ease of Use with Cloud-Managed Stacking
The Aruba Instant On mobile app and cloud-based web portal make cloud-managed stacking easy — just follow the recommendations to stack up to four (4) Aruba Instant On 1960 switches and manage as a single entity.
The Aruba Instant On mobile app automatically detects members, making multiple stack members easy to setup and manage remotely.
Automated configurations and streamlined workflows allow users to manage all stack members through one single dashboard without the need for device reboot.
Robust Security to Protect Your Network
The Aruba Instant On 1960 Switch Series lets you use VLANs and Access Control Lists to set bounds on what data can be seen by which users.
Leverage 802.1X with a RADIUS server to ensure only known and authorized users can access your network.
Supports Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
Why Instant On?:
EASY SET UP AND MANAGEMENT
The Aruba Instant On mobile app allows you to set up, manage, and monitor Instant On switches and access points directly from your phone. Within the app, you get guided step-by-step instructions to install Instant On devices to get your network up and running quickly — no technical expertise required. And cloud-based access allows you to access the network from anywhere, at any time.
The Aruba Instant On mobile app and cloud-based web portal make cloud-managed stacking easy — just follow the recommendations to stack up to four (4) 1960 switches and manage as a single entity. The Instant On mobile app automatically detects members, making it easy to set up and manage the stack remotely, through a single dashboard and without the need to reboot.
OPTIMIZED USER EXPERIENCE
The Aruba Instant On mobile app provides common workflows for Instant On switches and access points, making it easier to configure, monitor and manage your network remotely without the need for additional hardware like a cloud key. You can also update firmware on your Instant On devices directly from the cloud whenever you want, from wherever you are.
Each switch has a pull-out tag, known as a luggage tag, on the front panel of the switch. The tag includes a QR code that includes switch ID information (SKU number, SKU name, serial number, and MAC address) for easy switch onboarding through Instant On mobile app.
Instant On automatically detects and applies highest (critical) PoE priority to Instant On Access Points for uninterrupted power delivery and wireless network access. Wired and wireless voice traffic is prioritized with high QoS priority end-to-end for optimal voice performance.
SITE INVENTORY AND TOPOLOGY VIEW
The site inventory view shows all Instant On switches and access points on a single interface, and the topology view provides an intuitive structure of all Instant On devices deployed on the network — allowing you to quickly identify non-functioning devices and troubleshoot accordingly. Network issues can be easily diagnosed with connectivity tests like Ping and Traceroute.
Built-in security features protect your network from external threats by blocking malware attacks and keeping unauthorized users off the network. Network traffic can be filtered and access restricted based on MAC and IP address.
NO HIDDEN FEES
All features are included in the price of the hardware — there are no recurring subscription or licensing fees. Expert-level support and industry leading limited lifetime warranty are also included, along with chat support for the life of the product.
MULTI-SITE REMOTE MANAGEMENT
The cloud-hosted web interface and mobile app make it easy to remotely manage multiple sites, multiple networks, distributed deployments and multi-tenant deployments. Each site is logically separated and has its own configuration, statistics, guest portal, and admin read/write privileges. Instant On allows you to create three admin accounts per site, offering the option to lock accounts from accidental deletion or to allow your account to be managed by a trusted partner.
|Specifications||Aruba Instant On 1960 12XGT 4SFP+ Switch
|Aruba Instant On 1960 24G 2XGT 2SFP+ Switch
|Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch
|Aruba Instant On 1960 48G 2XGT 2SFP+ Switch
|Aruba Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch
|Gigabit and Uplink ports||12x 100/1000/10GBASE-T ports
4x SFP+ 10GbE ports
|24x 10/100/1000 Mbps ports
2x SFP+ 10GbE ports
2x 10BASE-T ports
|24 RJ-45 autosensing 10/100/1000 Mbps ports including 4 CL4 and 20 CL6 PoE port
2x SFP+ 10GbE ports
2x 10BASE-T ports
|48x 10/100/1000 Mbps ports
2x SFP+ 10GbE ports
2x 10BASE-T ports
|48 RJ-45 autosensing 10/100/1000 Mbps ports including 8 CL4 and 40 CL6 PoE ports
2x SFP+ 10GbE ports
2x 10BASE-T ports
|Dimensions||350.5(d) x 442.5(w) x 43.95(h) mm||350.5(d) x 442.5(w) x 43.95(h) mm||350.5(d) x 442.5(w) x 43.95(h) mm||350.5(d) x 442.5(w) x 43.95(h) mm||402.75(d) x 442.5(w) x 43.95(h) mm|
|Weight||9.6 lb (4.3 kg)||8.7 lb (3.9 kg)||10.4 lb (4.7 kg)||9.8 lb (4.4 kg)||10.8 lb (4.9 kg)|
|Throughput capacity (Mpps)||238 Mpps||95 Mpps||95 Mpps||131 Mpps||131 Mpps|
|Capacity||320 GB||128 GB||128 GB||176 GB||176 GB|
|Reliability MTBF (years)||88.8||123.0||65.3||109.4||68.0|
|PoE power||—||—||Total 370 W PoE Power
(Up to 240 W of Class 6 or 370 W of Class 4 PoE)
|—||Total 600 W PoE Power
(Up to 480 W of Class 6 or 600 W of Class 4 PoE)
|Warranty||Limited Lifetime Warranty||Limited Lifetime Warranty||Limited Lifetime Warranty||Limited Lifetime Warranty||Limited Lifetime Warranty|
It’s as easy as 1-2-3. Really.
First things first: Prepare your workspace. Then, power up your access point or switch.
As it powers up, download the mobile app. Create an account and configure your network when ready.
Once you’re powered up and configured, you can connect. That’s it. Monitor and manage the rest from your phone.
More about the Aruba Instant On app.
Get the control you need to run your business remotely. Add devices and manage your site—all from the palm of your hand. No licensing or subscription fees required.
Simplified smart mesh setup.
Add additional access points and extend your network with simple mesh setup.
Guided device setup.
Add access points and switches to your network with the integrated installation wizard in the Instant On app.
Let Aruba Instant On serve as the primary Wi-Fi router to your network. Just connect your access point to your modem and you’re all set.
App classification control & visibility.
Get a simplified view of the top 5 apps used in the network. Plus, block specific application categories.
Create and manage separate guest and employee networks with ease.
Stop bandwidth hogs. Improve your wireless network performance.
Client visibility and blocking.
Get visibility into your connected devices. Block specific, unwanted clients from accessing your network.
Wired and wireless access control list.
Prevent malicious traffic from entering your network. Restricting user access to specific websites or subnets.
Access Aruba Instant On on the web.
Same easy-to-use features. Bigger screen. Manage your network from the browser of your choice.
The key features of Aruba Instant On.
Get optimized network performance—even in the most congested environments. Automatically go the best 802.11 channel and transmitting power for each AP in its current RF environment.
Advanced WPA3 Support
Secure your network and provide access using a shared password. Choose either WPA2 security standards or the more advanced WPA3 security standards from your mobile app.
Take advantage of the enterprise-grade Bluetooth modules found in each of our access points. Troubleshoot any network issues you may have straight from our mobile app.
Automatic Band Selection
Get the best network band at any given time. Or, manually choose 2.4GHz, 5Ghz, or both. Enable and disable channels with a single click.
