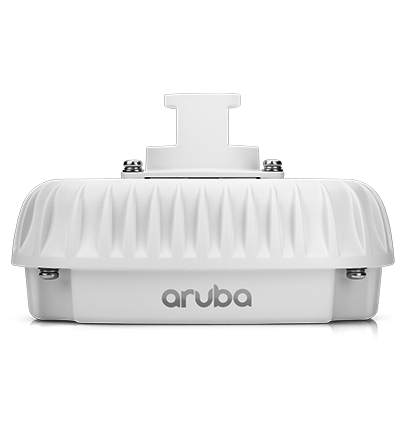

Aruba AP-387 Access Point
802.11ad and 802.11ac for high speed outdoor point-to-point connectivity

• AP type:
  • Outdoor hardened, dual radio, 60GHz 11ad and 5GHz 802.11ac 2x2 MIMO
• 60 GHz 802.11ad 1x1 (2502.5 Mbps max rate) radio
  • 1 Spatial Stream for up to 2.5 Gbps
  • Internal scanning antenna
    • +/- 45° Azimuth Scan
    • +/- 17° Vertical Scan
• 5GHz 802.11ac 2x2 MU-MIMO (867 Mbps max rate)
  • Two spatial stream MIMO for up to 867 Mbps wireless data
  • Internal directional antenna 9 dBi
• Software-configurable dual radio supports 5 GHz (Radio 0) and 60GHz (Radio 1)
• Supported frequency bands (country-specific restrictions apply):
  • 2.400 to 2.4835 GHz (BLE)
  • 5.150 to 5.250 GHz
  • 5.250 to 5.350 GHz
  • 5.470 to 5.725 GHz
  • 5.725 to 5.850 GHz
  • 5.825 to 5.875 GHz
  • 57 to 64 GHz
• Available channels: Dependent on configured regulatory domain.
• Dynamic frequency selection (DFS) maximizes the use of available 5GHz RF spectrum.
• Supported radio technologies:
  • 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
  • 802.11ad: Single carrier (SC)
• Supported modulation types:
  • 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
  • 802.11ad: BPSK, QPSK
• Transmit power: Configurable in increments of 0.5 dBm for 5 GHz
• Maximum EIRP (limited by local regulatory requirements):
  • 60GHz band: 40 dBm EIRP max
  • 5GHz band:  387: 34 dBm EIRP
• Maximum ratio combining (MRC) for improved receiver performance on 5 GHz.
• Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance.
• Short guard interval for 20MHz, 40MHz, 80MHz on 5GHz.
• Low-density parity check (LDPC) for high-efficiency error correction and increased throughput.
• 802.11ac Transmit beam-forming (TxBF) for increased signal reliability and range
• 802.11ad Beam Steering
• Supported 11a/ac data rates (Mbps):
  • 802.11a 6, 9, 12, 18, 24, 36, 48, 54
  • 802.11n (5GHz): 6.5 to 600 (MCS0 to MCS15)
  • 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)
• 802.11n high-throughput (HT) support: HT 20/40
• 802.11ac very high throughput (VHT) support: VHT 20/40/80/160
• 802.11ad
• 802.11n/ac packet aggregation: A-MPDU, A-MSDU

• Worst-case power consumption: 13.5 W
• Idle power consumption: 4.5W
• Power sources sold separately
• Power over Ethernet (PoE+): 802.3at-compliant
• Power over Ethernet (PoE): 802.3af with some operational restriction.
  • Max conducted power per chain for 5GHz drops to 19 dBm

• One 10/100/1000BASE-T Ethernet network interfaces (RJ-45)
  • Auto-sensing link speed and MDI/MDX
  • 802.3az Energy Efficient Ethernet (EEE)
• Bluetooth Low Energy (BLE) radio
  • Up to 4dBm transmit power (class 2) and -91 dBm receive sensitivity
• Visual indicator (multi-color LED): For system and radio status
• Reset button: Factory reset (during device power up)
• Micro USB console interface

• AP-270-MNT-V1
• AP-270-MNT-V2
• AP-270-MNT-H1*
• AP-270-MNT-H2*

* Recommended bracket solutions for most apps.

• Dimensions (excluding mount adapter):
  • 18 cm (W) x 18 cm (D) x 10.1 cm (H)
• Weight (excluding mount adapter):
  • 1.198 kg

• Operating:
  • Temperature: -40°C to +60°C (-40°F to +140°F)
  • Humidity: 5% to 95% non-condensing
• Storage and transportation:
  • Temperature: -40°C to +70°C (-40°F to +158°F)
• Operating altitude: 3,000 m
• Water and dust
  • IP66/67
• Salt tolerance
  • Tested to ASTM B117-07A salt spray 200 hrs
• Wind survival: up to 165 mph
• Shock and vibration ETSI 300-19-2-4

• FCC/ISED
• CE Marked
• RED Directive 2014/53/EU
• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• UL/IEC/EN 60950
• EN 60601-1-1, EN60601-1-2

For more country-specific regulatory information and approvals, please see your Aruba representative.

• AP-387: APEX0387

• CB Scheme Safety, cTUVus
• UL2043 plenum rating
• Wi-Fi Alliance certified 802.11a/b/g/n/ac

• ArubaOS 8.4 and Aruba InstantOS 8.4
