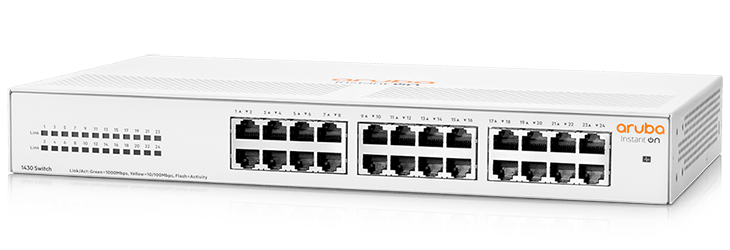

Aruba Instant On 1430 24G Switch (R8R49A)
Unmanaged switches designed for small businesses


Aruba Instant On 1430 24G Switch (R8R49A)


Aruba Networks Products
Aruba Instant On Switches
Aruba Instant On 1430 24G Switch
#R8R49A#ABA
List Price: $201.00
Our Price: $179.99

Overview:

Aruba Instant On 1430 Switch Series

Perfect for small offices and home offices

Technology brings new revenue opportunities, more effective communication, and improved productivity to businesses of all sizes. Yet it also poses daily challenges of configuration and maintenance, especially for small businesses who lack IT support. Small offices and home offices need reliable network connectivity that’s fast, configuration-free, and affordable for even the most budget-strapped businesses.

The Aruba Instant On 1430 Switch Series is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and lowcost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities — at an affordable price point — to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-andplay operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.

Aruba Instant On 1430 Series Family

1430 Switch Series Simplicity

Simplicity at its best

Plug-and-play switches that work right out of the box

Zero configuration required


1430 Switch Series Reliablity

Reliable connectivity

Connect faster with Gigabit Ethernet speed

PoE to power devices like APs and IP phones

1930 Switch Series Covered

We’ve got you covered

Industry-leading limited lifetime warranty and support

24 x 7 chat support for entire warranty period


The Aruba Instant On 1430 Switch Series includes seven switches in PoE and non-PoE configurations: one (1) 5-port, two (2) 8-port, two (2) 16-port, one (1) 24-port, and one (1) 26-port model with 2 SFP uplinks models. With the PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices. All switches are fan-less, making them ideal for acoustically sensitive areas, and unmanaged requiring no configuration (not managed by Aruba Instant On management).


Highlights:

  • Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-, and 26-port models
  • Up to 124W of PoE to power APs, IP Phones, and other IoT devices
  • No configuration or management needed
  • Plug-and-play with fully automated functions and zero ongoing maintenance
  • Quality of Service (QoS) and flow control for improved network efficiency
  • Fan-less with Energy Efficient Ethernet for low power consumption
  • Class B certified for home office networks (5 and 8 port models)

The Instant On Differentiators

Better Together

Aruba Instant On products work together to provide a seamless Wi-Fi experience. Wired and wireless voice traffic is prioritized with high QoS priority end-to-end for optimal voice performance.

Industry-Leading Support and Warranty

Expert-level support and industry-leading limited lifetime warranty are also included, along with chat support for the life of the product.


Aruba Instant On Warranty and Support Services

Aruba Instant On comes with a 2 year* warranty for access points and a limited lifetime warranty for the 1930 switches.

* WARRANTY & SUPPORT: Aruba Instant On 2-year warranty includes 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support is for as long as you own the products.

More infoWarranty & Support Services Datasheet

Foundation Care Solution Brief

Aruba Warranty and Support Summary

Key Features

PLUG-AND-PLAY

Gigabit Ethernet speeds
Supports half/full-duplex auto-negotiating capability on access ports that doubles the throughput of every port.

Long distance fiber connectivity
26-port model includes two 1G SFP fiber ports for uplinks and to support long distance connectivity using fiber transceivers, for a total of 28 Ethernet ports.

Simplified cabling
Automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports using Auto MDI/MDI-X.

Ethernet Alliance PSE Class 4 PoE Certification
Power Over Ethernet (PoE) functionality is supported on two 1430 models that provide up to 30 W per port, which allows support of Class 4 PoE or IEEE 802.3at-capable devices such as video IP phones, wireless access points, as well as any 15.4 W IEEE 802.3af compliant end device, thereby eliminating the need for additional electrical cabling and circuits.

EAPoL frames forwarding
802.1x EAP over LAN frames are forwarded through the switch so that clients can authenticate when the device gives connectivity between an authenticator and supplicants.

STP BPDU frames forwarding
The switch forwards the BPDU frames to make sure that Spanning Tree Protocol works correctly preventing loops in the topology.

Brand Standard Class Min. power at the PSE port Max. power at the PD port Wire usage
PoE 1 IEEE 802.3 af 0-3 15.4W 13W 2 pair
IEEE 802.3 at 4 30W 25.5W

TRAFFIC OPTIMIZATION

Prioritize voice and video
Quality of Service provides priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification.

Flow control
Provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.

Jumbo frame support
Provides up to 9216 bytes frame size to improve the performance of large data transfers.


ENERGY EFFICIENCY

Energy Efficient Ethernet (EEE)
Compliant with 802.3az standard requirements to save energy during periods of low data activity.

Fan-less operation
Requires less power to operate and enables quiet operation in acoustically sensitive environments.


WARRANTY, SERVICE AND SUPPORT

Aruba Instant On Limited Lifetime Support provides 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support is included for the life of the product.

Why Instant On?:


EASY SET UP AND MANAGEMENT

The Aruba Instant On mobile app allows you to set up, manage, and monitor Instant On switches and access points directly from your phone. Within the app, you get guided step-by-step instructions to install Instant On devices to get your network up and running quickly — no technical expertise required. And cloud-based access allows you to access the network from anywhere, at any time.

TWO-FACTOR AUTHENTICATION (2FA)

As the number of security breaches continues to rise, 2FA has become an essential tool to mitigate risk against compromised login credentials. Two-Factor Authentication (2FA), provides an additional layer of authentication, prevents attackers from remotely accessing the network, and secures sensitive customer information.

OPTIMIZED USER EXPERIENCE

The Aruba Instant On mobile app provides common workflows for Instant On switches and access points making it easier to configure, monitor and manage your network remotely without the need for additional hardware like cloud keys or VPN. You can also update firmware on your Instant On devices directly from the cloud whenever you want, from wherever you are.


BETTER TOGETHER

Instant On automatically detects and applies highest (critical) PoE priority to Instant On Access Points for uninterrupted power delivery and wireless network access. Wired and wireless voice traffic is prioritized with high QoS priority end-to-end for optimal voice performance.





SITE INVENTORY AND TOPOLOGY VIEW

The site inventory view shows all Instant On switches and access points on a single interface, and the topology view provides an intuitive structure of all Instant On devices deployed on the network — allowing you to quickly identify non-functioning devices and troubleshoot accordingly. Network issues can be easily diagnosed with connectivity tests like Ping and Traceroute.

MULTI-SITE REMOTE MANAGEMENT

The cloud-hosted web interface and mobile app make it easy to remotely manage multiple sites, multiple networks, distributed and multi-tenant deployments. Each site is logically separated and has its own configuration, statistics, guest portal, and admin read/write privileges. Instant On allows you to create three admin accounts per site, offering the option to lock accounts from accidental deletion.


BUILT-IN SECURITY

Built-in security features protect your network from external threats by blocking malware attacks and keeping unauthorized users off the network. Network traffic can be filtered and access restricted based on MAC and IP address.

NO HIDDEN FEES

All features are included in the price of the hardware — there are no recurring subscription or licensing fees. Expert-level support and industry-leading limited lifetime warranty are also included, along with chat support for the life of the product.


Specifications:


Specifications Aruba Instant On 1430 5G Switch (R8R44A) Aruba Instant On 1430 8G Switch (R8R45A) Aruba Instant On 1430 8G Class4 PoE 64W Switch (R8R46A) Aruba Instant On 1430 16G Switch (R8R47A) Aruba Instant On 1430 16G Class4 PoE 124W Switch (R8R48A) Aruba Instant On 1430 24G Switch (R8R49A) Aruba Instant On 1430 26G 2SFP Switch (R8R50A)
I/O ports and slots
5 RJ-45 autosensing 10/100/1000 ports

(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASET/100BASE-TX: half or full; 1000BASE-T: full only
8 RJ-45 autosensing 10/100/1000 ports

(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASET/100BASE-TX: half or full; 1000BASE-T: full only
8 RJ-45 autosensing 10/100/1000 Class 4 PoE ports

(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASET/100BASE-TX: half or full; 1000BASE-T: full only
16 RJ-45 autosensing 10/100/1000 ports

(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASET/100BASE-TX: half or full; 1000BASE-T: full only
16 RJ-45 autosensing 10/100/1000 Class 4 PoE ports

(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASET/100BASE-TX: half or full; 1000BASE-T: full only
24 RJ-45 autosensing 10/100/1000 ports

(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASET/100BASE-TX: half or full; 1000BASE-T: full only
26 RJ-45 autosensing 10/100/1000 ports

(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASET/100BASE-TX: half or full; 1000BASE-T: full only

2 SFP 1GbE ports
Physical Characteristics
Dimensions 93(d) x 116(w) x 26(h) mm 138(d) x 157(w) x 37(h) mm 150(d) x 177(w) x 37(h) mm 258(d) x 275(w) x 44(h) mm 260(d) x 275(w) x 44(h) mm 225(d) x 340(w) x 44(h) mm 225(d) x 388(w) x 44(h) mm
Weight 0.60 lb (0.27 kg) 1.30 lb (0.59 kg) 1.70 lb (0.77 kg) 3.80 lb (01.72 kg) 4.60 lb (2.09 kg) 4.20 lb (1.91 kg) 5.00 lb (2.27 kg)
Processor and Memory
  2Kb EEPROM; Packet buffer size: 1.0 Mb 128Kb EEPROM; Packet buffer size: 2.0 Mb 128Kb EEPROM; Packet buffer size: 2.0 Mb 128Kb EEPROM; Packet buffer size: 2.0 Mb 128Kb EEPROM; Packet buffer size: 2.0 Mb 128Kb EEPROM; Packet buffer size: 2.0 Mb 32Mb Flash; Packet buffer size: 12.0 Mb
Performance
100 Mb latency < 3.81μSec < 2.7 μSec < 2.7 μSec < 2.7 μSec < 2.7 μSec < 2.7 μSec < 5.21 μSec
1000 Mb latency < 0.93 μSec < 1.80 μSec < 1.80 μSec < 1.80 μSec < 1.80 μSec < 1.80 μSec < 2.90 μSec
Throughput (Mpps) 7.44 Mpps 11.90 Mpps 11.90 Mpps 23.80 Mpps 23.80 Mpps 35.71 Mpps 41.68 Mpps
Capacity 10 Gbps 16 Gbps 16 Gbps 32 Gbps 32 Gbps 48 Gbps 56 Gbps
MAC address table size 8192 entries 8192 entries 8192 entries 8192 entries 8192 entries 8192 entries 16384 entries
Reliability MTBF (years) 525.8 416.2 131.1 269.8 126.1 199.5 171.9
Environment
Operating temperature 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C)
Operating relative humidity 15% to 95% @ 104°F (40°C) non-condensing 15% to 95% @ 104°F (40°C) non-condensing 15% to 95% @ 104°F (40°C) non-condensing 15% to 95% @ 104°F (40°C) non-condensing 15% to 95% @ 104°F (40°C) non-condensing 15% to 95% @ 104°F (40°C) non-condensing 15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/ storage temperature -40°F to 158°F (-40°C to 70°C) up to 15000 ft -40°F to 158°F (-40°C to 70°C) up to 15000 ft -40°F to 158°F (-40°C to 70°C) up to 15000 ft -40°F to 158°F (-40°C to 70°C) up to 15000 ft -40°F to 158°F (-40°C to 70°C) up to 15000 ft -40°F to 158°F (-40°C to 70°C) up to 15000 ft -40°F to 158°F (-40°C to 70°C) up to 15000 ft
Nonoperating/ storage relative humidity 15% to 90% @ 149°F (65°C) non-condensing 15% to 90% @ 149°F (65°C) non-condensing 15% to 90% @ 149°F (65°C) non-condensing 15% to 90% @ 149°F (65°C) non-condensing 15% to 90% @ 149°F (65°C) non-condensing 15% to 90% @ 149°F (65°C) non-condensing 15% to 90% @ 149°F (65°C) non-condensing
Altitude up to 10,000 ft (3 km) up to 10,000 ft (3 km) up to 10,000 ft (3 km) up to 10,000 ft (3 km) up to 10,000 ft (3 km) up to 10,000 ft (3 km) up to 10,000 ft (3 km)
Acoustics
  Fanless Fanless Fanless Fanless Fanless Fanless Fanless
Electrical Characteristics
Frequency 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz
AC voltage 100-240VAC 100-240VAC 100-240VAC 100-127VAC / 200- 240VAC 100-127VAC / 200- 240VAC 100-127VAC / 200- 240VAC 100-127VAC / 200- 240VAC
Current 0.3A (12VDC - 1A) 0.3A (12VDC - 1A) 2A (54VDC - 1.58A) 0.2A/0.2A 1.7A /0.8A 0.3A / 0.2A 0.4A / 0.3A
Maximum power rating 12W 12W 90W 7.9W 147W 11.7W 16.4W
Idle power 1W 1.7W 4.1W 2.3W 5W 3.2W 8W
PoE power 64W Class 4 PoE 124W Class 4 PoE
Power supply External Power Adapter External Power Adapter External Power Adapter Internal Power Supply Internal Power Supply Internal Power Supply Internal Power Supply
Safety
  EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 3rd. Ed.

EN/IEC 60825- 1:2014 Class 1
EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 3rd. Ed

EN/IEC 60825- 1:2014 Class 1
EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 3rd. Ed

EN/IEC 60825- 1:2014 Class 1
EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 3rd. Ed

EN/IEC 60825- 1:2014 Class 1
EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 3rd. Ed

EN/IEC 60825- 1:2014 Class 1
EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 3rd. Ed

EN/IEC 60825- 1:2014 Class 1
EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 3rd. Ed

EN/IEC 60825- 1:2014 Class 1
Emissions
  EN 55032:2015/CISPR 32, Class B

FCC CFR 47 Part 15: 2018, Class B

CES-003, Class B

VCCI-32, Class B

CNS 13438, Class B

KS C 9832, Class B

AS/NZS CISPR 32, Class B
EN 55032:2015/CISPR 32, Class B

FCC CFR 47 Part 15: 2018, Class B

CES-003, Class B

VCCI-32, Class B

CNS 13438, Class B

KS C 9832, Class B

AS/NZS CISPR 32, Class B
EN 55032:2015/CISPR 32, Class B

FCC CFR 47 Part 15: 2018, Class B

CES-003, Class B

VCCI-32, Class B

CNS 13438, Class B

KS C 9832, Class B

AS/NZS CISPR 32, Class B
EN 55032:2015/CISPR 32, Class B

FCC CFR 47 Part 15: 2018, Class B

CES-003, Class B

VCCI-32, Class B

CNS 13438, Class B

KS C 9832, Class B

AS/NZS CISPR 32, Class B
EN 55032:2015/CISPR 32, Class B

FCC CFR 47 Part 15: 2018, Class B

CES-003, Class B

VCCI-32, Class B

CNS 13438, Class B

KS C 9832, Class B

AS/NZS CISPR 32, Class B
EN 55032:2015/CISPR 32, Class B

FCC CFR 47 Part 15: 2018, Class B

CES-003, Class B

VCCI-32, Class B

CNS 13438, Class B

KS C 9832, Class B

AS/NZS CISPR 32, Class B
EN 55032:2015/CISPR 32, Class B

FCC CFR 47 Part 15: 2018, Class B

CES-003, Class B

VCCI-32, Class B

CNS 13438, Class B

KS C 9832, Class B

AS/NZS CISPR 32, Class B
Immunity
Generic BS/EN 55035, CISPR 35, KS C 9835 BS/EN 55035, CISPR 35, KS C 9835 BS/EN 55035, CISPR 35, KS C 9835 BS/EN 55035, CISPR 35, KS C 9835 BS/EN 55035, CISPR 35, KS C 9835 BS/EN 55035, CISPR 35, KS C 9835 BS/EN 55035, CISPR 35, KS C 9835
EN EN 55035, CISPR 35 EN 55035, CISPR 35 EN 55035, CISPR 35 EN 55035, CISPR 35 EN 55035, CISPR 35 EN 55035, CISPR 35 EN 55035, CISPR 35
ESD EN/IEC 61000-4-2 EN/IEC 61000-4-2 EN/IEC 61000-4-2 EN/IEC 61000-4-2 EN/IEC 61000-4-2 EN/IEC 61000-4-2 EN/IEC 61000-4-2
Radiated EN/IEC 61000-4-3 EN/IEC 61000-4-3 EN/IEC 61000-4-3 EN/IEC 61000-4-3 EN/IEC 61000-4-3 EN/IEC 61000-4-3 EN/IEC 61000-4-3
EFT/Burst EN/IEC 61000-4-4 EN/IEC 61000-4-4 EN/IEC 61000-4-4 EN/IEC 61000-4-4 EN/IEC 61000-4-4 EN/IEC 61000-4-4 EN/IEC 61000-4-4
Surge EN/IEC 61000-4-5 EN/IEC 61000-4-5 EN/IEC 61000-4-5 EN/IEC 61000-4-5 EN/IEC 61000-4-5 EN/IEC 61000-4-5 EN/IEC 61000-4-5
Conducted EN/IEC 61000-4-6 EN/IEC 61000-4-6 EN/IEC 61000-4-6 EN/IEC 61000-4-6 EN/IEC 61000-4-6 EN/IEC 61000-4-6 EN/IEC 61000-4-6
Power frequency magnetic field EN/IEC 61000-4-8 EN/IEC 61000-4-8 EN/IEC 61000-4-8 EN/IEC 61000-4-8 EN/IEC 61000-4-8 EN/IEC 61000-4-8 EN/IEC 61000-4-8
Voltage dips and interruptions EN/IEC 61000-4-11 EN/IEC 61000-4-11 EN/IEC 61000-4-11 EN/IEC 61000-4-11 EN/IEC 61000-4-11 EN/IEC 61000-4-11 EN/IEC 61000-4-11
Harmonics EN/IEC 61000-3-2 EN/IEC 61000-3-2 EN/IEC 61000-3-2 EN/IEC 61000-3-2 EN/IEC 61000-3-2 EN/IEC 61000-3-2 EN/IEC 61000-3-2
Flicker EN /IEC 61000-3-3 EN /IEC 61000-3-3 EN /IEC 61000-3-3 EN /IEC 61000-3-3 EN /IEC 61000-3-3 EN /IEC 61000-3-3 EN /IEC 61000-3-3
Device Management
  Unmanaged Unmanaged Unmanaged Unmanaged Unmanaged Unmanaged Unmanaged
Mounting
Mounting positions and supported racking Supports table-top mounting

Supports wall-mounting with ports facing either up or down using base surface mounting holes

Supports undertable mounting using base surface mounting holes
Supports table-top mounting

Supports wall-mounting with ports facing either up or down using base surface mounting holes

Supports undertable mounting using base surface mounting holes
Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting using the brackets provided

Supports wallmounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided

Supports undertable mounting using the brackets provided

Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down
Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting using the brackets provided

Supports wallmounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided

Supports undertable mounting using the brackets provided

Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down
Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting using the brackets provided

Supports wallmounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided

Supports undertable mounting using the brackets provided

Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down
Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting using the brackets provided

Supports wallmounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided

Supports undertable mounting using the brackets provided

Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down
Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting using the brackets provided

Supports wallmounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided

Supports undertable mounting using the brackets provided

Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down
Transceivers
  Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)

Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)

It’s as easy as 1-2-3. Really.


icon-1

First things first: Prepare your workspace. Then, power up your access point or switch.

icon-2

As it powers up, download the mobile app. Create an account and configure your network when ready.

icon-3

Once you’re powered up and configured, you can connect. That’s it. Monitor and manage the rest from your phone.


More about the Aruba Instant On app.

Get the control you need to run your business remotely. Add devices and manage your site—all from the palm of your hand. No licensing or subscription fees required.


Simplified smart mesh setup.

Add additional access points and extend your network with simple mesh setup.

Guided device setup.

Add access points and switches to your network with the integrated installation wizard in the Instant On app.

Hassle-free deployment.

Let Aruba Instant On serve as the primary Wi-Fi router to your network. Just connect your access point to your modem and you’re all set.


App classification control & visibility.

Get a simplified view of the top 5 apps used in the network. Plus, block specific application categories.

Multi-network management.

Create and manage separate guest and employee networks with ease.

Bandwidth limits.

Stop bandwidth hogs. Improve your wireless network performance.


Client visibility and blocking.

Get visibility into your connected devices. Block specific, unwanted clients from accessing your network.

Wired and wireless access control list.

Prevent malicious traffic from entering your network. Restricting user access to specific websites or subnets.


Access Aruba Instant On on the web.

Same easy-to-use features. Bigger screen. Manage your network from the browser of your choice.

web-portal

The key features of Aruba Instant On.

Auto-Optimized Radios

Get optimized network performance—even in the most congested environments. Automatically go the best 802.11 channel and transmitting power for each AP in its current RF environment.

Advanced WPA3 Support

Secure your network and provide access using a shared password. Choose either WPA2 security standards or the more advanced WPA3 security standards from your mobile app.

Simplified Troubleshooting

Take advantage of the enterprise-grade Bluetooth modules found in each of our access points. Troubleshoot any network issues you may have straight from our mobile app.

Automatic Band Selection

Get the best network band at any given time. Or, manually choose 2.4GHz, 5Ghz, or both. Enable and disable channels with a single click.

Documentation:

Aruba 1430 Switches Series Datasheet (.PDF)

Pricing Notes:

Aruba Networks Products
Aruba Instant On Switches
Aruba Instant On 1430 24G Switch
#R8R49A#ABA
List Price: $201.00
Our Price: $179.99
Aruba Support Options
Aruba 3 Year Foundation Care Next Business Day Exchange 1430 24G Switch Service
#H36QCE
Get a Quote!
Aruba 5 Year Foundation Care Next Business Day Exchange 1430 24G Switch Service
#H36QDE
Get a Quote!
email subscribe

Enjoy Exclusive Weekly Deals from Virtual Graffiti
