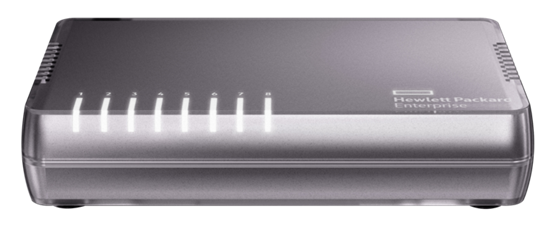

HPE OfficeConnect 1405 8G v3 Switch #JH408A
Fixed Port Unmanaged Ethernet Switches

Overview:

What's New

• New entry level 5G- and 8G- port switches for small offices.
• Plug and play, no configuration required.
• Quality of Service (QoS) and flow control for improved network efficiency.
• Energy Efficient Ethernet for low power consumption.
• 3 year warranty with 24X7 phone support for 90 days.

Product overview

The HPE OfficeConnect 1405 Switch Series is a plug-and-play unmanaged fixed-port Layer 2 switch designed for small offices. These switches are preconfigured with connections using lowcost Ethernet copper cabling. They are Class B certified, energy efficient and quiet. They support administration-friendly features such as auto-negotiation. Designed for high reliability, long life, and low power consumption, they are ideal for businesses concerned with total cost of ownership.

Key Features:

Ease of use

The HPE OfficeConnect 1405 Switch Series offers unmanaged plug-and-play simplicity.

A comprehensive LED display with per-port indicators provides an at-a-glance view of status, activity, speed, and full duplex operation.

Flow control helps to provide reliable communications during full-duplex operation.

Connectivity and Performance

The HPE OfficeConnect 1405 Switch Series with Auto-MDIX automatically adjusts to straight-through or crossover cables on all 10/100 and 10/100/1000 ports.

Jumbo packet support for Gigabit Ethernet ports only offers up to 9216-byte frame size to improve performance of larger data transfers.

Half/Full duplex auto-negotiating capability on every port doubles the throughput of every port.

Quality of Service (QoS)

The HPE OfficeConnect 1405 Switch Series has IEEE 802.1p prioritization delivering data to devices based on priority and type of traffic.

The switches support energy efficient Ethernet.

Specifications:

Product Dimensions (metric)	15.49 x 9.14 x 3.56 cm
Product Dimensions (imperial)	6.1 x 3.6 x 1.4 in
Product Differentiator (long)	Great desktop 8-port Gigabit switch for your office or home network. This model has 8x 10/100/1000 ports with an external power adapter.
Power Consumption Description	4.5 W (maximum)
Input Voltage	100 - 240 VAC, rated
External I/O Ports	(8) RJ-45 autosensing 10/100/1000 ports
Latency	100 Mb Latency: < 3 µs 1000 Mb Latency: < 2.6 µs
Routing/switching Capacity	16 Gbps
Memory and Processor	Packet buffer size: 1.5 Mb
Weight (metric)	0.23 kg
Weight (imperial)	0.5 lb
Throughput	up to 11.8 Mpps
Input Voltage	100 - 240 VAC, rated

Documentation:

Download the HPE OfficeConnect 1405 Switch Series Datasheet (PDF).
